The National Instruments PXI-7344 is a high-performance, 4-axis motion controller designed for the PXI (PCI eXtensions for Instrumentation) platform, delivering deterministic, real-time control of stepper and servo motors in demanding automation, test, and research applications. As part of NI’s widely adopted NI-Motion product line, the PXI-7344 integrates seamlessly with LabVIEW, Measurement & Automation Explorer (MAX), and other NI software tools, enabling rapid development of complex motion sequences such as point-to-point moves, contouring, electronic gearing, and coordinated multi-axis trajectories.

Positioned as a mid-range controller in the 73xx series, the National Instruments PXI-7344 supports both open-loop (stepper) and closed-loop (servo with encoder feedback) configurations via its flexible 68-pin VHDCI I/O connector. Each axis features independent trajectory generators, allowing simultaneous execution of different motion profiles—critical for applications like pick-and-place robotics, optical alignment stages, or automated functional test systems. Despite being a legacy product (discontinued but still widely deployed), the PXI-7344 remains a cornerstone in labs and production floors where precision, synchronization, and software integration outweigh the need for the latest hardware.

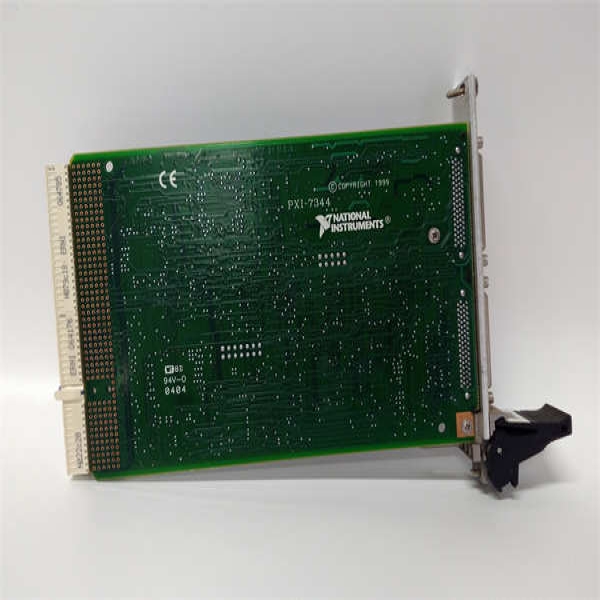

NI PXI-7344

Technical Specifications

Main Features and Advantages

High-precision multi-axis coordination: The National Instruments PXI-7344 excels in applications requiring tightly synchronized motion across multiple axes. Its hardware-based trajectory generator ensures sub-millisecond timing accuracy, enabling smooth contouring paths for XY tables, gantries, or robotic arms. Unlike PC-based soft-motion solutions, the PXI-7344 offloads motion calculations from the host CPU, guaranteeing deterministic performance even under heavy data acquisition loads.

Flexible motor compatibility and feedback options: Whether driving cost-effective stepper motors or high-dynamic servo systems, the PXI-7344 adapts via configurable I/O mapping. Each axis accepts quadrature encoder feedback for position verification and closed-loop correction, while analog outputs support velocity-mode servo drives. This versatility makes the National Instruments PXI-7344 ideal for retrofitting legacy equipment or building modular test rigs that evolve over time.

Deep integration with NI ecosystem: One of the strongest advantages of the PXI-7344 is its native compatibility with LabVIEW’s graphical programming environment. Engineers can design, simulate, and deploy motion sequences in hours—not weeks—using intuitive function blocks for homing, jogging, linear/circular interpolation, and error handling. Even though NI has shifted focus to newer platforms like CompactRIO and FlexRIO, archived drivers and community support ensure the PXI-7344 remains viable for maintenance and small-scale deployments.

Application Field

In semiconductor packaging lines, the National Instruments PXI-7344 controls precision die-bonding stages that require micron-level repeatability and coordinated Z-axis force control—tasks made possible by its tight integration with vision systems via the same PXI chassis. Within aerospace structural test labs, the PXI-7344 drives hydraulic actuators in fatigue-testing rigs, synchronizing load application with strain gauge data acquisition at precise intervals. Medical device manufacturers use the PXI-7344 to automate catheter pull-test stations, where consistent speed and force profiles are critical for regulatory compliance. Academic research groups leverage the National Instruments PXI-7344 in haptics and biomechanics experiments, combining motion control with real-time force feedback in human-in-the-loop simulations. Even in automotive durability testing, the PXI-7344 operates window-lift mechanisms or seat-adjustment cycles thousands of times, logging performance drift over extended life-cycle validation.

Related Products

PXI-7334: 2-axis version of the same controller family, lower cost for simpler applications
PXI-7358: 8-axis high-end motion controller with enhanced trajectory memory and faster loop rates
UMI-7774: Universal Motion Interface terminal block for connecting PXI-7344 to motors and encoders
NI-Motion Driver Set: Legacy software package required for PXI-7344 operation (available in NI archives)
PXI-6259: High-speed M Series DAQ module often used alongside PXI-7344 for sensor feedback
SCXI-1124: Analog output module for interfacing with older servo drives requiring ±10 V signals
LabVIEW Real-Time Module: Enables deterministic execution of motion sequences on PXI RT targets

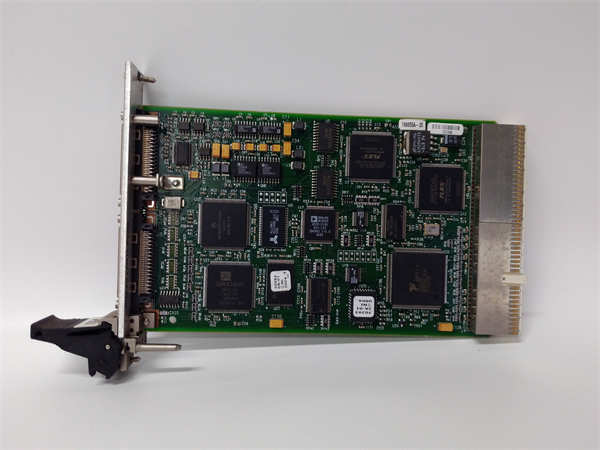

NI PXI-7344

Installation and Maintenance

Pre-installation preparation: Before installing the National Instruments PXI-7344, verify compatibility with your PXI chassis (must support hybrid slots if using older models) and install the correct version of NI-Motion drivers (typically v8.x or earlier). Use shielded VHDCI cables and proper terminal blocks (e.g., UMI-7774) to connect motors and encoders, ensuring ground loops are avoided by single-point grounding. Configure axis parameters—such as counts per revolution, acceleration limits, and home switch logic—using Measurement & Automation Explorer (MAX) before deploying LabVIEW code.

Maintenance recommendations: The PXI-7344 has no moving parts and requires minimal maintenance, but periodic inspection of I/O connectors for oxidation or loose pins is advised, especially in high-vibration environments. Monitor for excessive motor heating or missed steps, which may indicate mechanical binding rather than controller fault. Since the National Instruments PXI-7344 is a discontinued product, maintain spare units in ESD-safe storage (15–30°C,<60>
