Description

The GE DS200TBQCG1AAA is a high-reliability digital terminal board (TBQC series) designed for General Electric’s Speedtronic™ Mark V turbine control system. As a key interface between field-mounted discrete devices—such as limit switches, pressure switches, relay contacts, and solenoid valves—and the Mark V’s core digital I/O processors (e.g., DS200TCCG or DS200TBCG), the GE DS200TBQCG1AAA provides secure, noise-immune termination for critical on/off signals used in protection, sequencing, and status monitoring.

Housed in the Mark V I/O core rack, the GE DS200TBQCG1AAA features robust screw-terminal blocks that accept standard control wiring, enabling easy connection of hundreds of binary field points without soldering or crimping. It supports both dry contact inputs (for switch status) and wetted outputs (to drive relays or indicator lamps), with built-in optical isolation to prevent ground loops and transient interference from compromising controller integrity. In Triple Modular Redundant (TMR) configurations, multiple DS200TBQCG1AAA boards operate in parallel across redundant lanes, ensuring fault-tolerant signal acquisition for safety-critical functions like emergency shutdown, fire detection, and lube oil pump status.

Widely deployed across GE Frame 5, 6B, 7EA, 7FA, and 9E turbines, the GE DS200TBQCG1AAA remains a cornerstone of dependable digital I/O infrastructure in combined-cycle plants, cogeneration facilities, and mechanical drive applications—where decades of field-proven performance underscore its industrial-grade durability.

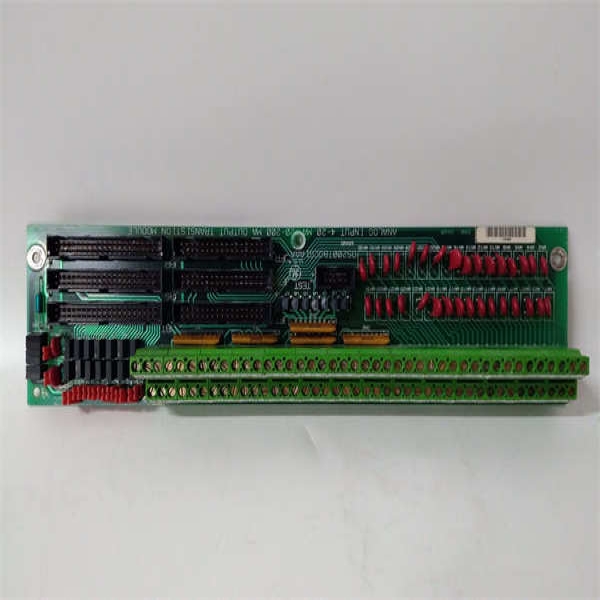

GE DS200TBQCG1AAA

Technical Specifications

Main Features and Advantages

Robust field wiring interface for industrial reliability:
The DS200TBQCG1AAA eliminates fragile connectors in favor of industrial-grade screw terminals, ensuring vibration-resistant connections in turbine enclosures subject to constant mechanical stress. Each terminal is clearly labeled per GE I/O standards, simplifying troubleshooting and reducing wiring errors during commissioning or maintenance.

Optical isolation for noise immunity and safety:
Every discrete channel on the DS200TBQCG1AAA is electrically isolated from the Mark V backplane using optocouplers, preventing ground potential differences, lightning-induced surges, or EMI from corrupting control logic. This isolation is critical for maintaining signal integrity in high-power environments near generators and transformers.

Full compatibility with TMR redundancy architecture:
In Mark V TMR systems, the DS200TBQCG1AAA is replicated across all three control lanes, with each copy feeding identical status data to its respective CPU (DS200SDCCG1AGD). The voter logic then validates consistency before acting—ensuring that a single wiring fault or contact bounce doesn’t trigger a false trip.

Modular design for rapid replacement:
Unlike hardwired panels, the DS200TBQCG1AAA allows technicians to replace a failed terminal board in minutes without disconnecting field wires. The entire module unplugs from the backplane while terminals remain wired—a major advantage during forced outages or emergency repairs.

Long-term support for legacy infrastructure:
Despite being part of the Mark V platform (introduced in the 1990s), the DS200TBQCG1AAA remains widely stocked and supported due to the global installed base of GE turbines. It integrates seamlessly into hybrid upgrade paths (e.g., Mark V to Mark VIe), preserving existing field cabling investments.

Application Field

The GE DS200TBQCG1AAA is essential in power generation and industrial drive applications where reliable discrete signal handling is non-negotiable. In combined-cycle power plants, it terminates signals from:

• Generator circuit breaker auxiliary contacts

• Turbine trip solenoid feedback

• Lube oil and hydraulic pressure switches

• Fire/gas detection system relays

• Cooling fan and pump status indicators

During turbine startup sequences, the GE DS200TBQCG1AAA confirms that permissive conditions—such as turning gear disengagement or purge valve closure—are met before allowing ignition. In emergency scenarios, it provides the final confirmation of overspeed trip activation or emergency vent valve opening to the control system.

Beyond utilities, the GE DS200TBQCG1AAA is used in oil & gas compression stations, where GE LM2500 or Frame 7 turbines drive pipeline compressors. Here, it monitors surge control valve positions, seal gas pressure switches, and vibration shutdown contacts. During life-extension retrofits, many operators retain the DS200TBQCG1AAA while upgrading only the controller layer—leveraging its proven reliability to reduce project risk and cost. Across all these roles, the GE DS200TBQCG1AAA ensures that binary field intelligence reaches the turbine brain accurately and without delay.

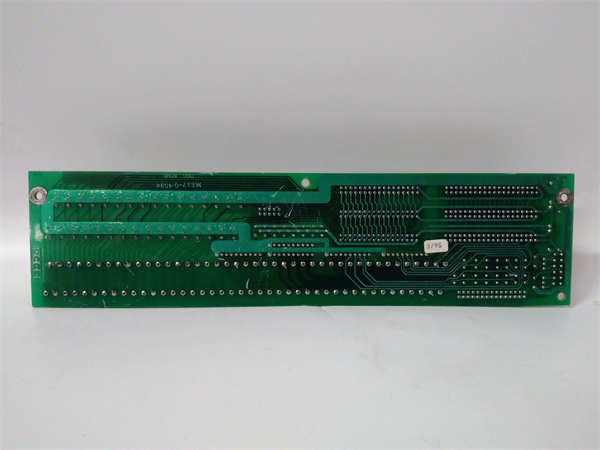

GE DS200TBQCG1AAA

Related Products

• DS200TCCG1A: Digital input processor card that interfaces withDS200TBQCG1AAA via backplane

• DS200TBCG1A: Digital output controller often paired withDS200TBQCG1AAA for relay driving

• DS200SDCCG1AGD: Main CPU that executes logic based on discrete inputs fromDS200TBQCG1AAA

• DS200SSRAG1A: Solid-state relay output board used for high-speed trip commands

• DS200CTBAG1ADD: Analog terminal board complementingDS200TBQCG1AAA in mixed-signal racks

• DS200PCCAG1A: Power supply module providing conditioned voltages to I/O chassis

• DS215UCVAG1A: Mark VIe controller used in hybrid systems alongside legacyDS200TBQCG1AAA

• Mark V I/O Rack (e.g., RST, CST): Physical enclosure housingDS200TBQCG1AAA and companion modules
