Description

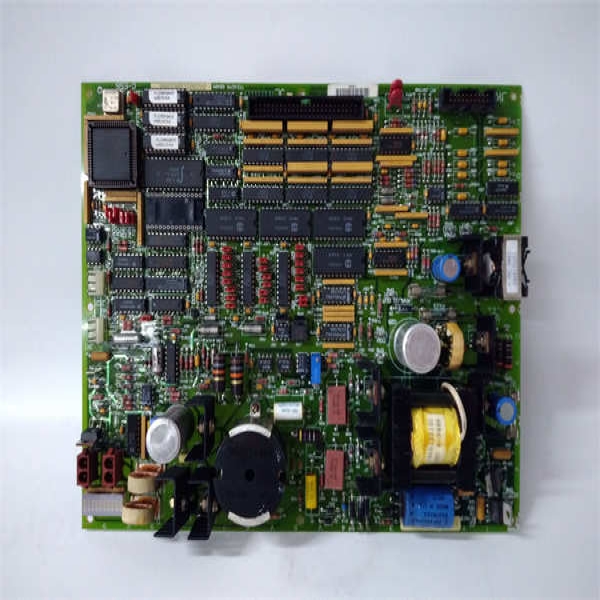

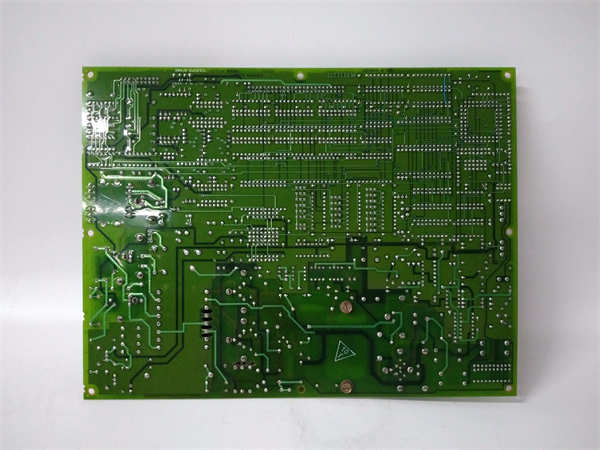

The GE DS200TCEAG1BNE is a high-reliability analog input/output interface module designed for use within GE’s Speedtronic™ turbine control systems, particularly the Mark V, Mark VI, and Mark VIe platforms. Paired with its dedicated terminal board, the GE DS215TCEAG1BZZ01A, this duo forms a complete I/O subsystem that conditions, isolates, and routes critical field signals—such as thermocouples, RTDs, 4–20 mA transmitters, and contact closures—between the turbine’s sensors/actuators and the central control processors. The GE DS200TCEAG1BNE serves as the intelligent signal-processing card, while the GE DS215TCEAG1BZZ01A provides secure, screw-terminal field wiring access with built-in surge protection and signal labeling.

As part of the TCEA (Terminal Card Enhanced Analog) family, the GE DS200TCEAG1BNE delivers precision signal conditioning with high common-mode rejection and galvanic isolation, ensuring accurate measurement even in electrically noisy power plant environments. Its modular design allows for hot-swappable maintenance in redundant configurations, minimizing downtime during outages. The GE DS215TCEAG1BZZ01A terminal board features clearly marked terminals, strain relief clamps, and compatibility with standard DIN rail mounting, enabling rapid installation and troubleshooting. Together, these components are foundational to reliable turbine startup, synchronization, load control, and emergency shutdown sequences across combined-cycle, simple-cycle, and cogeneration facilities worldwide.

DS200TCEAG1BNE DS215TCEAG1BZZ01A

Technical Specifications

Main Features and Advantages

Precision signal integrity for mission-critical control: The GE DS200TCEAG1BNE employs high-grade analog front-end circuitry with low-drift amplifiers and digital filtering to ensure turbine control algorithms receive clean, accurate data from temperature, pressure, and position sensors. This precision is essential for combustion tuning, vibration monitoring, and speed regulation—where even minor signal errors can trigger false trips or efficiency loss.

Robust industrial design for power plant environments: Both the GE DS200TCEAG1BNE and GE DS215TCEAG1BZZ01A are engineered to withstand high EMI, temperature swings, and mechanical vibration typical in gas turbine halls. The terminal board includes transient voltage suppression on all inputs, protecting the sensitive electronics of the GE DS200TCEAG1BNE from lightning-induced surges or switching transients.

Seamless integration with legacy and modern GE platforms: Despite being originally developed for Mark V, the TCEA architecture remains backward and forward compatible. The GE DS200TCEAG1BNE can be deployed in hybrid Mark VIe cabinets using adapter frames, allowing plants to extend the life of existing I/O while migrating control logic to newer controllers—reducing capital expenditure during upgrades.

Hot-swap capable for zero-downtime maintenance: In redundant I/O configurations, the GE DS200TCEAG1BNE supports online replacement without powering down the chassis. Technicians can swap a faulty module while the turbine remains online, a critical advantage during peak-demand periods. The GE DS215TCEAG1BZZ01A’s removable terminal blocks further simplify this process—field wiring stays intact while only the electronics card is replaced.

Comprehensive diagnostics and configuration flexibility: Each channel on the GE DS200TCEAG1BNE can be individually configured via software (ToolboxST or legacy Mark V tools) for sensor type, range, and alarm thresholds. Built-in LED indicators show power status, communication health, and fault conditions per channel, accelerating troubleshooting during commissioning or outage support.

Application Field

The GE DS200TCEAG1BNE and GE DS215TCEAG1BZZ01A are predominantly used in fossil-fueled and aeroderivative gas turbine control systems across utility-scale power generation, industrial cogeneration, and oil & gas compression applications. In a combined-cycle power plant, they interface with exhaust thermocouples, lube oil pressure transmitters, and compressor inlet guide vane position feedback—providing real-time data to the Speedtronic controller for combustion stability and emissions compliance. Offshore platforms deploy this I/O pair to monitor flare gas turbines, where reliability under salt-laden, high-humidity conditions is non-negotiable. District heating facilities use the GE DS200TCEAG1BNE to manage steam extraction valves and condenser vacuum sensors in cogeneration mode. Additionally, independent power producers (IPPs) performing life-extension retrofits often retain their Mark V I/O chassis but replace aging cards with newly tested GE DS200TCEAG1BNE units to avoid obsolescence risks. Because the TCEA platform supports both analog and discrete I/O variants, the same chassis can host multiple DS200TCEAG1BNE modules alongside digital counterparts (e.g., DS200TCDA), creating a unified, scalable I/O architecture for complex turbine-generator sets.

DS200TCEAG1BNE DS215TCEAG1BZZ01A

Related Products

DS200TCDA: Digital I/O counterpart to the DS200TCEAG1BNE, handling contact inputs and relay outputs for valve and breaker control.
DS215TCDAH1AZZ01A: Terminal board specifically designed for the TCDA digital module, with similar mechanical layout.
DS200TCCAF1B: Core controller card (TCCA) that communicates with TCEA modules via the backplane in Mark V systems.
IC695PBM300: Profibus module sometimes used in Mark VIe hybrid I/O expansions (alternative architecture).
DS200SSRAG1A: Solid-state relay output module for high-speed turbine trip circuits, often installed in the same chassis.
DS215SSRAG1AZZ01A: Terminal board for SSRAG1A, featuring high-current terminals and arc suppression.
Mark VIe I/O Pack (e.g., IS200TVIBH1B): Modern equivalent in Mark VIe, using distributed I/O over Ethernet instead of centralized TCEA.
ToolboxST: GE’s current engineering software for configuring and diagnosing Mark VIe and hybrid Mark V/VIe systems.
