The HONEYWELL 05704-A-0121 is a high-reliability, redundant-capable 24 VDC power supply module engineered specifically for Honeywell’s Total Plant Solution (TPS) and Experion PKS distributed control systems. Designed to provide stable, regulated power to I/O modules mounted in standard PM or SM series I/O carriers, this unit supports N+1 redundancy configurations, ensuring continuous operation even if one power supply fails—a critical requirement in safety-instrumented and continuous-process environments.
Unlike standard single-ended power supplies, the HONEYWELL 05704-A-0121 features built-in diode ORing circuitry that enables seamless, bumpless switchover between redundant units without disrupting field I/O communication or controller logic. It delivers up to 10 A of continuous current at 24 VDC, sufficient to power a fully loaded I/O chassis containing analog, digital, and specialty modules like the 05701-A series. Its hot-swappable design allows technicians to replace a faulty unit during live operation—eliminating costly plant shutdowns.
As part of Honeywell’s mature but still widely supported I/O infrastructure, the HONEYWELL 05704-A-0121 plays a foundational role in maintaining system availability across industries such as oil & gas, power generation, and pharmaceuticals, where unplanned downtime can result in millions in lost revenue or regulatory penalties.

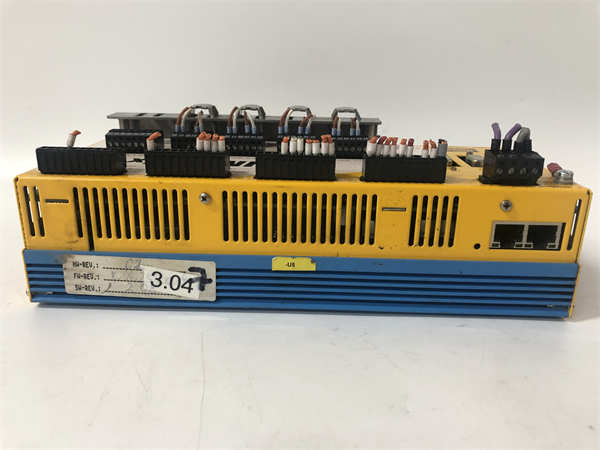

HONEYWELL 05704-A-0121
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | 05704-A-0121 |
| Manufacturer | HONEYWELL |
| Product Type | Redundant 24 VDC I/O Power Supply Module |
| Output Voltage | 24 VDC nominal (adjustable ±5%) |
| Maximum Output Current | 10 A continuous |
| Input Voltage Range | 85–264 VAC, 47–63 Hz (universal input) |
| Redundancy Support | Yes – N+1 via diode ORing backplane |
| Hot-Swappable | Yes – with compatible TPS I/O chassis |
| Efficiency | >85% typical |
| Overload Protection | Fold-back current limiting with auto-recovery |
| Overvoltage Protection | Yes – crowbar or clamp circuit (as per design) |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Cooling | Convection-cooled (no internal fan) |
| Mounting | Slide-in module for Honeywell PM/SM I/O carriers |
| Certifications | CE, UL 61010-1, CSA; compliant with IEC 61000-4 EMC standards |
Main Features and Advantages
True N+1 redundancy with automatic failover:
Multiple HONEYWELL 05704-A-0121 units can be installed in parallel within the same I/O chassis. If one fails, the others instantly assume the full load without voltage sag or communication loss—ensuring uninterrupted data flow between field devices and TPS controllers.
High current capacity for dense I/O racks:
With 10 A output, a single HONEYWELL 05704-A-0121 can power a fully populated carrier holding up to 16 high-density modules (e.g., 05701-A-0325 DI, 05701-A-0351 AI). In redundant setups, two units provide headroom for future expansion and transient load spikes.
Hot-swap capability for zero-downtime maintenance:
Technicians can remove and replace a failed HONEYWELL 05704-A-0121 while the system remains online—critical for 24/7 operations like LNG terminals or hospital steam plants where even brief outages are unacceptable.
Robust protection and reliability:
The module includes comprehensive protection against short circuits, overloads, overvoltage, and thermal faults. Its convection-cooled design (no fans) eliminates moving parts, enhancing MTBF (Mean Time Between Failures)—often exceeding 200,000 hours in typical industrial environments.
Application Field
The HONEYWELL 05704-A-0121 is essential wherever continuous, fault-tolerant power is required for process control I/O:
Oil Refineries & Petrochemical Plants: Powers I/O racks monitoring reactor temperatures, valve positions, and flare systems—where a power glitch could trigger a costly emergency shutdown.
Thermal & Nuclear Power Stations: Supplies clean, redundant power to turbine protection I/O, ensuring generator trip logic remains active during grid disturbances.
Pharmaceutical & Biotech Facilities: Maintains power integrity for sterilization autoclaves and batch reactors governed by strict FDA compliance—where data continuity is non-negotiable.
Water/Wastewater Treatment: Keeps remote lift station I/O operational during monsoons or grid instability, preventing sewage overflows.
Mining & Metals: Supports harsh-environment I/O in smelters or concentrators, where dust and heat demand fanless, ruggedized power solutions.
In all cases, the HONEYWELL 05704-A-0121 acts as the silent guardian of system availability—ensuring that even if one power source fails, control never falters.
HONEYWELL 05704-A-0121
Related Products
HONEYWELL 51401234-150: Alternate part number or enhanced version of redundant I/O power supply (verify compatibility)
HONEYWELL 05704-A-0120: Non-redundant or lower-current variant (if applicable)
HONEYWELL 51304445-100: Standard PM/SM I/O carrier – requires05704-A-0121 for power
HONEYWELL 05701-A-0325 / -0326 / -0351: High-density I/O modules powered by05704-A-0121
HONEYWELL 51103387-200: Network Interface Module (NIM) – also relies on stable I/O power
HONEYWELL FTEB (Fieldbus Terminal Expansion Box): May use similar power architecture in extended I/O networks
