Description

The National Instruments PXI-6608 is a high-performance counter/timer module engineered for precision timing, frequency, position, and event-based measurements in industrial automation, test, and embedded control systems. As part of NI’s versatile PXI platform, the PXI-6608 integrates eight independent 32-bit general-purpose counters—each capable of performing multiple functions simultaneously—including edge counting, period/frequency measurement, pulse width analysis, two-signal edge separation, and quadrature encoder position tracking with Z-index support. Designed for applications demanding deterministic timing and microsecond-level resolution, the NI PXI-6608 (185745H-02) leverages a stable internal timebase (up to 20 MHz) and flexible external clocking options to deliver lab-grade accuracy in rugged industrial environments.

Positioned as a cornerstone for motion control validation, rotating machinery diagnostics, and high-speed event logging, the National Instruments PXI-6608 excels where standard digital I/O modules fall short. Its ability to directly interface with incremental encoders, tachometers, flow meters, proximity sensors, and PWM signals—without requiring external signal conditioning—makes it indispensable in automotive powertrain testing, semiconductor handler synchronization, and aerospace actuator feedback loops. Despite being succeeded by newer PXI Express timing modules, the PXI-6608 remains widely deployed in certified test systems due to its proven reliability, software compatibility with NI-DAQmx and LabVIEW, and seamless integration into legacy PXI chassis.

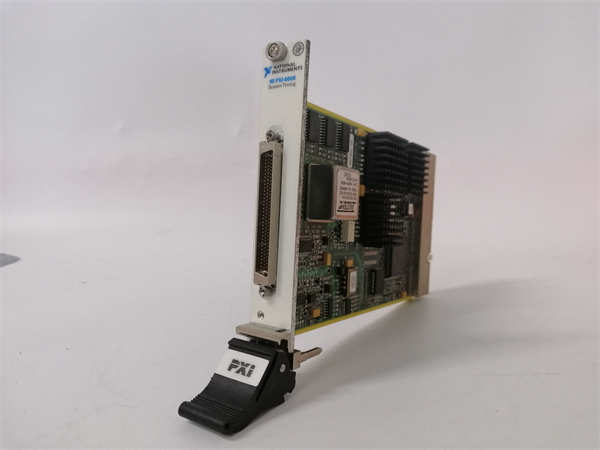

PXI-6608 185745H-02

Technical Specifications

Main Features and Advantages

Eight fully independent 32-bit counters with concurrent operation: Unlike shared-resource timer modules, the NI PXI-6608 provides eight dedicated counters that can each run different measurement tasks simultaneously—such as one channel tracking motor position via quadrature encoder, another measuring tachometer frequency, and a third capturing pulse width from a solenoid driver—all without resource contention or timing jitter. This parallelism is critical in multi-axis motion systems or complex test sequences requiring synchronized event capture.

Native quadrature encoder interface with Z-index homing: The PXI-6608 supports industry-standard incremental encoders with A, B, and Z (index) signals, automatically handling direction detection and position accumulation using x1, x2, or x4 decoding. The Z-phase input enables precise homing routines by resetting or latching position at a known mechanical reference—essential for CNC calibration, robotic arm initialization, and linear stage repeatability testing.

Flexible timing architectures with high-resolution measurement: With a 20 MHz internal timebase (50 ns resolution), the NI PXI-6608 can accurately measure frequencies up to 10 MHz and periods down to 100 ns. External clock inputs allow synchronization to system-wide triggers or custom timebases for ultra-high-resolution applications (e.g., laser pulse timing). Advanced modes like two-edge separation enable measurement of time intervals between unrelated events—useful in combustion analysis or latency benchmarking.

Robust I/O design for industrial deployment: All counter inputs on the PXI-6608 feature ±20 V overvoltage protection and 5 V-tolerant CMOS/TTL thresholds, ensuring reliable operation even with noisy sensor signals or miswired connections. When paired with NI’s shielded SH68-C68-S cable and breakout accessories (e.g., CB-68LP), the module maintains signal integrity in EMI-heavy environments such as motor test cells or power electronics labs.

Application Field

In automotive powertrain development, the NI PXI-6608 captures crankshaft and camshaft position from high-resolution encoders during engine dynamometer tests, while simultaneously measuring fuel injector pulse widths and ignition coil dwell times—enabling combustion phasing analysis and valve timing validation. Its deterministic timing ensures sub-microsecond correlation between mechanical and electrical events.

Within semiconductor manufacturing, the PXI-6608 synchronizes wafer handler movements with process tool triggers by monitoring encoder feedback from linear motors and verifying step response via pulse-count validation. The module’s ability to detect missed steps or position drift in real time enhances yield and reduces unscheduled maintenance.

In aerospace actuator testing, the NI PXI-6608 logs rotary position from dual-redundant encoders on flight control surfaces, measures hydraulic valve response times, and validates limit-switch activation sequences under thermal cycling. Its compatibility with MIL-STD sensor interfaces and long-term stability make it suitable for DO-160 environmental qualification rigs.

For academic and government labs maintaining legacy PXI instrumentation, the NI PXI-6608 (185745H-02) serves as a reference-grade timing backbone for physics experiments, particle detector gating, or radar pulse characterization—where software-defined counter flexibility and hardware-level determinism are non-negotiable.

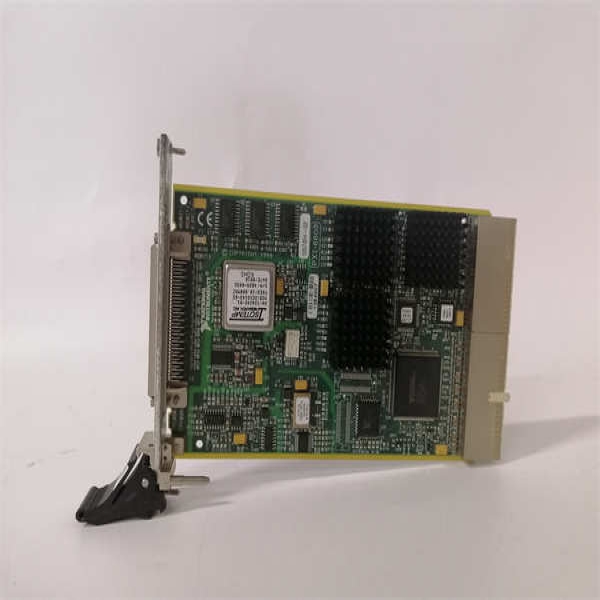

PXI-6608 185745H-02

Related Products

PXI-6602: Predecessor with 8 counters but only 8 MHz max timebase and no Z-index support
PXIe-6612: PXI Express successor—8 counters, 100 MHz timebase, enhanced encoder features
PCI-6608: PCI bus version of the same functionality for non-PXI systems
SH68-C68-S: Shielded 68-pin VHDCI cable required for PXI-6608 connectivity
CB-68LP: Screw-terminal breakout box for easy field wiring to PXI-6608 inputs
NI 9401: CompactRIO C Series module offering 4 high-speed counters for distributed timing
PXI-6653: IEEE 1588 Precision Time Protocol (PTP) module for network-synchronized timing
SCXI-1126: SCXI-based isolated frequency measurement module for high-noise environments
