Description

The T9402 ICS TRIPLEX is a 32-channel discrete (digital) input module designed for use in Triconex Triple-Modular Redundant (TMR) safety instrumented systems (SIS). Manufactured by ICS Triplex (now part of Schneider Electric), the T9402 provides highly reliable, fault-tolerant acquisition of on/off signals from field devices such as pushbuttons, limit switches, pressure switches, and relay contacts—commonly used in Emergency Shutdown (ESD), Fire & Gas (F&G), and process interlock applications.

Each of the 32 channels operates independently with 24 V DC nominal sensing, featuring built-in debouncing, surge suppression, and open-wire detection to ensure signal integrity even in electrically noisy industrial environments. The module leverages Triconex’s patented TMR architecture: every input signal is simultaneously processed by three independent microprocessors, and a voting mechanism ensures correct operation even if one channel fails—delivering zero undetected failures.

The T9402 ICS TRIPLEX supports hot-swappable installation, allowing replacement without shutting down the safety controller. It communicates real-time diagnostics (e.g., channel faults, power issues) to the Triconex main processor via the backplane and integrates seamlessly into TriStation 1131 engineering software for configuration and troubleshooting.

Certified to IEC 61508 SIL 3, ATEX, and UL/cUL, the T9402 is trusted in the world’s most demanding safety-critical industries.

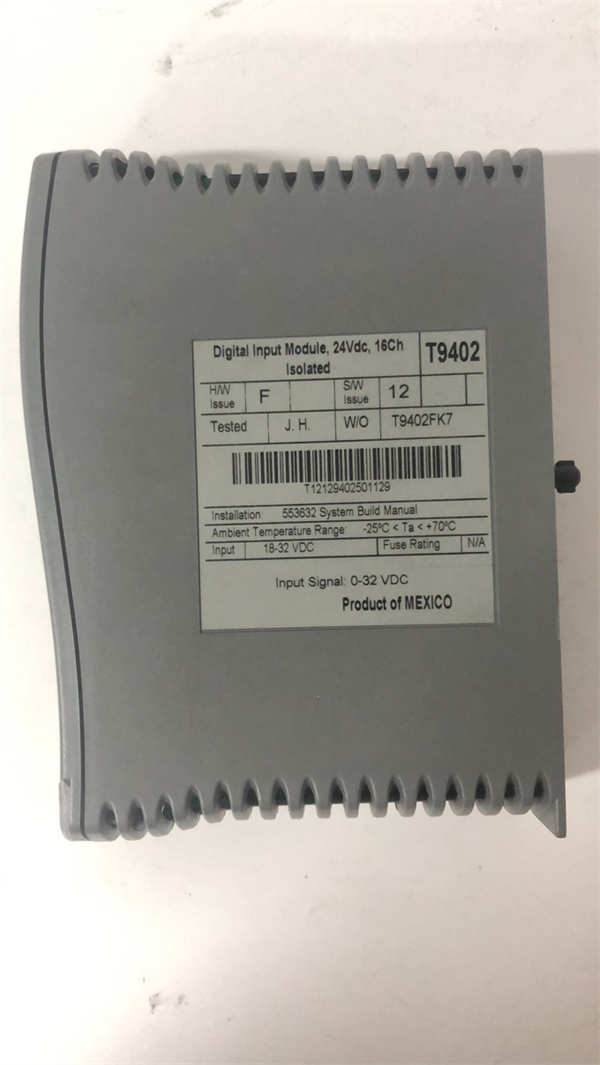

T9402 ICS TRIPLEX

Technical Specifications

Main Features and Advantages

✅ True TMR Architecture – Each input is read by three independent circuits; system tolerates single-point failures without spurious trips.
✅ 32 High-Density Inputs – Maximizes I/O per slot, reducing chassis count and panel space in large safety systems.
✅ Advanced Diagnostics – Detects open wires, short circuits, and marginal signal levels before they cause failures.
✅ Field-Proven Reliability – Deployed in thousands of safety systems worldwide with >99.999% uptime.
✅ Seamless Engineering Integration – Fully supported in TriStation 1131 for configuration, simulation, and online monitoring.
✅ Robust Industrial Design – Protected against EMI, surges (IEC 61000-4-5), and ground loops.

Application Field

The T9402 ICS TRIPLEX is widely used in:

• Oil & Gas Platforms: Monitoring wellhead shutdown valves, gas detector alarms, and fire pump status.

• Refineries & Petrochemical Plants: Interfacing with pressure/temperature switches in reactor protection systems.

• LNG Terminals: Providing input signals for cryogenic valve position feedback and leak detection.

• Power Plants: Reading turbine trip buttons, generator breaker status, and cooling system interlocks.

• Chemical Processing: Ensuring safe sequencing in batch reactors and storage tank farms.

Related Products

• T9412 ICS Triplex– 16-channel isolated discrete input module (for higher isolation needs)

• T9422 / T9432– Discrete output modules (16/32 ch) for driving solenoids, relays, and alarms

• T9522– Analog input module (16 ch, 4–20 mA) for continuous process variable monitoring

• Triconex Main Processor (e.g., 3503E, 3703E)– Central logic solver powered by TMR architecture

• TriStation 1131– Official engineering software for programming and diagnostics

• T9110– Redundant power supply module that powers the chassis containing T9402

• Schneider Electric EcoStruxure Triconex– Modernized platform with enhanced cybersecurity
