The T9432 ICS TRIPLEX is a 32-channel discrete (digital) output module engineered for Triconex Triple-Modular Redundant (TMR) safety instrumented systems (SIS). Developed by ICS Triplex (now part of Schneider Electric), the T9432 provides highly dependable, fault-tolerant control signals to field devices such as solenoid valves, relays, motor starters, alarms, and shutdown actuators—commonly used in Emergency Shutdown (ESD), Fire & Gas (F&G), and process interlock systems.
Operating with a 24 V DC nominal sinking output configuration, each of the 32 channels can switch up to 100 mA per point (with group current limits) and features individual short-circuit protection, open-wire detection, and LED status indicators. Thanks to Triconex’s patented TMR architecture, every output command is generated by three independent processors and voted upon before being sent to the field—ensuring that a single hardware fault cannot cause a dangerous spurious trip or fail-to-act condition.
The T9432 ICS TRIPLEX supports hot-swappable replacement, enabling maintenance without interrupting safety system operation. It integrates fully with TriStation 1131 engineering software for configuration, forced output testing, and real-time diagnostics. Certified to IEC 61508 SIL 3, ATEX, and UL/cUL, it is trusted in the most demanding high-risk industrial environments worldwide.

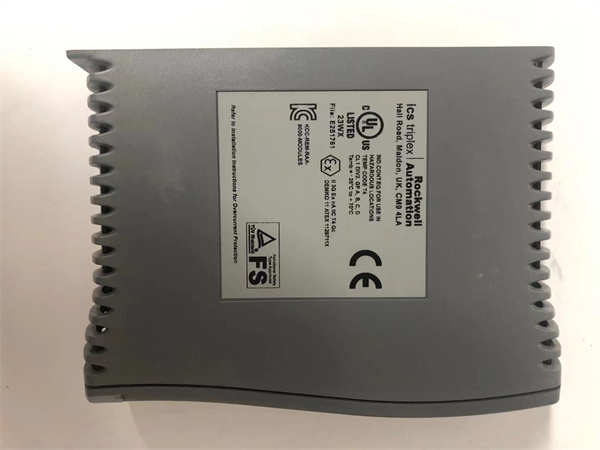

T9432 ICS TRIPLEX
Technical Specifications
| Parameter Name | Parameter Value |
| Model | T9432 |
| Manufacturer | ICS Triplex (Schneider Electric) |
| Module Type | 32-Channel Discrete Output (DO) for TMR Systems |
| Compatible Chassis | Triconex 3501, 3701, 3801 series |
| Output Type | Sinking (to 24 V DC common) |
| Output Voltage | Switches to 0 V (when ON); open circuit when OFF |
| Max Load per Channel | 100 mA |
| Max Group Current | 1.0 A per 8-channel bank (4 banks total) |
| Total Module Current | ≤ 3.2 A |
| Load Voltage Range | 18–30 V DC (supplied externally by user) |
| Output Protection | Individual short-circuit, overcurrent, and thermal shutdown |
| Diagnostic Features | Per-channel open-load, short-circuit, and health monitoring |
| Redundancy | Full TMR – triple processing with 2-out-of-3 voting |
| Hot-Swappable | Yes |
| Status Indication | 32 green LEDs (one per channel) + module OK LED |
| Operating Temperature | 0°C to +60°C |
| Certifications | IEC 61508 SIL 3, ATEX, IECEx, UL 61010, CE |
| Mounting | Inserted into Triconex chassis (DIN rail-mounted system) |
Main Features and Advantages
✅ True TMR Fault Tolerance – Output commands are validated by three independent channels; single failure does not compromise safety.
✅ High-Density 32 Outputs – Maximizes control capability per slot, reducing system footprint and cost.
✅ Advanced Diagnostics – Detects open circuits (e.g., broken solenoid coil), short circuits, and wiring faults in real time.
✅ Built-in Protection – Each channel self-limits during faults and automatically recovers when cleared.
✅ Seamless TriStation Integration – Supports online forcing, simulation, and diagnostic logging via official engineering tool.
✅ Field-Proven in Harsh Environments – Resists EMI, surges, and ground loops per IEC 61000-4 standards.
Application Field
The T9432 ICS TRIPLEX is critical in:
Oil & Gas Platforms: Energizing shutdown solenoids on subsea valves and wellhead control panels.
Refineries: Triggering blowdown valves, isolation dampers, and flare ignition systems during ESD events.
LNG Facilities: Controlling cryogenic valve actuators and emergency depressurization sequences.
Power Plants: Tripping turbine stop valves, generator breakers, and auxiliary system interlocks.
Chemical & Pharmaceutical Plants: Safely de-energizing agitators, pumps, and heating elements during process upsets.
T9432 ICS TRIPLEX
Related Products
T9402 ICS Triplex– 32-channel discrete input module (companion to T9432)
T9422– 16-channel discrete output module (for lower-density or higher-isolation needs)
T9522 / T9532– Analog output modules (4–20 mA) for modulating control
T9110– Redundant 24 V DC power supply for Triconex chassis
Triconex Main Processor (3503E, 3703E)– Central TMR logic solver
TriStation 1131– Official configuration and diagnostics software
Schneider Electric EcoStruxure Triconex– Next-generation platform with enhanced security and connectivity
