Potter&Brumfield SDAS-01-7Y2S1024 Current Sensor Relay Product Detailed Explanation

Product Overview

Potter&Brumfield SDAS-01-7Y2S1024 is a current sensor relay mainly used to detect current changes in circuits and trigger output terminal contact actions when the current exceeds or falls below the set value,thereby achieving protection or control of the circuit.

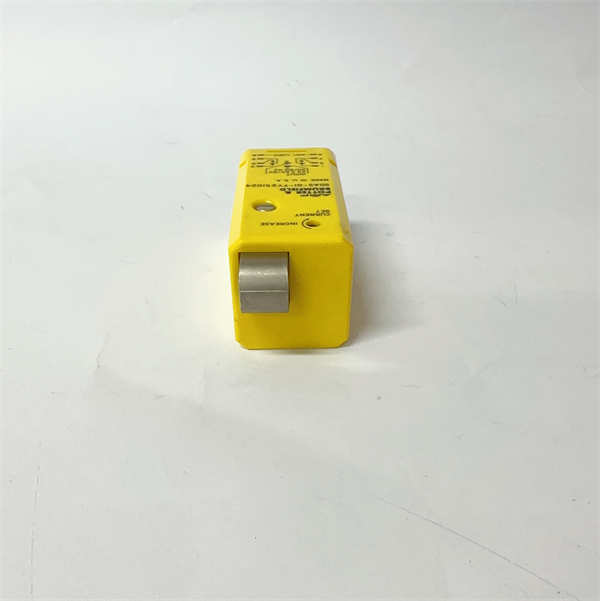

SDAS-01-7Y2S1024 POTTER&BRUMFIELD

Product Features

Current detection:It can accurately detect the magnitude of the current in the circuit and compare it with the set value.

Overcurrent protection:When the current exceeds the set value,the relay output is triggered to cut off the circuit and prevent equipment damage.

Undercurrent protection:When the current is lower than the set value,the relay output is triggered,an alarm is issued,or other control actions are taken.

High sensitivity:responds quickly to changes in current and can detect abnormal situations in a timely manner.

High reliability:Using high-quality components with high reliability.

Easy to install:Provides multiple installation methods to facilitate user installation.

Product parameters

model:SDAS-01-7Y2S1024

Current range:1.5-15A AC

Control voltage:24VAC/DC

Contact form:DPDT(Double Throw Double Open)

Contact capacity:2A 28VDC or 1A 120VAC

Time delay:overcurrent:200ms min;Undercurrent:350ms typ

Working temperature:-25°C to+70°C

Installation method:socket type

Product series

The SDAS-01 series belongs to Potter&Brumfield’s current sensor relay series,which has multiple models to meet different current detection and protection needs.

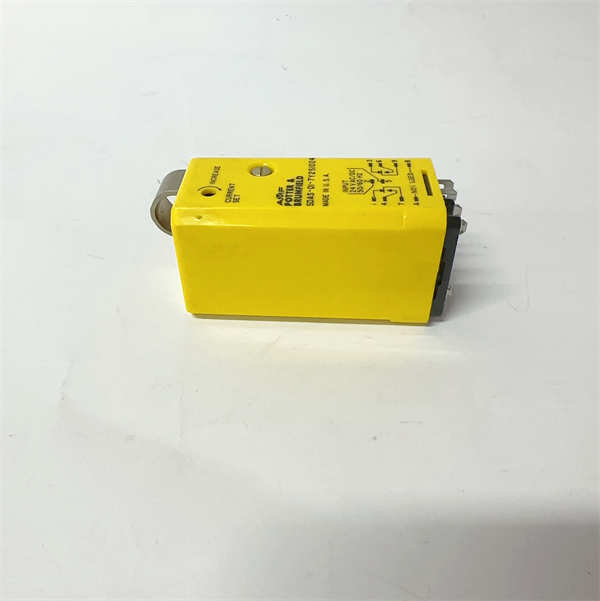

SDAS-01-7Y2S1024 POTTER&BRUMFIELD

Product function

Overcurrent protection:prevents equipment from being damaged due to overcurrent.

Undercurrent protection:Detect the undercurrent situation in the circuit and issue an alarm or take other measures.

Motor protection:protects the motor from damage caused by overload and underload.

Equipment control:Control the operating status of the equipment based on the current signal.

Product Usage

Industrial automation:motor control,production line protection,etc

Power System:Overcurrent Protection of Power Equipment

Home appliances:motor drive control

Instrumentation:Current measurement and protection

application area

Motor control:used to protect the motor from damage caused by overload and underload.

Power protection:used to protect power equipment from damage caused by overload.

Security protection:used to detect abnormal currents in circuits and trigger alarms or cut off power.

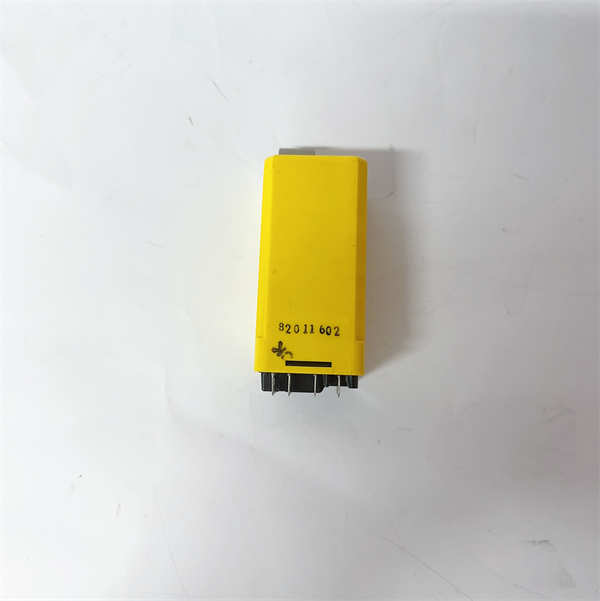

SDAS-01-7Y2S1024 POTTER&BRUMFIELD

summary

Potter&Brumfield SDAS-01-7Y2S1024 current sensor relay is a powerful and highly reliable product widely used in industrial automation,power systems,and other fields.Its main function is to detect current changes in the circuit and provide overcurrent and undercurrent protection functions to ensure the safe operation of the equipment.
