High Voltage Digital Input/Output Terminal Board

Product Overview

NISCXI-1326 is a high-voltage terminal board designed specifically for high-voltage digital signals, and it is also part of the NISCXI (Instrument Signal Conditioning Expansion) Series. It provides a safe and reliable platform for connecting high-voltage digital signals and works together with other modules in the SCXI system.

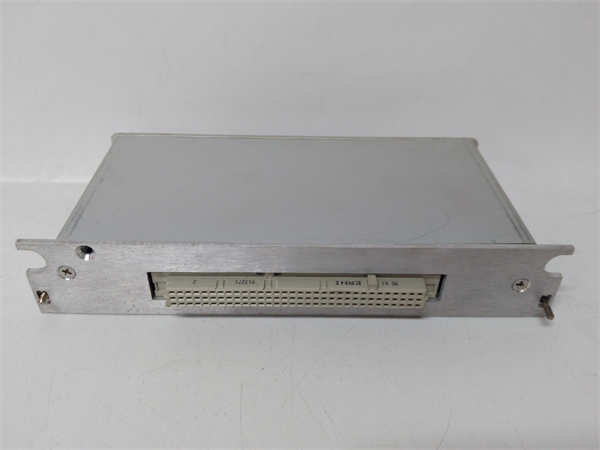

SCXI-1326 Nickel

Product Features

High voltage resistance: Designed for connecting high-voltage digital signals, with good insulation performance.

Multi-channel: Provides 48 screw terminals that can simultaneously connect multiple high-voltage digital signals.

Shielding design: Adopting a shielding design effectively reduces external electromagnetic interference.

Flexible configuration: Can be used with modules such as SCXI-1162/1162-HV/1163/1163/1163-R to achieve multiple functions.

Product Specifications

model:SCXI-1326

Number of terminals: 48 screw terminals

Maximum voltage: 300 Vrms

Size: 1.2 × 6.8 × 8.0 inches

Product Specifications

Compatibility: Compatible with modules such as SCXI-1162/1162HV/1163/1163/1163R

Installation method: Front panel install

Wiring method: Screw terminal

Working temperature:0℃~50℃

Relative humidity:5%~90%

Product Series and Features

SCXI Series: SCXI-1326 belongs to the NISKXI Series and is an important component of the NXI data acquisition system.

Modularization: The SCXI system uses a modular design, allowing users to flexibly combine different modules as needed.

Functions and Applications

High-voltage digital signal connection: Connect the high-voltage digital signal to the SCXI system.

Signal Isolation: Provides electrical isolation to protect measurement equipment.

Signal switching: Achieve signal switching in cooperation with modules such as SCXI-1162/1163.

Digital input/output: can be used for high-voltage digital input or output.

Application Area

Power Electronics: Control of High-Voltage Equipment

Motor Drive: High-Voltage Motor Control

Industrial Automation: High-Voltage Process Control

Research Experiment: High-Pressure Experiment

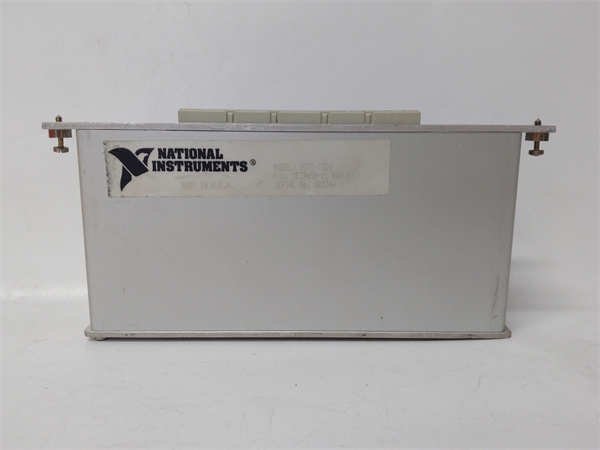

SCXI-1326 Nickel

Summarized

NISCXI-1326 is a high-voltage terminal board specifically designed for high-voltage digital signals, providing a safe and reliable high-voltage digital signal connection solution. Widely used in power electronics and motor drive fields.
