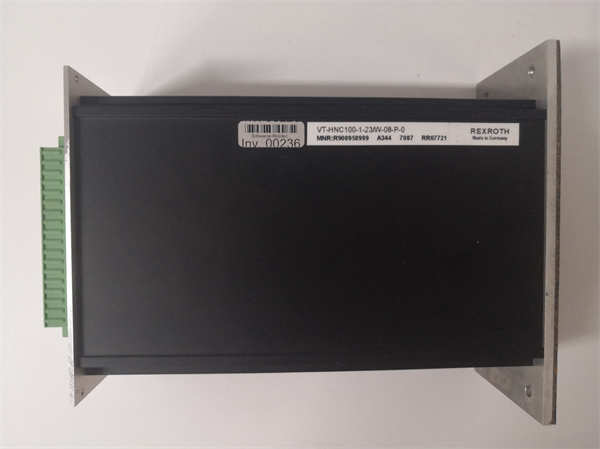

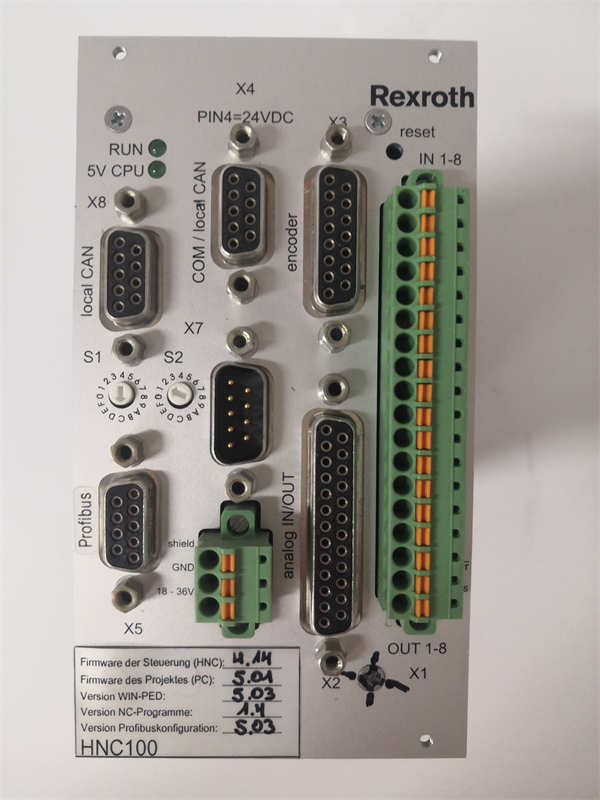

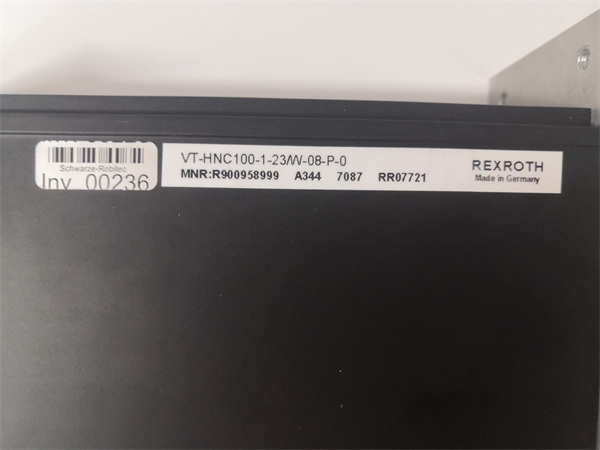

REXROTH VT-HNC100-1-23W-08-P-0 R90095899 Detailed information integration of digital axis controller:

DESCRIPTION

VT-HNC100-1-23W-08-P-0 is a high-performance industrial grade digital axis controller designed specifically for hydraulic and electric drive systems.It supports programmable multi axis control(up to 4 axes)and can achieve closed-loop control of position,speed,and pressure,meeting the high-precision and high reliability requirements in industrial automation.The controller adopts a modular design,supports wall mounted installation,and integrates Profibus DP bus interface,suitable for device interconnection and control system integration in complex industrial environments.

VT-HNC100-1-23W-08-P-0 R90095899 REXROTH

Product parameters

model:VT-HNC100-1-23W-08-P-0

Brand:REXROTH(Rexroth)

Number of axes:1 hydraulic axis

Input/Output:8 digital inputs/outputs

Bus interface:Profibus DP(maximum transmission rate of 12 Mbps)

Working voltage:18-36 VDC

Working temperature:0°C to+50°C

Processor:16/32-bit MC 68376

Memory:1 MB flash EPROM,8 KB EEPROM,256 KB RAM

Sensor support:Incremental and SSI encoders

Analog input:4-channel differential analog voltage input(±10 V,200 kΩ)

Product specifications

Type:Industrial grade digital axis controller,supporting hydraulic/electric drive closed-loop control.

Installation method:Wall mounted casing,modular structure.

Certification:Compliant with EC guidelines and industrial communication standards.

Protection level:IP20(requires external protection).

series

Belonging to the REXROTH VT-HNC100 series,designed specifically for multi axis motion control in industrial automation,compatible with hydraulic and electric drive systems.

VT-HNC100-1-23W-08-P-0 R90095899 REXROTH

characteristic

Multi axis control:Supports up to 4-axis synchronous control,suitable for complex mechanical systems.

Closed loop control:Real time monitoring and adjustment of position,speed,and pressure to ensure system stability and accuracy.

High reliability:Industrial grade design,resistant to vibration,impact,and electromagnetic interference,suitable for harsh environments.

Flexible communication:Integrated with Profibus DP bus,supporting high-speed data exchange with devices such as PLC and upper computer.

Modular expansion:Input/output points or functions can be increased through expanding modules.

role

Motion control:Precisely drive hydraulic or electric actuators to achieve complex trajectory planning.

System monitoring:Real time monitoring of equipment status,providing dynamic error diagnosis and protection functions.

Protocol conversion:Supports multiple sensor interfaces(such as SSI and incremental encoders)to adapt to different device access.

purpose

Industrial automation:controlling the motion trajectory of equipment such as robotic arms,presses,and conveyor lines.

Pressure/Position Adjustment:Achieving high-precision pressure closed-loop control in hydraulic systems.

System integration:As the core controller,connect sensors,drivers,and upper computer to build a complete automation solution.

VT-HNC100-1-23W-08-P-0 R90095899 REXROTH

application area

Manufacturing industry:motion control of machine tools,injection molding machines,and packaging machinery.

Energy and Electricity:Equipment Monitoring and Regulation for Power Plants and Hydraulic Pumping Stations.

Transportation and logistics:precise control of rail vehicle braking systems and automated warehousing equipment.

Intelligent control of hydraulic driven equipment such as excavators and cranes in construction machinery.

Research and Education:Precision Control and Teaching Demonstration of Laboratory Hydraulic Systems.
