Detailed information integration of AN-X2-AB-DHRIO PROSOFT Ethernet IP to remote I/O module:

DESCRIPTION

AN-X2-AB-DHRIO is an industrial grade communication gateway module designed by PROSOFT,specifically developed to connect Ethernet IP(EtherNet/IP)with traditional remote I/O(RIO)or data highway enhanced(DH+)networks.This module supports protocol conversion and data exchange,enabling seamless integration between modern control systems(such as Allen Bradley ControlLogix/CompactLogix)and legacy devices(such as PLC-5,SLC 500,Flex I/O),reducing system upgrade costs,and is suitable for industrial automation,process control,and other fields.

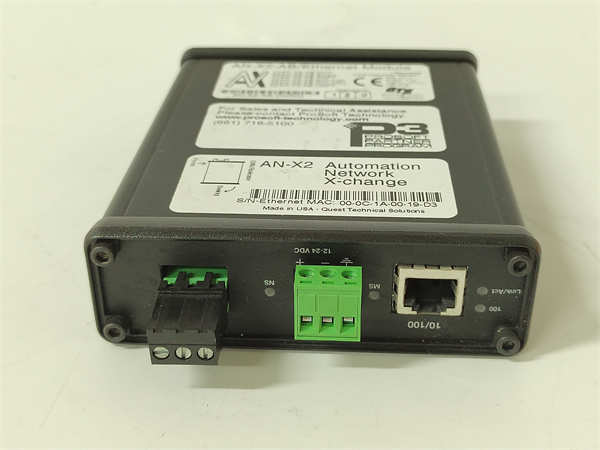

AN-X2-AB-DHRIO PROSOFT

Product parameters

model:AN-X2-AB-DHRIO

Brand:PROSOFT

Interface type:

1 RJ45 Ethernet IP port(10/100 Mbps)

Two 3-pin Phoenix connectors(DH+/RIO network and 24 VDC power supply)

Support agreement:EtherNet/IP、DH+、RIO

Baud rate:DH+/RIO supports 57.6,115.2,230.4 Kbps

Power supply voltage:24 VDC(typical value)

Power consumption:approximately 2.4 W

Working temperature:0°C to+50°C

Storage temperature:-40°C to+85°C

Protection level:IP20(installed inside the cabinet)

Size:Approximately 13.67 cm x 5.05 cm x 11.13 cm

Weight:Approximately 0.3 kg

Product specifications

Communication ability:

Supports bidirectional data transmission between Ethernet IP and DH+/RIO.

Supports mapping of discrete and analog signals,compatible with Allen Bradley PLC data format.

Configuration method:

Built in web server,supporting remote configuration,monitoring,and firmware updates.

Automatic baud rate detection and rack number allocation simplify the installation process.

Scalability:

Support daisy chain connection,cascading multiple devices(such as Flex I/O adapters,drivers).

Single module supports 32 logical rack connections(RIO mode).

Diagnostic function:

LED indicator lights display power,network,communication status,and error messages.

Support real-time fault diagnosis and data logging.

Belonging series

Series:PROSOFT EtherNet/IP to Remote I/O/DH+Gateway Series,designed specifically for industrial protocol conversion and system integration.

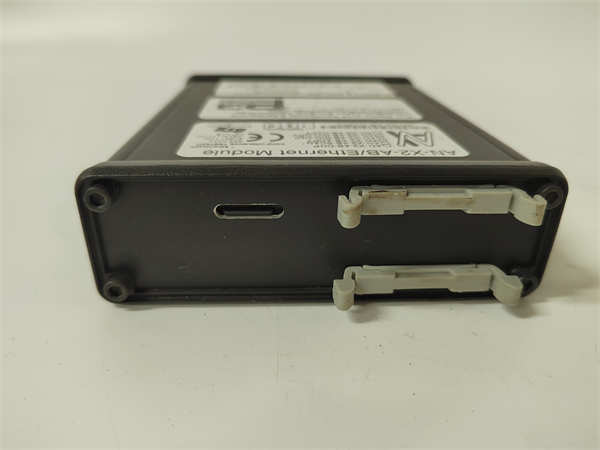

AN-X2-AB-DHRIO PROSOFT

characteristic

Multi protocol support:seamlessly bridging EtherNet/IP and DH+/RIO networks,compatible with both old and new devices.

Efficient transmission:10/100 Mbps Ethernet bandwidth,low latency data exchange.

Flexible configuration:Web interface operation,supports remote management and batch configuration.

Economic Upgrade:Protecting existing investments and enabling access to modern control systems without the need to replace legacy equipment.

Stable and reliable:Industrial grade design,suitable for wide temperature and humid environments,resistant to electromagnetic interference.

Action and use

Core functions:

Protocol conversion:Convert EtherNet/IP signals to DH+/RIO protocols,and vice versa.

Data Mapping:Implement data exchange between ControlLogix PLC and traditional devices such as PLC-5 and SLC 500.

Typical use:

Factory automation system upgrade,retaining old equipment while connecting new controllers.

Cross network device communication(such as HMI,drivers,sensors).

Remote monitoring and centralized control reduce the complexity of on-site wiring.

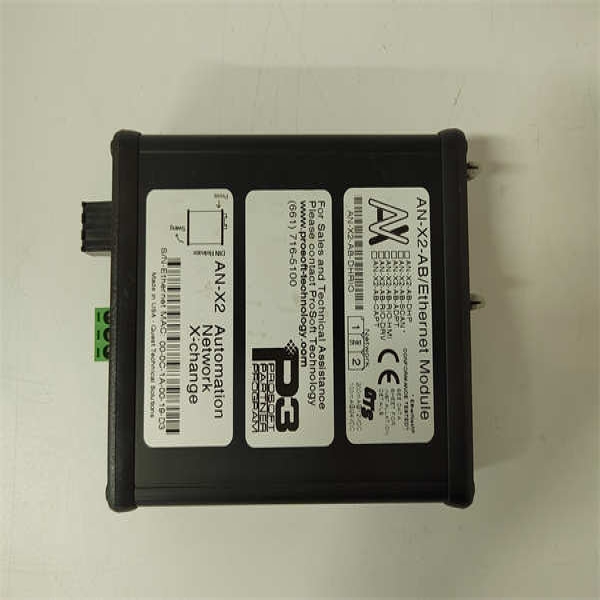

AN-X2-AB-DHRIO PROSOFT

application area

Manufacturing industry:automotive production lines,electronic assembly lines,robot control.

Energy industry:power monitoring,petrochemical process control.

Water treatment:remote I/O integration for pump stations and sewage treatment plants.

Transportation:Rail transit signal system,intelligent warehousing and logistics.

Food and Medicine:Equipment Monitoring and Data Traceability in Cleanroom Environments.
