Information organization of ABB PFSK162 3BSE015088R1 signal processing/control module:

DESCRIPTION

PFSK162 3BSE015088R1 is a signal processing/control module launched by ABB,mainly used for signal conditioning,digital communication,and control logic processing.It supports converting analog signals(such as current and voltage)from on-site sensors or transmitters into standard signals,and implementing data preprocessing,filtering,and protocol conversion through DSP technology.This module can be integrated with PLC and DCS systems,suitable for distributed I/O architecture,to enhance the reliability and flexibility of industrial control systems.

Product parameters

model:PFSK162

Part number:3BSE015088R1

Input signal:Supports analog signals such as current(e.g.0-20mA),voltage(e.g.0-10V),etc

Output signal:Standard analog signal(such as 4-20mA,0-10V)or digital signal(requiring protocol conversion)

Communication protocol:compatible with industrial protocols such as Profibus DP and Modbus RTU

Accuracy:±0.1%(typical value)

Isolation characteristics:Electrical isolation(optocoupler or magnetic isolation)

Working temperature:-40°C to+70°C(industrial grade environment adaptation)

Installation method:DIN rail installation

Product specifications

Function:Signal conditioning,analog-to-digital conversion,protocol conversion,fault diagnosis.

Compatibility:Compatible with ABB S800 I/O system,AC800M PLC,and third-party control systems.

Scalability:Supports modular expansion and can be combined with other I/O modules.

series

Belonging to ABB’s industrial automation product line,it is used in conjunction with ABB’s S800 I/O system,robot control(such as DSQC series),and distributed control system(such as 800xA).

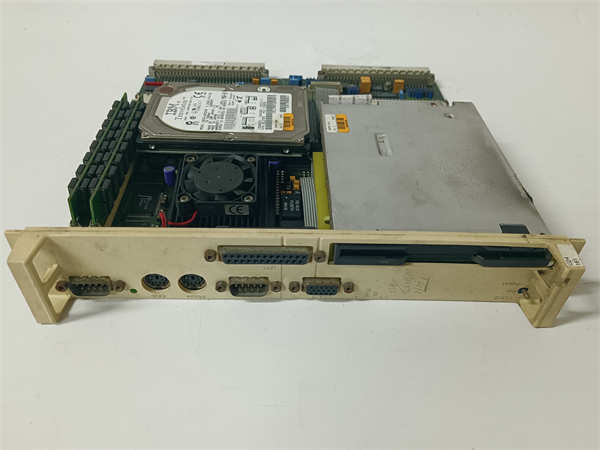

PFSK162 3BSE015088R1 ABB

characteristic

DSP technology:using digital signal processing technology to optimize signal processing speed and accuracy.

Multi protocol support:compatible with multiple industrial communication protocols,facilitating system integration.

Modular design:Supports hot plugging and easy maintenance.

Wide temperature adaptation:Industrial grade components that are suitable for extreme environments.

Intelligent diagnosis:Real time monitoring of equipment status and providing fault alarms.

role

Signal conversion:Convert non-standard signals into a format recognizable by the control system.

Data preprocessing:filtering,linearization,and signal amplification to improve transmission quality.

System Communication:As a communication bridge between on-site devices and control systems,it supports real-time data exchange.

purpose

Signal acquisition and control of industrial automation production lines.

Signal conditioning and expansion of distributed I/O systems.

Equipment status monitoring and fault warning.

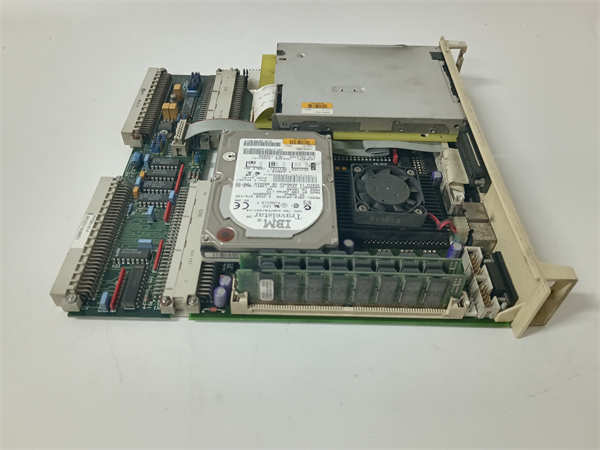

PFSK162 3BSE015088R1 ABB

application area

Manufacturing industry:robot systems,production line equipment monitoring.

Energy industry:Process control in power and petrochemical industries.

Water treatment:remote monitoring and regulation of pump stations and valves.

Electronics and Communication:Optimization and Management of Signal Transmission Equipment.

Transportation field:Signal processing of rail transit signal systems.
