Description

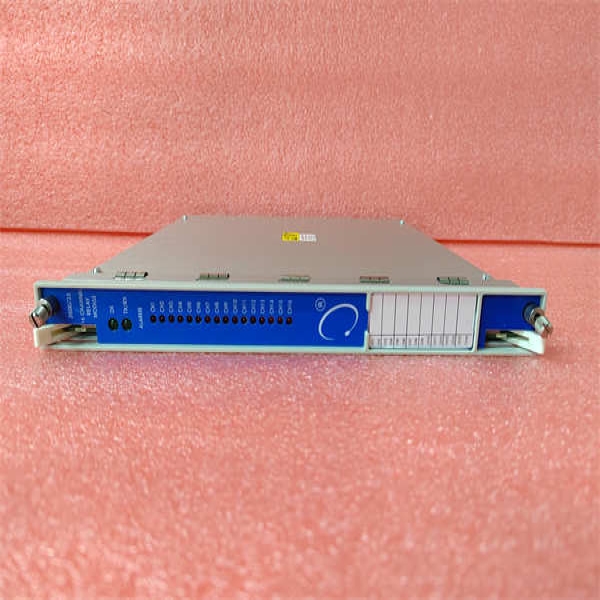

The Bently Nevada 3500/33 149986-01 16 channel relay module is a relay output module in the Bently Nevada 3500 series mechanical condition monitoring system.This module is designed specifically to protect rotating machinery such as turbines,compressors,generators,etc.It can drive external alarm devices or protection systems based on the alarm signals emitted by the monitoring system.The 3500/33 module provides 16 independent relay output channels,which can be flexibly configured as alarm relays,trip relays,or other control relays.As the core component of the 3500 series,Bently Nevada 3500/33 is widely used in industries such as oil,gas,power,and chemical.It can effectively achieve the linkage between mechanical condition monitoring systems and external equipment,ensuring the safe and reliable operation of rotating machinery.The 3500/33 16 channel relay module has flexible configuration options and powerful diagnostic capabilities,making it easy to integrate into various 3500 series monitoring systems.

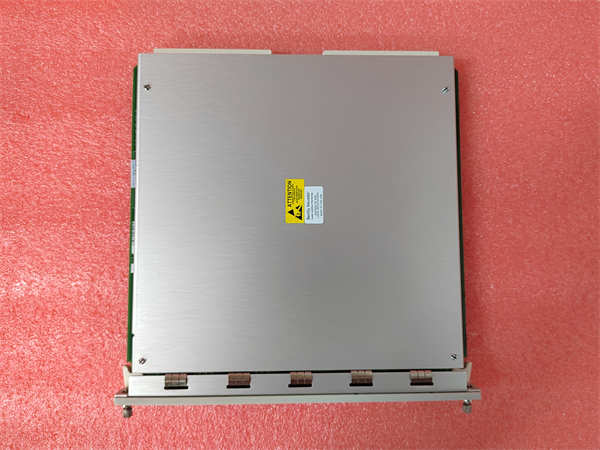

3500/33 149986-01 BENTLY

technical specifications

Product Model:3500/33 149986-01

manufacturer:Bently Nevada

Product type:16 channel relay module

Number of channels:16

Relay type:dry contact relay

Alarm settings:programmable alarm logic

Communication interface:Bently Nevada Data Highway(TDH)

Power supply voltage:24 VDC

Working temperature:-30°C to+65°C

Storage temperature:-40°C to+85°C

Installation method:3500 series rack installation

Main features and advantages

The Bently Nevada 3500/33 149986-01 16 channel relay module is widely used in the field of rotating machinery protection due to its high reliability and flexibility.

High density output channel:Provides 16 independent relay output channels,capable of simultaneously driving multiple external devices.

Flexible configuration options:Can be flexibly configured as alarm relays,trip relays,or other control relays.

Programmable alarm logic:It can flexibly configure the action of relays according to different alarm conditions and logic.

Powerful diagnostic function:capable of real-time monitoring of the working status of relays,detecting faults,and facilitating user maintenance.

High reliability:High quality relays and electronic components are used to ensure the stability and reliability of the module.

Easy to integrate:It can seamlessly integrate with other modules in the 3500 series to form a complete mechanical condition monitoring system.

The 3500/33 16 channel relay module is an ideal choice for rotating machinery protection due to its excellent performance and reliability.

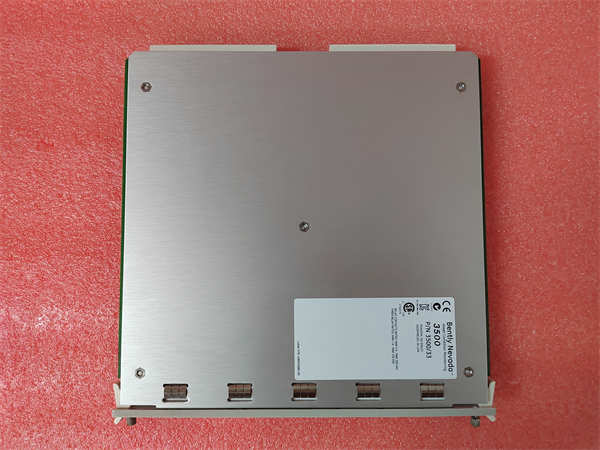

3500/33 149986-01 BENTLY

application area

The Bently Nevada 3500/33 149986-01 16 channel relay module is widely used in various rotating machinery protection systems that require relay output.

Steam turbine:used to drive alarm indicator lights,sound and light alarms,trip solenoid valves,etc.

Compressor:used to drive alarm indicator lights,sound and light alarms,emergency stop systems,etc.

Generator:used to drive alarm indicator lights,sound and light alarms,excitation control systems,etc.

Pump:used to drive alarm indicator lights,sound and light alarms,start/stop control,etc.

Fan:used to drive alarm indicator lights,sound and light alarms,emergency stop systems,etc.

Other rotating machinery:used to drive various external devices that require relay output.

The 3500/33 16 channel relay module plays a critical role in these fields,ensuring the safe and reliable operation of rotating machinery.

Related products

Bently Nevada 3500 Series Rack:Used for installing 3500/33 and other 3500 Series modules.

Bently Nevada 3500/22 Transient Data Interface Module(TDI):Used for collecting and analyzing transient data.

Bently Nevada 3500/92 Universal Equipment Monitor:Used to monitor various types of mechanical parameters.

Bently Nevada sensors:used to measure various mechanical parameters.

Bently Nevada System 1 software:used for configuring,monitoring,and analyzing data of 3500 series systems.

Installation and maintenance

Preparation before installation:Before installing the 3500/33 16 channel relay module,please carefully read the product manual to understand the installation requirements and precautions of the module.Ensure that the installation environment meets the operating temperature and humidity requirements of the module.Check if the power supply voltage is consistent with the rated voltage of the module.Prepare necessary installation tools and cables.

Maintenance suggestion:Regularly check whether the connecting cables of the 3500/33 16 channel relay module are loose or damaged.Regularly clean the dust and dirt on the module to maintain good heat dissipation.Regularly check the operating status of the module and observe for any abnormal phenomena.If any problems are found,please contact Baker Hughes’after-sales service department in a timely manner.

3500/33 149986-01 BENTLY

Product Guarantee

Bentley Nevada 3500/33 16 channel relay module provides comprehensive product assurance,including quality assurance and after-sales service.We promise to provide users with high-quality products and timely technical support.
