Description

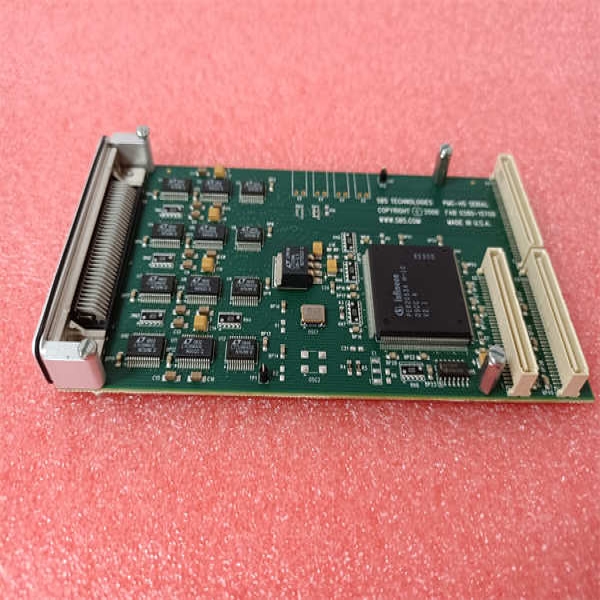

PMC-HS-SERIAL SBS PMC HS Serial Four Channel High Speed Module is a high-performance serial communication module designed specifically for industrial automation and embedded system applications.This module adopts the PMC(PCI Mezzanine Card)standard,which can be easily integrated into various embedded systems and industrial computers,providing four independent,high-speed serial communication channels.The PMC-HS-SERIAL module supports multiple serial communication protocols,including RS-232,RS-422,and RS-485,and is suitable for various serial communication applications.This module also has the characteristics of high-speed data transmission and low latency,which can meet the needs of various real-time control and data acquisition applications.The PMC-HS-SERIAL module is widely used in industrial automation,transportation,power,and defense fields,providing reliable high-speed serial communication solutions for various industrial applications.

technical specifications

Product model:PMC-HS-SERIAL

manufacturer:SBS

Product type:High speed serial module

Bus standard:PMC(PCI Mezzanine Card)

Number of serial channels:4

Support agreement:RS-232,RS-422,RS-485

Size:PMC standard size

Main features and advantages

The PMC-HS-SERIAL SBS PMC HS serial four channel high-speed module has the following main features and advantages:

High speed communication:High speed data transmission and low latency meet the needs of real-time control and data acquisition applications.

Four channel independent communication:Provides four independent serial communication channels for easy connection of multiple serial devices.

Multiple protocol support:Supports multiple serial communication protocols such as RS-232,RS-422,and RS-485,flexibly adapting to various application requirements.

PMC standard:Adopting PMC standard for easy integration into various embedded systems and industrial computers.

Industrial grade design:capable of reliable operation in harsh industrial environments.

Reliability:Using high-quality materials and processes to ensure the reliability and durability of the product.

Powerful driver support:Provides drivers for various operating systems to facilitate user development and integration.

application area

PMC-HS-SERIAL SBS PMC HS serial four channel high-speed module is suitable for various industrial automation applications,including:

Industrial automation:used for connecting PLCs DCS、Sensors and actuators enable data exchange and control.

Transportation:Used for controlling traffic signals,tunnel ventilation,and train control.

Electricity:used for monitoring and controlling power plants,substations,and distribution systems.

National Defense:Used to control radar,sonar,and communication systems.

Other industrial sectors:oil and gas,chemical industry,metallurgy,etc.

Related products

SBS PMC series modules:Provides various PMC standard I/O modules and communication modules.

SBS Embedded Computer:Provides various industrial grade embedded computers for control and data acquisition.

SBS serial communication cable:Provides various serial communication cables for connecting serial devices.

SBS Software Development Kit:Provides various software development kits to facilitate user application development.

Installation and maintenance

Preparation before installation:Before installing the PMC-HS-SERIAL module,please ensure that the embedded system or industrial computer has been correctly installed and the power has been disconnected.Carefully read the SBS installation manual and follow the steps for installation.

Maintenance suggestion:Regularly check the connection and status of the PMC-HS-SERIAL module to ensure its normal operation.Regularly clean the module to avoid dust and dirt affecting its heat dissipation.Regularly check if the cable connections are secure to avoid signal interruption caused by looseness.

Product Guarantee

SBS provides comprehensive product assurance for PMC-HS-SERIAL modules,including quality assurance and after-sales service.SBS is committed to providing customers with high-quality products and reliable services to ensure customer satisfaction.
