Description

The TRICONEX 3721C analog input module is a key component of the Triconex(now a brand under Schneider Electric)Tricon Safety Instrumented System(SIS).This module is designed for high security applications and can reliably collect signals from various analog sensors(such as temperature,pressure,flow,etc.)and convert these signals into digital signals for secure processing by the Tricon system.The TRICONEX 3721C adopts a Triple Modular Redundancy(TMR)architecture to ensure safe operation of the system in the event of any single failure.This module plays an important role in safety instrumented systems,providing accurate and reliable analog inputs to help achieve safety monitoring and control of production processes.The TRICONEX 3721C analog input module provides excellent safety and reliability,making it an ideal choice for building high integrity safety instrumented systems.

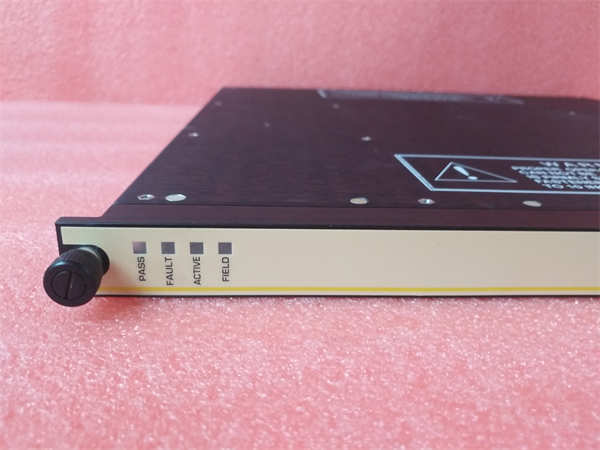

3721C TRICONEX

technical specifications

Product model:3721C

Manufacturer:TRICONEX(Schneider Electric)

Product type:Analog input module

Input signal type:4-20 mA,voltage,etc

Security integrity level:(SIL)SIL 3

Supply voltage:24 VDC

Installation method:rack installation

Main features and advantages

The TRICONEX 3721C analog input module has the following significant features and advantages:

Triple Modular Redundancy(TMR):Ensure high availability and security of the system.

High safety:Compliant with SIL 3 safety integrity level,suitable for high safety applications.

Powerful diagnostic function:capable of detecting and reporting module faults.

Easy to integrate:Can seamlessly integrate with Tricon safety instrumented systems.

High reliability:designed for harsh industrial environments to ensure long-term stable operation.

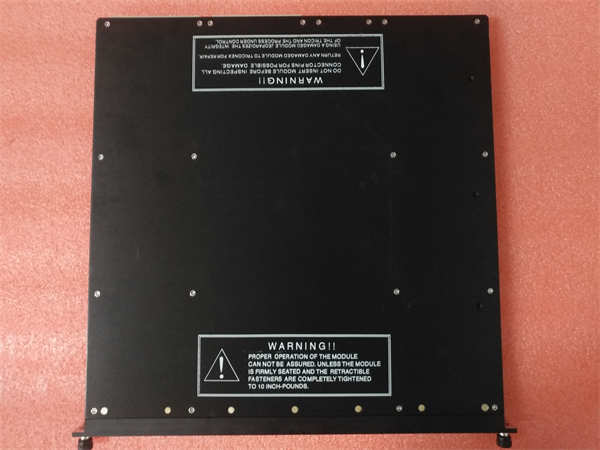

3721C TRICONEX

application area

The TRICONEX 3721C analog input module is widely used in various high security industrial automation scenarios,such as:

Oil and gas industry:used for monitoring and controlling safety critical parameters such as pressure,temperature,and flow rate.

Chemical industry:used for monitoring and controlling safety critical equipment such as reactors and storage tanks.

Electric power industry:used for monitoring and controlling safety critical equipment such as boilers and turbines.

Metallurgical industry:used for monitoring and controlling safety critical equipment such as blast furnaces and continuous casting machines.

Pharmaceutical industry:used for monitoring and controlling safety critical equipment such as fermentation tanks and reactors.

Related products

TRICONEX 3008：Main processor module.

TRICONEX 3625：Digital input module.

TRICONEX 3604E：Digital output module.

TRICONEX 3503E：Analog output module.

TRICONEX SM8652：Security management module.

TRICONEX TCM：Communication module.

TRICONEX DIOM：Digital I/O module.

Installation and maintenance

Preparation before installation:Before installing the TRICONEX 3721C analog input module,please ensure that the installation environment meets safety requirements and avoid mechanical shock or overload to the module.According to the installation manual,correctly connect the power and signal lines,and ensure that all connections are firm and reliable.Use appropriate tools and torque for installation to avoid damaging the module.After installation,perform necessary configuration and testing to ensure that the module can work properly.

Maintenance suggestion:Regularly check the installation status and electrical connections of the TRICONEX 3721C analog input module to ensure that it is not loose or damaged.Regularly clean the surface of the module to avoid dust and dirt affecting heat dissipation.Avoid prolonged exposure of modules to extreme temperature or humidity environments.Regularly calibrate and test to ensure that the module can function properly.

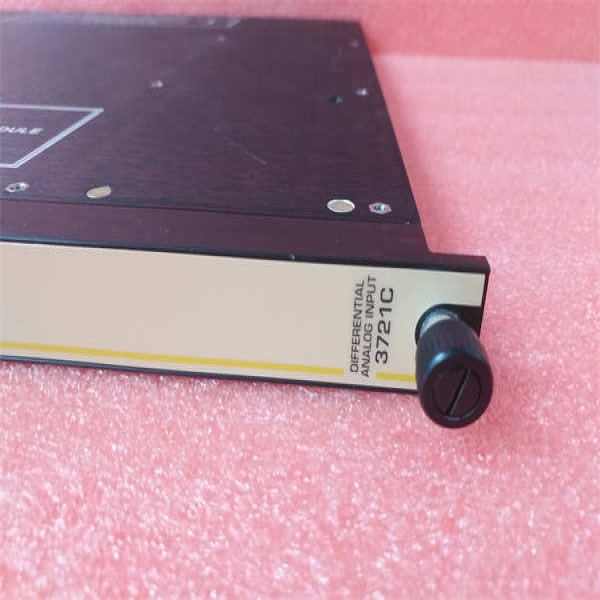

3721C TRICONEX

Product Guarantee

Schneider Electric provides comprehensive quality assurance and after-sales service for the TRICONEX 3721C analog input module.They promise that all products undergo strict quality control and testing to ensure their performance and reliability.They provide professional technical support and maintenance services to help customers solve any problems encountered during use.They are committed to providing customers with high-quality products and excellent services,ensuring customer satisfaction and trust.
