Description

PROSOFT PLX32-EIP-SIE Ethernet Communication Gateway Module is a high-performance industrial communication gateway produced by ProSoft Technology,belonging to the PLX30 series.This module is specifically designed for use in EtherNet/IP™High speed bidirectional data transmission is achieved between the network and Siemens Industrial Ethernet network.The PROSOFT PLX32-EIP-SIE Ethernet communication gateway module plays an important role in network integration in automation systems,allowing seamless data exchange between Rockwell Automation PAC(Programmable Automation Controller)and Siemens S7 PAC,thereby simplifying integration between different automation systems.This product is widely used in industrial scenarios that require the integration of different brands of automation equipment,such as automobile manufacturing,food and beverage,petrochemical industry,etc.The PROSOFT PLX32-EIP-SIE Ethernet communication gateway module provides users with an efficient and reliable network communication solution due to its high-speed data transmission,flexible network configuration,and easy integration features.

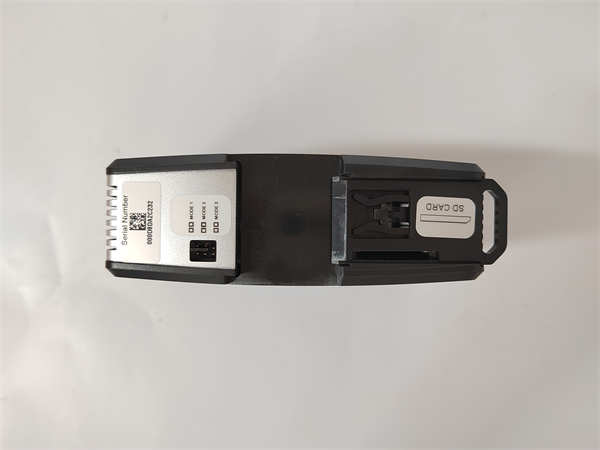

PLX32-EIP-SIE PROSOFT

technical specifications

Product model:PLX32-EIP-SIE

manufacturer:ProSoft Technology

Product Type:Ethernet Communication Gateway Module

Communication protocol:EtherNet/IP™,Siemens Industrial Ethernet

Ethernet ports:2 independent Ethernet ports

Data transmission rate:high-speed data transmission

Data priority management:supports multiple I/O connections and can set different RPIs

Configuration storage:built-in SD card slot

Installation method:DIN rail installation

Main features and advantages

The PROSOFT PLX32-EIP-SIE Ethernet communication gateway module has the following main features and advantages:

Independent Ethernet port:

This gateway is equipped with two independent Ethernet ports,allowing EtherNet/IP™Run in a separate subnet with Siemens Industrial Ethernet protocol,without changing the IP address of the device.

High speed bidirectional data transmission:

Capable of achieving high-speed bidirectional data transmission between Rockwell Automation PAC and Siemens S7 PAC,meeting the requirements of real-time control.

Data priority management:

Support multiple I/O connections,allowing users to set different RPIs(Request Packet Intervals)for status and/or control data,thereby optimizing data transmission.

Easy integration:

Built in embedded EDS(electronic data sheet)with additional configuration files simplifies the integration process and shortens debugging time.

Configure storage:

Built in SD card slot(SD card is an optional accessory),convenient for storing configuration files,used for fault recovery and configuration backup.

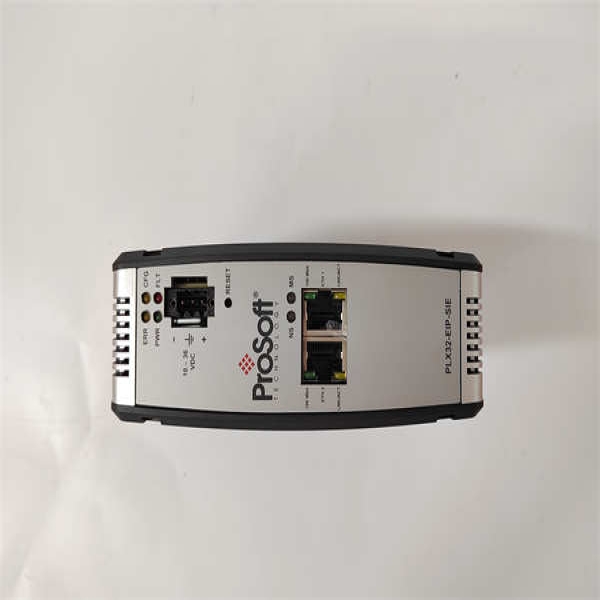

PLX32-EIP-SIE PROSOFT

application area

PROSOFT PLX32-EIP-SIE Ethernet communication gateway module is widely used in applications that require integration with EtherNet/IP™Industrial scenarios with Siemens Industrial Ethernet networks,including:

Automobile manufacturing:integrating different automation equipment on the production line.

Food and beverage:Connect production equipment of different brands to achieve automation of the production process.

Petrochemical industry:Implement data exchange between DCS(Distributed Control System)and PLC(Programmable Logic Controller).

Other industrial fields that require integration of automation equipment from different brands.

Related products

PROSOFT PLX30 series gateway:Provides multiple Ethernet and serial communication gateways to meet different industrial communication needs.

PROSOFT EtherNet/IP™Gateway:used to connect EtherNet/IP™Other ProSoft products in the network.

PROSOFT Siemens Industrial Ethernet Gateway:Used to connect other ProSoft products to Siemens Industrial Ethernet networks.

Installation and maintenance

Preparation before installation:Before installing the PROSOFT PLX32-EIP-SIE Ethernet communication gateway module,please carefully read the product manual to understand the installation requirements and safety precautions of the product.Ensure that the installation environment meets the working temperature and humidity requirements of the product.Check if the installation space is sufficient and prepare the necessary installation tools and materials.

Maintenance suggestion:Regularly check whether the connection cables of the PROSOFT PLX32-EIP-SIE Ethernet communication gateway module are loose or damaged.Regularly clean the dust and dirt on the module and maintain good ventilation and heat dissipation.Regularly check the operation status of the module,and promptly troubleshoot any abnormal situations.It is recommended to have professional technicians perform maintenance and repair to ensure the normal operation of the module and extend its service life.

Product Guarantee

ProSoft Technology provides comprehensive quality assurance and after-sales service for the PROSOFT PLX32-EIP-SIE Ethernet communication gateway module.The product undergoes strict quality testing before leaving the factory to ensure compliance with relevant standards and specifications.
