Description

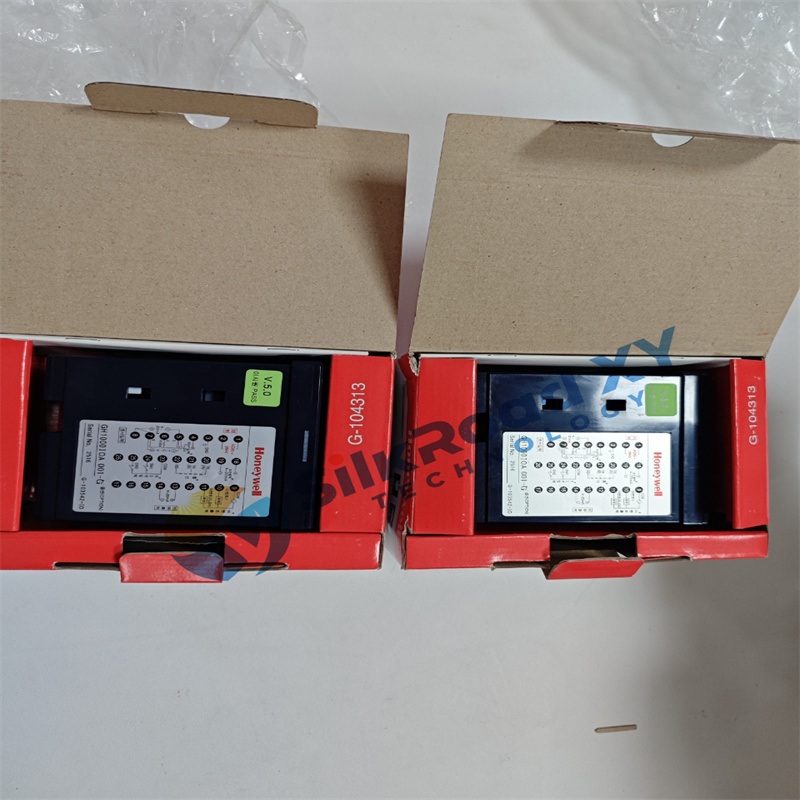

HONEYWELL CC-PDOB01 Digital Output Module is a highly reliable digital output module belonging to Honeywell’s Expertise®The series C I/O product line is designed specifically for use with C300 controllers and other components.The core function of this module is to integrate data from Experts®The digital signals of the control system are converted into discrete output signals,which are used to control various industrial actuators such as solenoid valves,relays,contactors,indicator lights,etc.HONEYWELL CC-PDOB01 has multi-channel,high current drive capability,and comprehensive fault diagnosis function,which can provide stable and reliable digital output control for key industrial processes.As a Honeywell Expert®The CC-PDOB01 module,an important component of PKS(Process Knowledge System),can be seamlessly integrated into Honeywell’s DCS(Distributed Control System)architecture to achieve precise control and safety interlocking of production process equipment.It supports redundant configuration and hot plug functionality,further enhancing the system’s availability and maintainability.HONEYWELL CC-PDOB01 Digital Output Module is one of the key elements in building safe and reliable automation systems.

HONEYWELL CC-PDOB01 Digital Output Module typically provides 32 independent digital output channels,each designed to drive loads with 24 VDC or higher voltage,and has a certain current driving capability(please refer to the specification sheet for specific values).This module provides multiple output types to choose from,such as source type(PNP)or drain type(NPN),to meet different wiring requirements of field devices.CC-PDOB01 also has built-in overload protection and short circuit protection functions,which can effectively protect the output module and on-site execution mechanism,improving the safety of the system.In order to facilitate users in identifying on-site status and troubleshooting,HONEYWELL CC-PDOB01 provides clear output status indicators.Some models of CC-PDOB01 modules also support redundant configurations,which can provide higher system availability when used in conjunction with redundant controllers and I/O buses.With its high density,powerful driving capability,and comprehensive protection functions,HONEYWELL CC-PDOB01 Digital Output Module demonstrates excellent digital output control capabilities in various industrial applications.

technical specifications

Product model:CC-PDOB01

manufacturer:HONEYWELL

Product type:Digital output module

Number of output channels:32

Output voltage:24 VDC(typical),supports higher voltages

Output type:source type(PNP)or drain type(NPN)configurable

Overload protection:built-in

Short circuit protection:built-in

Working temperature:-40°C to+70°C(some models)

Power requirement:24 VDC(provided through I/O Termination Assembly IOTA)

Installation method:Install on I/O Termination Assembly(IOTA)

Main features and advantages

High channel density:HONEYWELL CC-PDOB01 Digital Output Module provides up to 32 digital output channels on a single module,effectively reducing the hardware cost and control cabinet space occupation of the system.

Powerful driving capability:Each output channel has a certain current driving capability,which can directly drive various commonly used industrial actuators.

Flexible output type selection:Supports source type(PNP)or drain type(NPN)output configurations,making it easy to connect with different types of field devices.

Built in protection function:Each output channel is equipped with overload protection and short circuit protection functions,effectively protecting the output module and on-site execution mechanism,and improving the safety of the system.

Supporting redundant configuration:Some models support redundant operations and can be used in conjunction with redundant controllers and I/O buses to improve system availability and fault tolerance.

Clear output status indication:Provide output status indication for each channel,facilitating users to distinguish and debug on-site status.

With Expert®PKS seamless integration:as an expert®As part of Series C I/O products,HONEYWELL CC-PDOB01 is capable of integrating with Honeywell’s C300 controller and other Experts®Perfect integration of components to build a unified control system.

application area

HONEYWELL CC-PDOB01 Digital Output Module is widely used in various industrial automation fields to control digital actuators on site

Process control:Control solenoid valves,pneumatic valves,hydraulic valves,etc.to achieve on/off control of fluids,gases,etc.

Factory automation:control motor start/stop,conveyor start/stop,mechanical manual operation,etc.

Safety system:Drive safety interlock devices,emergency stop button indicator lights,etc.

Alarm system:drives sound and light alarms,indicator lights,etc.,providing equipment status and fault alarms.

Equipment start stop control:Control the power switch of various industrial equipment.

Any industrial application that requires reliable,high-density digital output control.

Related products

HONEYWELL CC-PDIL01 Digital Input Module：Used to receive input signals from on-site digital devices and work in conjunction with CC-PDOB01 to form a complete digital I/O system.

HONEYWELL CC-TDOB01 Digital Output Termination Assembly：On site wiring terminal board for CC-PDOB01 module.

HONEYWELL C300 Controller:Experion®The core control unit of PKS is used in conjunction with I/O modules such as CC-PDOB01.

HONEYWELL FTE bus interface module:used to connect C300 controller and I/O module.

Various industrial digital actuators,such as solenoid valves,relays,contactors,indicator lights,etc.,are used as control objects for the CC-PDOB01 module.

Installation and maintenance

Preparation before installation:Before installing HONEYWELL CC-PDOB01 Digital Output Module,please refer to the relevant Honeywell Expert®System installation manual and module specification sheet.Ensure that the control cabinet is correctly installed and powered.Carefully install the CC-PDOB01 module onto its corresponding I/O Termination Assembly(IOTA),ensuring a secure connection.According to the wiring requirements of the on-site execution mechanism,prepare the corresponding signal cables and connect them correctly to the output terminals of IOTA according to the wiring diagram.Carefully check the wiring of each channel to ensure that the power and control lines are connected correctly.Select the appropriate output type(source or drain)and perform the corresponding wiring according to the power type and control requirements of the on-site equipment.If redundant modules need to be configured,please follow the manual instructions to make the corresponding hardware connections and software configurations.

Maintenance suggestion:HONEYWELL CC-PDOB01 Digital Output Module itself has low maintenance requirements.It is recommended to regularly check whether the module is securely connected to IOTA,whether the signal cable connection is reliable,and whether there is any looseness or damage.Keep the surface of the module clean and avoid dust accumulation that affects heat dissipation.Regularly check the working status of on-site actuators and whether the response of control signals is normal.

Product Guarantee

Honeywell’s expertise®The series of products provide comprehensive quality assurance.HONEYWELL CC-PDOB01 Digital Output Module undergoes strict quality inspection and performance testing before leaving the factory to ensure compliance with relevant industry standards and Honeywell’s quality requirements.
