Description

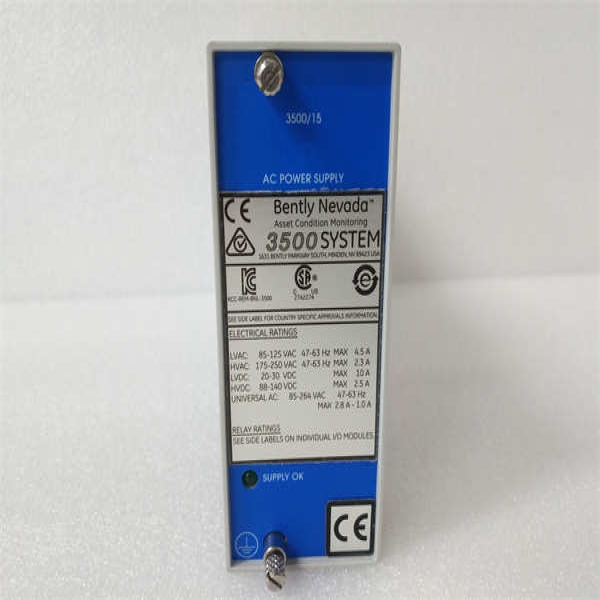

The Bently Nevada 3500/15 106M1079-01 AC and DC power modules are key components in the Bently Nevada 3500 series mechanical protection system.As a core component of an online monitoring and protection solution,the Bently Nevada 3500/15 power module is designed to provide stable and reliable power supply for the entire 3500 rack,ensuring continuous monitoring and safe operation of critical mechanical equipment.The model 106M1079-01 specifically refers to a universal AC power module in this series,which can accept a wide range of AC input voltages and convert them into stable DC voltages required by the 3500 system.In automation systems,especially in applications that require status monitoring and protection of rotating machinery,the stable operation of the Bently Nevada 3500/15 106M1079-01 power module is the cornerstone of the overall system reliability,directly related to equipment safety and production continuity.This module is designed as a half height module and can be installed in a dedicated slot on the left side of the 3500 rack.It supports single power or dual redundant power configurations,further enhancing the reliability of the system.

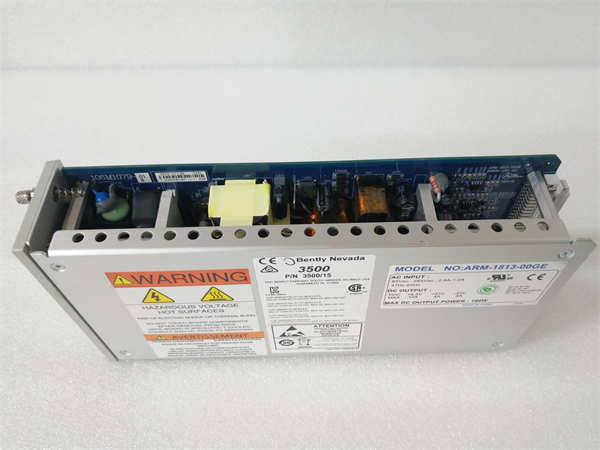

3500/15 106M1079-01 BENTLY

technical specifications

Product model:3500/15 106M1079-01

manufacturer:Bently Nevada(Baker Hughes)

Product type:AC power module

Input voltage:85~264 Vac rms(universal AC)

Input frequency:47~63 Hz

Maximum input current:2.8 A rms(maximum)

Output voltage:meets the requirements of the 3500 system backplane

Output power:200 W to 500 W(depending on specific load)

Working temperature:-30°C to+65°C

Storage temperature:-40°C to+85°C

Relative humidity:95%,non condensing

Installation method:3500 series rack specific half height slot

Dimensions(height x width x depth):120.7 mm x 50.8 mm x 251.5 mm(module body)

Weight:1.39 kg(module body)

Main features and advantages

The Bently Nevada 3500/15 106M1079-01 AC power module is an essential key component of the 3500 mechanical protection system,with multiple significant features and advantages.Its universal AC input voltage range enables it to adapt to various global power supply standards,simplifying the deployment and application of the system worldwide.This semi high modular design allows for the installation of a single or redundant power supply in a 3500 rack.Redundant configuration can significantly improve system availability,and even in the event of a main power failure,the backup power supply can seamlessly take over,ensuring the continuous operation of the system.The Bently Nevada 3500/15 power module is capable of providing stable and reliable power to all monitoring modules,interface modules,and relay modules within the entire rack,ensuring accurate data collection and effective execution of protection functions.

Reliable and Stable:The Bently Nevada 3500/15 106M1079-01 AC power module adopts an industrial grade design,which can operate stably over a wide temperature range and adapt to harsh industrial environments.Its built-in overvoltage and overcurrent protection mechanisms can effectively protect itself and connected 3500 system modules from electrical faults,improving the overall safety of the system.In addition,the module is equipped with a power status indicator LED,which facilitates users to quickly understand the operating status of the power module.The design of the Bently Nevada 3500/15 power module fully considers compatibility with the 3500 system,enabling seamless integration with other modules and simplifying system configuration and maintenance.

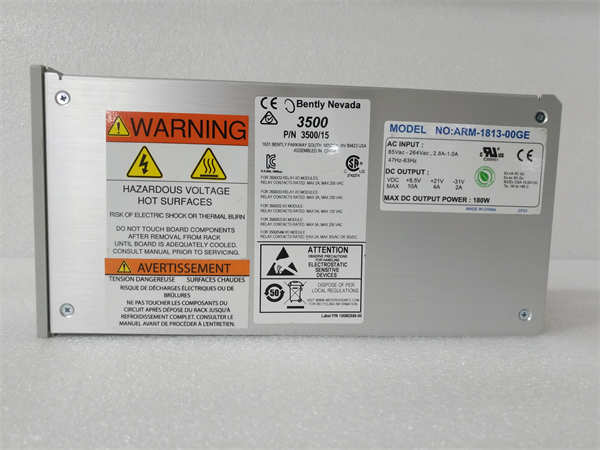

3500/15 106M1079-01 BENTLY

application area

The Bently Nevada 3500/15 106M1079-01 AC power module is the core power supply unit of the Bently Nevada 3500 mechanical protection system,widely used in various industrial fields that require online monitoring and protection of rotating machinery

Oil and natural gas:used for monitoring and protecting vibration,temperature,and other parameters of key equipment such as compressors,pumps,and turbines.

Power generation industry:used for online status monitoring and fault diagnosis of large rotating equipment such as steam turbines,gas turbines,and generators.

Chemical industry:used for monitoring the operating status of key equipment such as reactors,mixers,pumps,etc.,to ensure the safety and stability of the production process.

Steel industry:used for vibration monitoring of equipment such as fans,pumps,and rolling mills,reducing equipment failure rates and improving production efficiency.

Other heavy industries:Any industry that relies on the operation of large rotating machinery,such as papermaking,cement,mining,etc.,requires the use of Bently Nevada 3500/15 systems to ensure the safe operation of equipment,and the 106M1079-01 AC power module is the power foundation of these systems.

Related products

The products related to Bently Nevada 3500/15 106M1079-01 AC power module include:

Bently Nevada 3500/05：3500 series rack,used for installing power modules,monitoring modules,interface modules,etc.

Bently Nevada 3500/15(other models):Includes DC power modules such as low voltage DC power modules and high voltage DC power modules to accommodate different power input requirements.

Bently Nevada 3500/22M：Transient Data Interface Module(TDI)is used for system configuration,data acquisition,and communication.

Bently Nevada 3500 series monitoring modules,such as vibration monitoring module,temperature monitoring module,displacement monitoring module,etc.,are used to collect various mechanical parameters.

Bently Nevada 3500/32M/33：Relay module,used to output alarm and protection actions.

Bently Nevada Keyphasor module:used to provide speed and phase reference signals.

Preparation before installation:Before installing the Bently Nevada 3500/15 106M1079-01 AC power module,please refer to the installation manual of the Bently Nevada 3500 system.Confirm that the power slot type of the rack is compatible with the module.Check if the appearance of the power module is intact and there is no physical damage.Prepare the required power cables and ensure that the input power meets the specifications of Bently Nevada 3500/15 106M1079-01.Before making any electrical connections,be sure to disconnect the power supply of the rack to ensure safe operation.Insert the power module into the designated power slot on the left side of the 3500 rack and ensure that the connector is fully engaged.If redundant power supply needs to be configured,two Bently Nevada 3500/15 power modules need to be installed.

Maintenance recommendation:Bently Nevada 3500/15 106M1079-01 AC power modules typically have high reliability and low daily maintenance requirements.It is recommended to regularly check whether the connection of the power module is secure and whether the cables are loose or damaged.Keep the surface of the module clean to prevent dust and dirt from accumulating and affecting heat dissipation.Regularly check the ventilation of the rack to ensure that the power module operates within the allowable temperature range.Prevent the module from being subjected to severe impacts and vibrations.If any abnormal operation is found in the Bently Nevada 3500/15 power module,such as abnormal power indicator lights or unstable system power supply,please contact Bently Nevada technical support for maintenance in a timely manner.Do not disassemble or repair it yourself.It is recommended to follow Bently Nevada’s maintenance manual for regular inspections to extend the lifespan of the power module and ensure stable system operation.

3500/15 106M1079-01 BENTLY

Product Guarantee

Bently Nevada(Baker Hughes)provides comprehensive quality assurance for its 3500/15 106M1079-01 AC power module.All Bently Nevada 3500/15 power modules undergo rigorous testing and quality control before leaving the factory to ensure their performance and reliability meet industry standards.
