Description

The Bently Nevada 128229-01 Prox/Seismic Input/Output Module is an important component of the Bently Nevada 3500 Mechanical Protection System.As a connector to Proximitors®The Bently Nevada 128229-01 module is responsible for receiving raw signals from sensors and transmitting them safely and reliably to the monitoring module of the 3500 system(such as the 3500/42M),which is a critical interface between sensors and seismic sensors.This module does not directly perform signal conditioning and alarm processing,but serves as a matching I/O terminal board for monitoring modules such as Bently Nevada 3500/42M,simplifying the wiring of on-site sensors and providing necessary signal connections and isolation.The Bently Nevada 128229-01 Prox/Seismic Input/Output Module is designed to improve the reliability and ease of maintenance of the system,ensuring the integrity of sensor signals through clear terminal layout and reliable connection methods,thereby laying a solid foundation for subsequent precision monitoring and protection functions.In mechanical protection applications that require the simultaneous use of proximity sensors and velocity/acceleration sensors(seismic sensors),the Bently Nevada 128229-01 module is an essential connecting bridge.

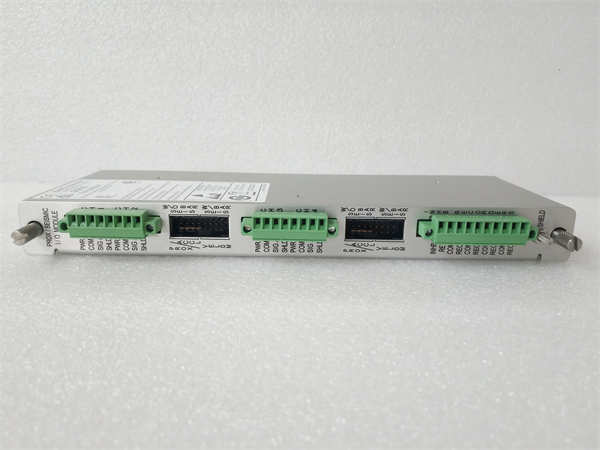

128229-01 BENTLY

technical specifications

Product Model:128229-01

manufacturer:Bently Nevada(Baker Hughes)

Product Type:I/O Module for Proximitors/Seismic

Applicable monitoring modules:Bently Nevada 3500/42M,etc

Input signal:from Proximitor®Raw signals from sensors and seismic sensors

Output signal:The raw sensor signal transmitted to the monitoring module

Terminal type:Wiring terminal

Connector type:connector connected to 3500 rack monitoring module

Installation method:Connect to the I/O slot of the 3500 rack

Main features and advantages

Bently Nevada 128229-01 Prox/Seismic Input/Output Module,as an important interface component of the 3500 system,has the following significant features and advantages.Its main function is to simplify sensor wiring and facilitate on-site Proximitors through clear terminal layout®The connection between sensors and seismic sensors avoids complex direct wiring to monitoring modules,improving installation efficiency and maintenance convenience.The Bently Nevada 128229-01 module is capable of reliably transmitting sensor signals,ensuring the integrity of raw signals and providing assurance for precise signal conditioning and processing in subsequent monitoring modules.As a dedicated component of the 3500 system,Bently Nevada 128229-01 has good compatibility with the 3500 rack and monitoring module,ensuring the stability and reliability of the system.

Easy to install and maintain:The Bently Nevada 128229-01 module features a plug-in design that facilitates installation and replacement in a 3500 rack,reducing maintenance time.Its clear terminal identification helps operators to quickly and accurately perform on-site wiring,reducing the risk of wiring errors.The design of Bently Nevada 128229-01 module takes into account the durability of industrial environments and can adapt to a certain temperature and humidity range.

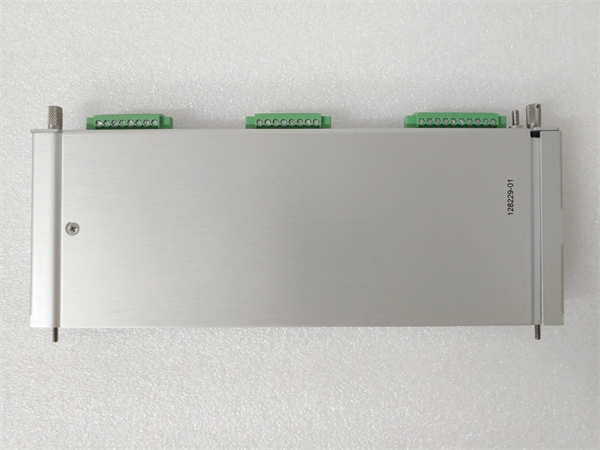

128229-01 BENTLY

application area

The Bently Nevada 128229-01 Prox/Seismic Input/Output Module is an essential component of the Bently Nevada 3500 Mechanical Protection System and is widely used for monitoring shaft vibration simultaneously(using Proximitors)®Application of rotating machinery protection for sensors and casing vibrations(using seismic sensors):

Oil and gas:used for monitoring bearing vibration and casing vibration of key equipment such as large compressors,pumps,and turbines.

Power generation industry:used for monitoring shaft vibration and casing vibration of equipment such as steam turbines,gas turbines,water turbines,and generators,providing basic signals for condition monitoring and fault diagnosis.

Chemical industry:applied to vibration monitoring of key equipment such as pumps,compressors,fans,and mixers to achieve early fault warning and protection.

Steel industry:used for vibration monitoring of large fans,pumps,rolling mills and other equipment to ensure stable operation of production lines.

Other heavy industries:Any industry that requires comprehensive vibration monitoring of critical rotating machinery requires the use of the Bently Nevada 3500 system,and the 128229-01 module is a critical interface for connecting different types of sensors.

Related products

The products related to Bently Nevada 128229-01 Prox/Seismic Input/Output Module include:

Bently Nevada 3500/42M：The preamplifier/seismic monitor is used to receive signals from module 128229-01,perform signal conditioning and alarm processing.

Bently Nevada Proximitor®Sensor:used to measure parameters such as radial vibration and axial position of the shaft,and the signal is transmitted to the monitor through module 128229-01.

Bently Nevada seismic sensor(velocity and acceleration sensor):used to measure the absolute vibration of the casing,and the signal is transmitted to the monitor through module 128229-01.

Bently Nevada 3500/05：3500 series rack,used for installing 128229-01 module and monitoring module.

Bently Nevada 3500/22M：Transient Data Interface Module(TDI)is used to configure the 3500 system and perform data acquisition.

Preparation before installation:Before installing the Bently Nevada 128229-01 Prox/Seismic I/O module,please refer to the installation manual of the Bently Nevada 3500 system.Confirm that there are available I/O module slots in the rack and ensure compatibility with module 128229-01.Check if the appearance of the module is intact and there is no physical damage.Prepare for on-site Proximitors®Signal cables that match the sensors and seismic sensors.Before making any electrical connections,be sure to disconnect the power supply of the rack to ensure safe operation.Insert the Bently Nevada 128229-01 module into the designated I/O module slot in the 3500 rack and ensure that the connector is fully engaged.Connect from Proximitors according to the wiring diagram®The signal cables of sensors and seismic sensors are connected to the corresponding terminals of module 128229-01.

Maintenance recommendation:Bently Nevada 128229-01 Prox/Seismic input/output modules typically have high reliability and low daily maintenance requirements.It is recommended to regularly check whether the module is securely connected in the rack and whether the signal cables are loose or damaged.Keep the surface of the module clean to avoid the accumulation of dust and dirt that may affect the reliability of the connection.Regularly check the ventilation of the rack to ensure that the module operates within the allowable temperature range.Prevent the module from being subjected to severe impacts and vibrations.If any abnormal connection or unstable sensor signal transmission is found in the Bently Nevada 128229-01 module,the cable connection should be checked in a timely manner.If necessary,contact Bently Nevada technical support for maintenance.Do not disassemble or repair it yourself.It is recommended to follow Bently Nevada’s maintenance manual for regular inspections to ensure stable module operation and system reliability.

128229-01 BENTLY

Product Guarantee

Bently Nevada(Baker Hughes)provides comprehensive quality assurance for its 128229-01 Prox/seismic input/output module.All Bently Nevada 128229-01 modules undergo rigorous testing and quality control before leaving the factory to ensure their performance and reliability meet industry standards.
