Description

The TRICONEX 3301 digital input module is a crucial input interface component in the TRICONEX Trident Safety Instrumented System(SIS).The TRICONEX 3301 module is designed to receive various digital sensor and switch signals from the field,such as limit switches,emergency stop buttons,valve position indications,etc.,and safely and reliably transmit these discrete states to the core of the Trident controller for logic processing and safety decision-making.As a key component of the TRICONEX Trident system’s iconic Triple Redundancy(TMR)architecture,the TRICONEX 3301 module typically includes three completely independent input channels,each independently processing field data and ensuring the accuracy and reliability of input signals through the system’s internal voting mechanism.This design concept effectively eliminates the risk of single point of failure,enabling the TRICONEX 3301 to provide excellent reliability and safety in harsh industrial environments,meeting the safety requirements of SIL 3 level.In the entire safety instrumented system,the stable operation of the TRICONEX 3301 digital input module is a key link in ensuring factory safety.Its high reliability and comprehensive diagnostic functions provide a solid data foundation for the implementation of various safety protection functions.

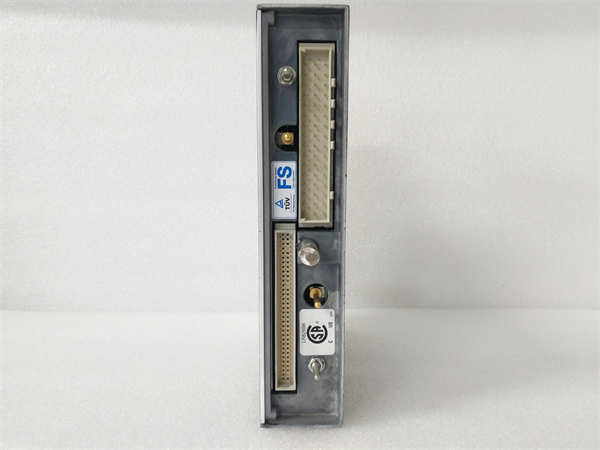

3301 TRICONEX

technical specifications

Product model:3301(also commonly referred to as DI3301)

Manufacturer:TRICONEX(now a brand under Schneider Electric)

Product type:Digital Input Module

Series:Trident

Number of input channels:32(shared reference point)

Nominal input voltage:24 VDC

Working voltage range:15-30 VDC

Maximum input voltage:33 VDC

Input impedance:≫30 kΩ(without substrate),≈3 kΩ(with substrate)

Input delay:≪10 ms(On to Off or Off to On)

Diagnostic function:Each channel has complete online diagnostic functions,including disconnection detection,etc

Working temperature:-40°C to+70°C(depending on the specific model)

Relative humidity:5%to 95%(non condensing)

Installation method:Triconex Trident rack slot installation

Main features and advantages

The TRICONEX 3301 digital input module is a key component in building high reliability safety instrumented systems,and its outstanding features and advantages make it the preferred choice for safety critical applications.The most significant advantage lies in its triple redundant(TMR)input channels,where each channel independently collects and processes on-site signals,and ensures the accuracy and reliability of input data through the system’s internal voting mechanism,thereby eliminating the risk of single point failures and ensuring high availability of the system.The TRICONEX 3301 provides up to 32 digital input channels,capable of simultaneously receiving and processing discrete signals from multiple field devices,meeting the monitoring needs of complex industrial processes.This module has a wide operating voltage range and can adapt to various standard 24 VDC input signals.The TRICONEX 3301 has a comprehensive online diagnostic function built-in,which can monitor the status of each input channel in real time,detect and report any potential faults in a timely manner,such as wire breakage,etc.,making it convenient for users to maintain and troubleshoot,further improving the safety of the system.In addition,the TRICONEX 3301 is designed to be compact,easy to install and maintain,and seamlessly integrated with other modules in the Trident series,creating a complete and highly reliable security protection solution suitable for various safety critical applications.

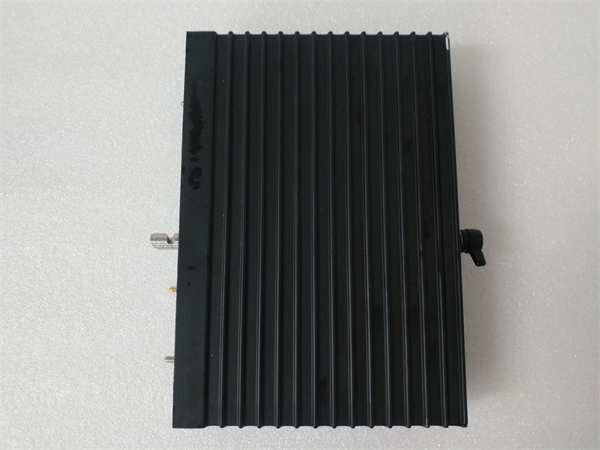

3301 TRICONEX

application area

The TRICONEX 3301 digital input module is widely used in various industrial fields with extremely strict safety requirements due to its high reliability and safety.As an important component of Safety Instrumented Systems(SIS),it is used to collect discrete signals from on-site safety equipment.Its typical application areas include:

Oil and gas industry:used for critical safety systems such as emergency stop systems(ESD),fire and gas detection systems(F&G),high integrity pressure protection systems(HIPPS),etc.,monitoring various safety interlock signals,such as emergency stop buttons,limit switches,valve position feedback,etc.

Chemical industry:applied to process safety control systems,reactor safety protection,leak detection and isolation systems,receiving discrete signals from safety sensors and switches,such as pressure switches,temperature switches,liquid level switches,etc.

Power industry:used for safety interlock,boiler protection,turbine protection and other systems in power plants,monitoring the status and safety signals of key equipment,such as protection interlock contacts,trip signals,etc.

Transportation industry:applied to railway signal systems and subway safety control systems,receiving safety related discrete inputs such as track status,signal light status,and safety door status.

Other high-risk industrial fields:For automation systems that require compliance with SIL 3 or higher safety levels,TRICONEX 3301 can provide reliable safety input signal acquisition for triggering and monitoring critical safety functions.

Related products

The TRICONEX Trident series products related to the TRICONEX 3301 digital input module include:

TRICONEX 2301:The substrate of the digital input module is used to provide electrical connections and signal interfaces.

TRICONEX DI3501E/DI3502E/DI3503E/DI3504E/DI3505E:Other models of digital input modules may have different characteristics or applicable scenarios.

TRICONEX 3625:Digital output module,used to drive safety actuators.

TRICONEX AI2351:Analog input module,used to receive safety signals from analog sensors.

TRICONEX AO2481:Analog output module,used to control analog actuators.

TRICONEX MP2101/MP2102/MP3008:The main processor module is used to execute security control logic and interact with input modules for data exchange.

Triconex rack:used for installing Triconex 3301 and other Triconex modules.

TriStation 1131:The programming and configuration software for TRICONEX,used for system configuration and diagnostics.

These modules together construct a complete TRICONEX Trident safety instrumented system solution,in which the TRICONEX 3301 plays a critical role in collecting safety input signals.

Installation and maintenance

Preparation before installation:Before installing the TRICONEX 3301 digital input module and its supporting substrate,please carefully read the installation manual and safety guide of the TRICONEX Trident safety system.Ensure that the installation environment meets the operating temperature,humidity,and EMC requirements of the module.Check if the appearance of the module and substrate is intact,and if the connectors are clean.Insert the TRICONEX 3301 module into its corresponding substrate connector and secure it in the designated slot of the TRICONEX Trident rack.According to the safety wiring diagram,connect the signal line of the on-site digital input device to the corresponding terminal of the substrate.It is necessary to use cables and connection methods that comply with safety standards,and ensure that the wiring is firm and reliable.As it is a safety related equipment,the installation process must be carried out by personnel who have received professional training and possess the qualifications for installing safety instrumented systems.

Maintenance suggestion:In order to ensure the long-term safe and reliable operation of the TRICONEX 3301 digital input module and the entire TRICONEX Trident security system,it is recommended to strictly follow the maintenance manual provided by TRICONEX for regular maintenance.Regularly check the connection cables between the module and the substrate for looseness or damage,and promptly handle any issues found.Keep the surrounding environment of the module and substrate clean,avoid dust and debris accumulation,which may affect heat dissipation and module operation.Regularly check whether the connected on-site digital input devices are working properly.It is recommended to conduct regular functional testing and safety circuit verification to validate the effectiveness of the entire safety system.Any changes to the hardware or wiring of the security system should comply with relevant safety regulations and undergo comprehensive testing and verification.It is recommended that maintenance and repairs be carried out by professionals who have been certified by Triconex or have the corresponding qualifications for maintaining safety systems.

3301 TRICONEX

Product Guarantee

TRICONEX(now a brand under Schneider Electric)provides comprehensive product quality assurance for its 3301 digital input module.All products undergo strict testing and inspection before leaving the factory to ensure that their performance meets technical specifications and safety certification requirements.
