Description

The TRICONEX 3381 pulse input module is a key component used in the TRICONEX Trident Safety Instrumented System(SIS)for precise acquisition of high-speed pulse signals.The TRICONEX 3381 module is designed to receive various pulse output devices from the field,such as flow meters,encoders,tachometers,etc.,and safely and reliably transmit these rapidly changing digital signals to the core of the Trident controller for logic processing and safety monitoring.As an important component of the iconic Triple Redundancy(TMR)architecture of the TRICONEX Trident system,the TRICONEX 3381 module typically includes multiple independent pulse input channels,each of which independently processes on-site data and ensures the accuracy and reliability of input signals through the system’s internal voting mechanism,especially in high-speed signal acquisition scenarios.This design concept effectively eliminates the risk of single point of failure,enabling the TRICONEX 3381 to provide excellent reliability and safety in harsh industrial environments,meeting the safety requirements of SIL 3 level.The TRICONEX 3381 pulse input module has high resolution and fast response speed,and can accurately measure parameters such as frequency and speed,providing a key data foundation for the implementation of various safety protection functions.

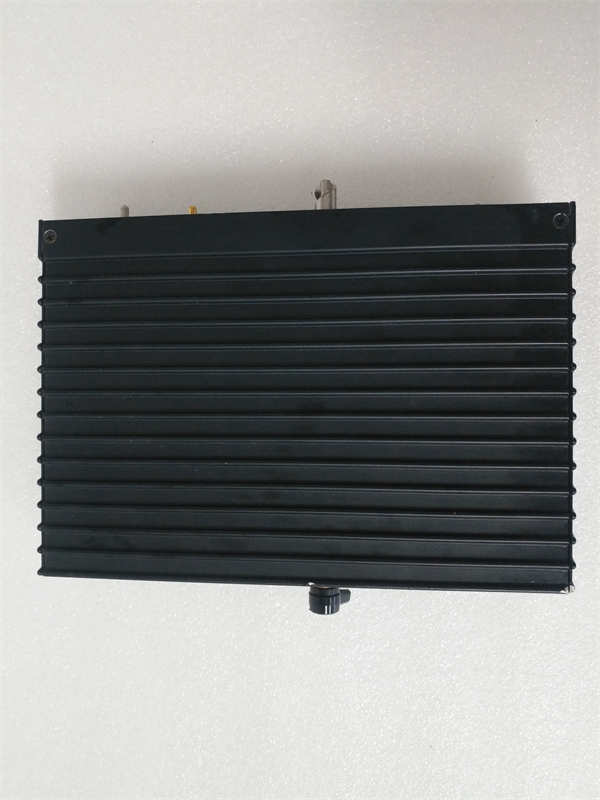

3381 TRICONEX

technical specifications

Product model:3381(also commonly referred to as PI3381)

Manufacturer:TRICONEX(now a brand under Schneider Electric)

Product type:Pulse Input Module

Series:Trident

Number of input channels:8(isolated channels,common ground)

Input type:differential

Sensor compatibility:magnetic,active,open collector

Maximum operating voltage;±33 VDC

Minimum operating voltage(differential):500 mV P-P(2 Hz to 32 kHz),1 V P-P(0.5 Hz to 2 Hz)

Minimum operating voltage(single ended):1 V P-P(2 Hz to 32 kHz),2 V P-P(0.5 Hz to 2 Hz)

Input frequency range:0.5 Hz to 32 kHz

Resolution:24 bits

Diagnostic function:Precision reference testing

Working temperature:-40°C to+70°C(depending on the specific model)

Relative humidity:0%to 95%(non condensing)

Installation method;Triconex Trident rack slot installation

Main features and advantages

The TRICONEX 3381 pulse input module is a key component for high-speed and accurate pulse signal acquisition in building high reliability safety instrument systems.Its most significant advantage lies in its triple redundant(TMR)input channels,where each channel independently collects and processes on-site pulse signals,and ensures the accuracy and reliability of input data through the system’s internal voting mechanism,thereby eliminating the risk of single point failures and ensuring high availability of the system.TRICONEX 3381 provides up to 8 isolated pulse input channels,capable of simultaneously receiving and processing data from multiple on-site pulse output devices,meeting the monitoring requirements of complex industrial processes.This module has high precision and resolution,and can accurately measure parameters such as frequency and speed,providing reliable process variable data for safety systems.TRICONEX 3381 supports multiple sensor types,including magnetic,active,and open collector sensors,providing flexible on-site device connection solutions.This module has a comprehensive online diagnostic function built-in,which can monitor the status of each input channel in real time,detect and report any potential faults in a timely manner,facilitate user maintenance and troubleshooting,and further improve the safety of the system.In addition,TRICONEX 3381 has a fast response speed and can capture changes in high-speed pulse signals in real time,ensuring that the safety system can respond in a timely manner.

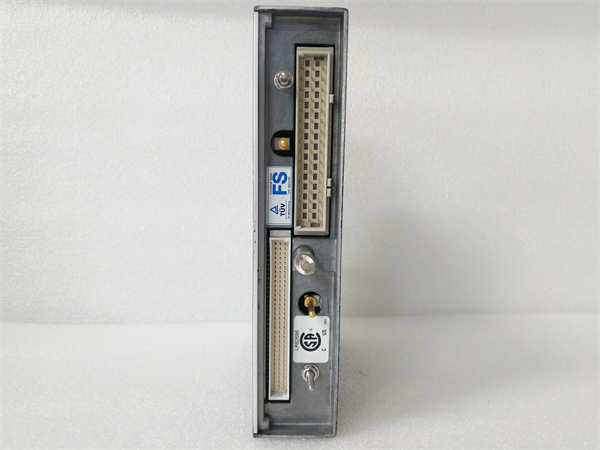

3381 TRICONEX

application area

The TRICONEX 3381 pulse input module,with its high precision,high reliability,and precise acquisition capability for high-speed signals,is widely used in various industrial fields with extremely strict safety requirements.As an important component of Safety Instrumented Systems(SIS),it is used to receive signals from on-site pulse output devices.Its typical application areas include:

Oil and gas industry:used to monitor pulse signals of flow meters,turbine speeds,pump speeds,and other equipment,providing critical speed and flow data for emergency shutdown systems(ESD)and other safety interlock systems.

Chemical industry:applied to process safety control systems,used to connect various pulse output sensors,monitor parameters such as flow rate and total amount of reaction materials,and ensure process safety.

Power industry:used for monitoring turbine speed and feed pump flow in power plants,providing important process data for safety protection systems and preventing dangerous situations such as overspeed.

Transportation industry:applied to railway and subway safety control systems,used to connect encoders and other equipment,monitor safety related parameters such as train speed and position.

In other high-risk industrial fields,TRICONEX 3381 is an ideal choice for automation systems that require SIL 3 or higher safety levels and precise measurement of high-speed pulse signals.

Related products

The TRICONEX Trident series products related to the TRICONEX 3381 pulse input module include:

TRICONEX 2381:The substrate of the pulse input module is used to provide electrical connections and signal interfaces.

TRICONEX DI3301:Digital input module,used to receive discrete signals on site.

TRICONEX AI2351:Analog input module,used to receive safety signals from analog sensors.

TRICONEX DO3401:Digital output module,used to drive safety actuators.

TRICONEX AO2481:Analog output module,used to control analog actuators.

TRICONEX MP2101/MP2102/MP3008:The main processor module is used to execute security control logic and interact with input modules for data exchange.

Triconex rack:used for installing Triconex 3381 and other Triconex modules.

TriStation 1131:The programming and configuration software for TRICONEX,used for system configuration and diagnostics.

These modules together form the complete TRICONEX Trident safety instrumented system solution,in which the TRICONEX 3381 plays a critical role in high-speed pulse signal acquisition.

Installation and maintenance

Preparation before installation:Before installing the TRICONEX 3381 pulse input module and its supporting substrate,please carefully read the installation manual and safety guide of the TRICONEX Trident safety system.Ensure that the installation environment meets the operating temperature,humidity,and EMC requirements of the module.Check if the appearance of the module and substrate is intact,and if the connectors are clean.Insert the TRICONEX 3381 module into its corresponding substrate connector and secure it in the designated slot of the TRICONEX Trident rack.According to the safety wiring diagram,connect the signal line of the on-site pulse output device to the corresponding terminal of the substrate,and make sure to use shielded cables and ground them correctly to reduce noise interference and ensure the accuracy of signal transmission.According to the sensor type and wiring requirements,configure the terminal resistors and pull-up/pull-down resistors on the substrate.As it is a safety related equipment,the installation process must be carried out by personnel who have received professional training and possess the qualifications for installing safety instrumented systems.

Maintenance suggestion:In order to ensure the long-term safe and reliable operation of the TRICONEX 3381 pulse input module and the entire TRICONEX Trident safety system,it is recommended to strictly follow the maintenance manual provided by TRICONEX for regular maintenance.Regularly check the connection cables between the module and the substrate for looseness or damage,and promptly handle any issues found.Keep the surrounding environment of the module and substrate clean,avoid dust and debris accumulation,which may affect heat dissipation and module operation.Regularly check whether the connected on-site pulse output equipment is working properly and whether the signal output is stable and accurate.It is recommended to conduct regular functional testing and safety circuit verification to verify the accuracy of the pulse input channel and the effectiveness of the overall safety function.Any changes to the hardware or wiring of the security system should comply with relevant safety regulations and undergo comprehensive testing and verification.It is recommended that maintenance and repairs be carried out by professionals who have been certified by Triconex or have the corresponding qualifications for maintaining safety systems.

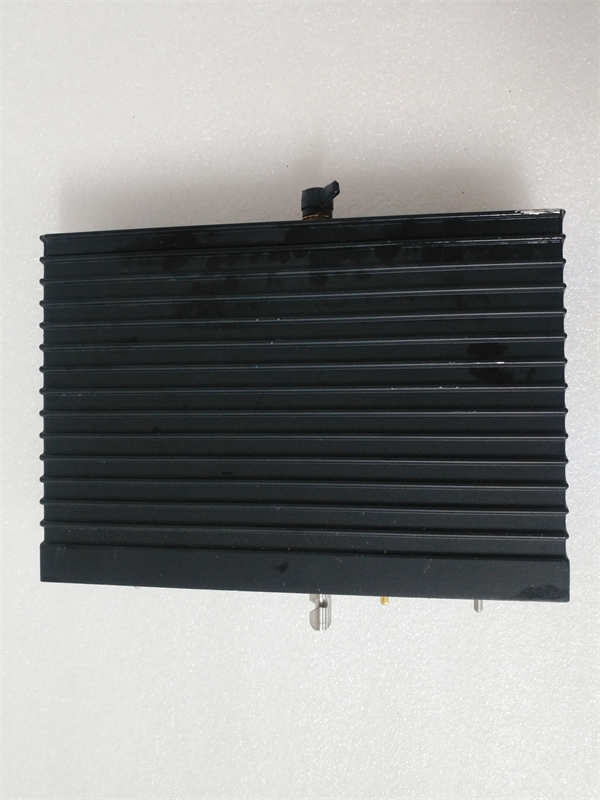

3381 TRICONEX

Product Guarantee

TRICONEX(now a brand under Schneider Electric)provides comprehensive product quality assurance for its 3381 pulse input module.All products undergo strict testing and inspection before leaving the factory to ensure that their performance meets technical specifications and safety certification requirements.
