Description

The TRICONEX 3401 digital output module is a key component used in the TRICONEX Trident Safety Instrumented System(SIS)to safely and reliably drive discrete actuators on site.The TRICONEX 3401 module is designed to receive safety instructions from Trident safety control processors,convert them into drive signals,and control field devices such as safety valves,relays,contactors,and alarms to perform necessary safety actions and ensure the safe operation of industrial processes.As an important component of the TRICONEX Trident system’s iconic Triple Redundancy(TMR)architecture,the TRICONEX 3401 module typically includes three completely independent output channels,each of which independently receives control signals and drives the corresponding output circuit.Through the system’s internal”two out of two”or”three out of three”voting mechanism,the correctness and reliability of output instructions are ensured.This design concept effectively eliminates the risk of single point of failure,enabling the TRICONEX 3401 to provide excellent reliability and safety in harsh industrial environments,meeting the safety requirements of SIL 3 level.The TRICONEX 3401 digital output module has comprehensive online diagnostic functions,which can monitor the status of each output channel in real time,report any potential faults in a timely manner,and provide a solid guarantee for the stable operation of the safety system.

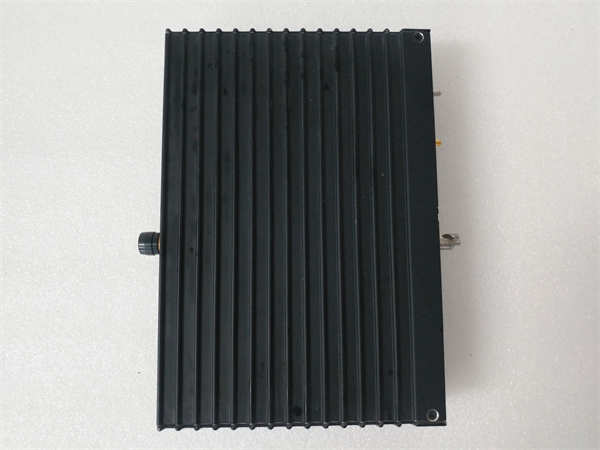

3401 TRICONEX

technical specifications

Product model:3401(also commonly referred to as DO3401)

Manufacturer:TRICONEX(now a brand under Schneider Electric)

Product type:Digital Output Module

Series:Trident

Number of output channels:16(common ground)

Nominal output voltage:24 VDC

Working voltage range:15-30 VDC

Absolute maximum output voltage:33 VDC

Maximum output current:3.0 A(self limiting current,typical value)

Diagnostic function:Each channel has complete online diagnostic functions,including open circuit,short circuit,power fault detection,and output circuit readback

Working temperature:-40°C to+70°C(depending on the specific model)

Relative humidity:5%to 95%(non condensing)

Installation method:Triconex Trident rack slot installation

Main features and advantages

The TRICONEX 3401 digital output module is a key component for safe execution in building high reliability safety instrumented systems.Its most significant advantage lies in its triple redundant(TMR)output channels,where each channel independently receives control instructions and drives the output.The system’s internal voting mechanism ensures the correctness and reliability of the output signal,thereby eliminating the risk of single point failures and ensuring high availability of the system.The TRICONEX 3401 provides up to 16 digital output channels,capable of simultaneously controlling multiple on-site discrete actuators to meet the safety action requirements of complex industrial processes.This module has a wide operating voltage range and can adapt to standard 24 VDC control voltage.The TRICONEX 3401 is equipped with comprehensive online diagnostic functions,which can monitor the status of each output channel in real time,detect and report any potential faults in a timely manner,such as open circuits,short circuits,and power failures,making it convenient for users to maintain and troubleshoot,further improving the safety of the system.In addition,the TRICONEX 3401 is designed to be compact,easy to install and maintain,and seamlessly integrated with other modules in the Trident series,creating a complete and highly reliable security protection solution suitable for various safety critical applications.

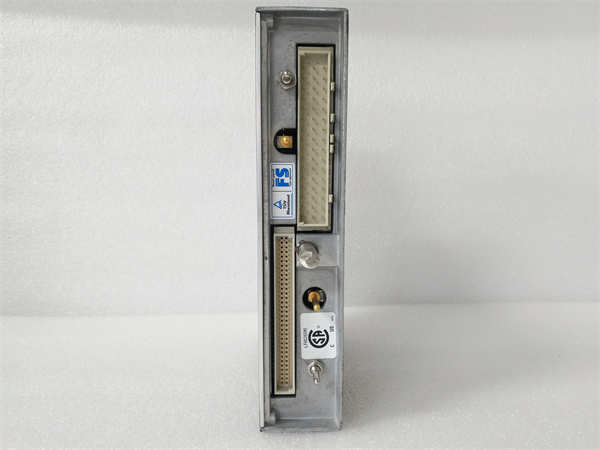

3401 TRICONEX

application area

The TRICONEX 3401 digital output module,with its high reliability and safety,is widely used in various industrial fields that require extremely strict safety requirements.As the final actuator of Safety Instrumented Systems(SIS),it drives various safety actuators to achieve safety functions.Its typical application areas include:

Oil and gas industry:used for critical safety systems such as emergency shutdown systems(ESD),fire and gas detection systems(F&G),high integrity pressure protection systems(HIPPS),etc.,driving emergency shutdown valves(ESVs),relief valves,fire dampers,alarms,and interlocking devices.

Chemical industry:applied to process safety control systems,reactor safety protection,leak detection and isolation systems,controlling safety valves,shut-off valves,discharge valves,etc.,executing emergency shutdown and safety interlock actions.

Power industry:used for safety interlocking,boiler protection,turbine protection and other systems in power plants,driving safety interlocking devices,emergency shutdown systems and related actuators.

Other high-risk industrial fields:For automation systems that require compliance with SIL 3 or higher safety levels,TRICONEX 3401 can provide reliable safety output driving capabilities to perform critical safety actions.

Related products

The TRICONEX Trident series products related to the TRICONEX 3401 digital output module include:

TRICONEX 2401:The substrate of the digital output module is used to provide electrical connections and signal interfaces.

TRICONEX DO3501E/DO3623T/DO3625:Other models of digital output modules may have different characteristics or applicable scenarios.

TRICONEX DI3301:Digital input module,used to receive discrete signals on site.

TRICONEX AI2351:Analog input module,used to receive safety signals from analog sensors.

TRICONEX AO2481:Analog output module,used to control analog actuators.

TRICONEX MP2101/MP2102/MP3008:The main processor module is used to execute security control logic and exchange data with the output module.

Triconex rack:used for installing Triconex 3401 and other Triconex modules.

TriStation 1131:The programming and configuration software for TRICONEX,used for system configuration and diagnostics.

These modules together form the complete TRICONEX Trident safety instrumented system solution,in which the TRICONEX 3401 plays a critical role as a driver for safety outputs.

Installation and maintenance

Preparation before installation:Before installing the TRICONEX 3401 digital output module and its supporting substrate,please carefully read the installation manual and safety guide of the TRICONEX Trident safety system.Ensure that the installation environment meets the operating temperature,humidity,and EMC requirements of the module.Check if the appearance of the module and substrate is intact,and if the connectors are clean.Insert the TRICONEX 3401 module into its corresponding substrate connector and secure it in the designated slot of the TRICONEX Trident rack.According to the safety wiring diagram,connect the control wires of the on-site actuator to the corresponding terminals on the substrate,using cables and connection methods that meet the requirements of the actuator,and ensuring that the wiring is firm and reliable.As it is a safety related equipment,the installation process must be carried out by personnel who have received professional training and possess the qualifications for installing safety instrumented systems.

Maintenance suggestion:In order to ensure the long-term safe and reliable operation of the TRICONEX 3401 digital output module and the entire TRICONEX Trident safety system,it is recommended to strictly follow the maintenance manual provided by TRICONEX for regular maintenance.Regularly check the connection cables between the module and the substrate for looseness or damage,and promptly handle any issues found.Keep the surrounding environment of the module and substrate clean,avoid dust and debris accumulation,which may affect heat dissipation and module operation.Regularly check whether the connected on-site actuators are working properly and whether their actions are reliable.It is recommended to conduct regular functional testing and safety circuit verification to validate the effectiveness of the entire safety system.Any changes to the hardware or wiring of the security system should comply with relevant safety regulations and undergo comprehensive testing and verification.It is recommended that maintenance and repairs be carried out by professionals who have been certified by Triconex or have the corresponding qualifications for maintaining safety systems.

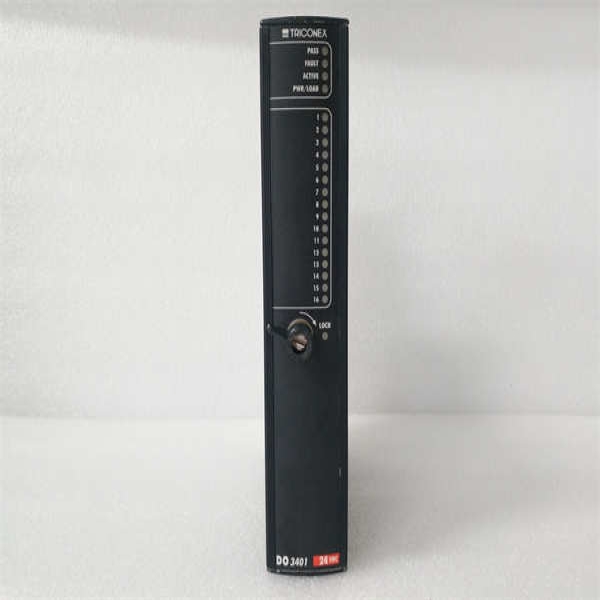

3401 TRICONEX

Product Guarantee

TRICONEX(now a brand under Schneider Electric)provides comprehensive product quality assurance for its 3401 digital output module.All products undergo strict testing and inspection before leaving the factory to ensure that their performance meets technical specifications and safety certification requirements.
