Description

The TriconeX 3009 Enhanced Main Processor(UMP)module is the core component of the Triconex Safety Instrumented System(SIS),designed specifically for critical safety applications.As part of the Triconex Tricon series,the 3009 UMP module is responsible for critical tasks such as executing security logic,managing system operations,and conducting advanced diagnostics.With its architecture based on Triple Modular Redundancy(TMR),the 3009 module provides excellent fault tolerance and high availability,ensuring that the system can operate safely and reliably in the event of hardware failures.The TRICONEX 3009 UMP module is capable of handling complex security algorithms and large amounts of process data,providing a solid security guarantee for high-risk industries such as oil and gas,chemical,and power.By seamlessly integrating with other modules of Triconex,the 3009 enhanced main processor module plays a crucial role in building highly reliable and secure industrial automation systems,ensuring the safety of factory personnel,equipment,and the environment.

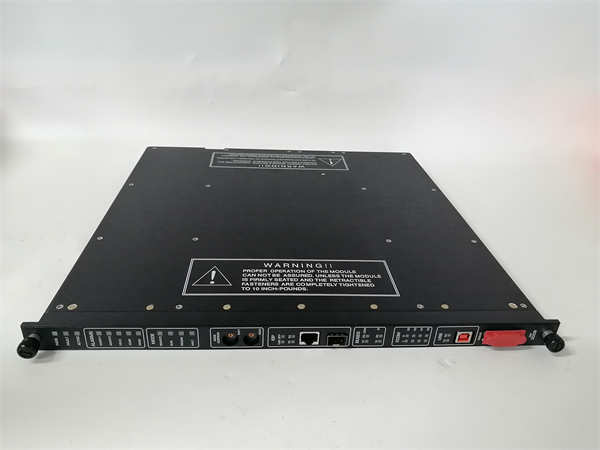

3009 TRICONEX

technical specifications

Product model:3009

Manufacturer:TRICONEX(now Schneider Electric)

Product Type:Enhanced Main Processor(UMP)Module

Belonging series:Tricon

Architecture:Triple Modular Redundancy(TMR)

Communication interface:compatible with TCM and UCM modules

Diagnostic function:Built in comprehensive diagnostic function

Installation method:Tricon rack installation

Main features and advantages

The TRICONEX 3009 Enhanced Main Processor(UMP)module is renowned for its outstanding reliability and powerful performance.Its core advantage lies in the adoption of Triple Modular Redundancy(TMR)architecture,which means that the key components inside the module are triple and operate independently of each other.The failure of any single component will not affect the overall functionality of the system,thus achieving extremely high fault tolerance and system availability.The 3009 module is capable of executing complex safety logic,meeting the requirements of various Safety Instrumented Functions(SIF),and providing fast response time to ensure timely safety measures can be taken in emergency situations.

Enhanced diagnostic capabilities:The 3009 UMP module is equipped with comprehensive diagnostic functions,which can continuously monitor its own operating status and the overall health of the system,detect and report potential faults in a timely manner,and simplify maintenance and troubleshooting processes.

Flexible communication interface:The 3009 module is compatible with Triconex’s Communication Module(TCM)and Unified Communication Module(UCM),supports multiple industrial communication protocols,and facilitates data exchange and integration with other control systems and upper computer systems.

Mature and reliable platform:The Triconex Tricon system is a time tested and mature security platform with a wide range of applications worldwide.The 3009 module,as its core processor,inherits its high reliability and stability characteristics.

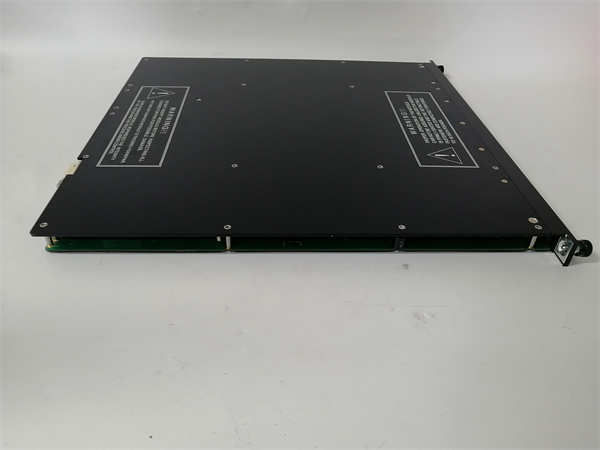

3009 TRICONEX

application area

The TRICONEX 3009 Enhanced Main Processor(UMP)module is widely used in various industrial fields that require high levels of security and reliability

Oil and gas:Used in high-risk environments such as offshore platforms,refineries,and chemical plants for Safety Instrumented Systems(SIS),such as Emergency Shutdown(ESD)systems,Fire and Gas Detection(F&G)systems,etc.

Chemical industry:applied to the safety control of various hazardous chemical production processes to prevent catastrophic accidents.

Electricity:Used in critical infrastructure such as nuclear power plants and thermal power plants for safety related control systems to ensure the safe operation of power plants.

Other high-risk industries,such as pharmaceuticals,metallurgy,and rail transit,can use the 3009 module for safety control systems that require SIL certification.

Related products

The products related to the TRICONEX 3009 Enhanced Main Processor(UMP)module include:

4351B/4352B/4355X:Triconex Communication Module(TCM),used to establish communication connections with external systems.

4610X:Triconex Unified Communication Module(UCM),providing more advanced communication functions.

Triconex safety I/O modules:such as analog input/output modules,digital input/output modules,etc.,used to connect field sensors and actuators.

Triconex rack:used for installing 3009 modules and other Triconex system modules.

Triconex TriStation 1131 programming software:used for configuring and programming the safety logic of the 3009 module.

Installation and maintenance

Preparation before installation:Before installing the 3009 Enhanced Main Processor(UMP)module,please refer to the installation manual of the Triconex Tricon system.Ensure that the installation environment meets the requirements of the Triconex system.Check if the 3009 module is intact and undamaged.According to the instructions in the manual,insert the 3009 module correctly into the designated CPU slot of the Tricon rack and ensure that the connector is securely connected.When connecting power and communication cables,please be sure to follow Triconex’s wiring specifications.

Maintenance suggestion:The TRICONEX 3009 Enhanced Main Processor(UMP)module typically requires lower maintenance.It is recommended to regularly check whether the module is securely connected in the rack.Observe the LED indicator lights on the module to ensure that the system is operating normally.Regularly check if the power supply is stable.Due to the redundancy design of the Tricon system,it is recommended to regularly check whether the redundancy switching function is working properly.All maintenance operations must be carried out by trained professionals in accordance with Triconex’s safety regulations.

3009 TRICONEX

Product Guarantee

TRICONEX(now Schneider Electric)provides standard quality assurance for the 3009 Enhanced Main Processor(UMP)module.
