Description

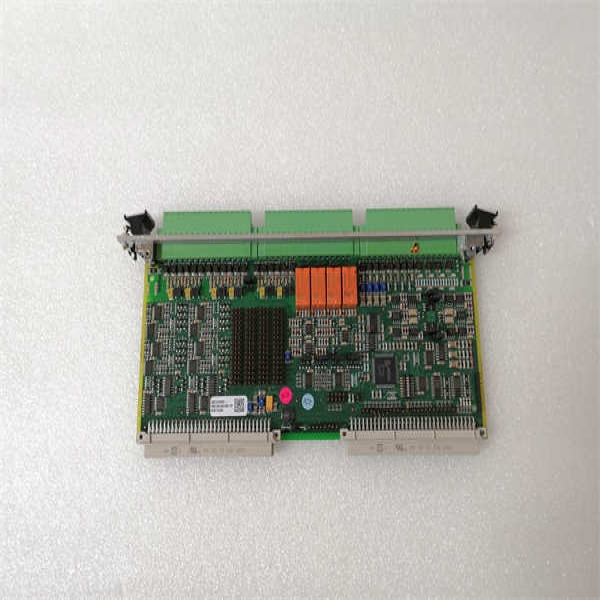

A key component in the 200-560-000-113 VM600 VIBRO mechanical protection system,specifically the VM600 IOC4T Input/Output Protection Card.As the signal interface core of the VM600 system,the 200-560-000-113 VM600 IOC4T aims to provide a safe and reliable signal connection,transmitting dynamic signals(such as vibration,shaft displacement,etc.)from on-site sensors to the processing module of VM600,and providing output interfaces for external alarm and control systems.The 200-560-000-113 VM600 IOC4T card has 4 dynamic signal input channels,each carefully designed to ensure signal integrity and accuracy,while providing necessary electrical isolation and protection to prevent external electrical interference from affecting the monitoring system.Through the 200-560-000-113 VM600 IOC4T,the VM600 system can efficiently collect status data of key machinery,providing a reliable data foundation for the protection,status monitoring,and fault diagnosis of rotating machinery,thereby improving equipment safety,availability,and operational efficiency.

200-560-000-113 VM600 VIBRO

technical specifications

Product model:200-560-000-113 VM600

manufacturer:VIBRO-METER(Meggitt Sensing Systems)

Product type:Input/Output Protection Card

Belonging series:VM600

Number of dynamic signal input channels:4

Input types:piezoelectric accelerometer,velocity sensor,proximity probes

Number of output channels:usually used for alarm and control

Output type:Relay output

Installation method:VM600 monitor rack slot

Main features and advantages

The 200-560-000-113 VM600 IOC4T input/output protection card exhibits the following significant characteristics and advantages in the field of mechanical protection:

Four channel dynamic signal input:200-560-000-113 VM600 IOC4T provides four independent dynamic signal input channels,which can simultaneously receive vibration,velocity or displacement signals from multiple sensors,achieving comprehensive coverage of key monitoring points.

Compatible with multiple sensor types:This card has a flexible design and is compatible with various commonly used mechanical state monitoring sensors such as piezoelectric accelerometers,velocity sensors,and eddy current sensors,making it convenient for users to choose the appropriate sensor according to their specific application needs.

Signal integrity guarantee:The 200-560-000-113 VM600 IOC4T adopts high-quality signal conditioning circuits to ensure the accuracy and integrity of input signals,providing a reliable foundation for subsequent data processing and analysis.

Electrical isolation and protection:each input channel is electrically isolated,effectively preventing interference between different sensors and between sensors and the monitoring system,improving the stability and reliability of the system,and protecting the safety of monitoring equipment.

Flexible output configuration:The 200-560-000-113 VM600 IOC4T typically also provides output channels for alarm and control,which can trigger external relays or other control devices based on set alarm limits to achieve timely fault warning and protection actions.

200-560-000-113 VM600 VIBRO

application area

The 200-560-000-113 VM600 IOC4T input/output protection card is a key component of the VIBRO-METER VM600 mechanical protection system,widely used for status monitoring and protection of various rotating machinery

Steam turbine and gas turbine:used to monitor key parameters such as bearing vibration,shaft displacement,rotor imbalance,etc.,to ensure the safe and stable operation of the unit.

Compressors and pumps:used for vibration monitoring of key compressors and pumps in industries such as chemical engineering,petroleum and natural gas,to provide early warning of potential mechanical failures.

Wind turbine generator set:used to monitor the vibration status of key components such as the main bearings and gearbox of the wind turbine,and improve the reliability and power generation efficiency of the wind turbine.

Other large rotating machinery:Any rotating equipment that requires monitoring and protection of dynamic signals such as vibration,velocity,or displacement can be equipped with the 200-560-000-113 VM600 IOC4T.

Related products

The products related to the 200-560-000-113 VM600 IOC4T input/output protection card include:

VM600 MPC4/MPC6 monitor processing card:used to receive and process signals from IOC4T card,and perform alarm judgment and data storage.

VM600 AMC8/AMC16 Analog Output Card:Used to convert the monitoring data processed by the VM600 system into analog signal output.

VM600 DIO24 digital input/output card:used to connect digital sensors and actuators to achieve status indication and control functions.

VIBRO-METER piezoelectric accelerometer:used to measure the vibration acceleration of machinery.

VIBRO-METER speed sensor:used to measure the vibration speed of machinery.

VIBRO-METER eddy current sensors(Proximity Probes):used to measure radial displacement and axial position of shafts.

VIBROMETER VibroReport/ViboWeb software:used for configuring VM600 systems,viewing real-time data,conducting trend analysis,and fault diagnosis.

200-560-000-113 VM600 VIBRO

Installation and maintenance

Preparation before installation:Before installing the 200-560-000-113 VM600 IOC4T input/output protection card,please refer to the relevant VIBRO-METER VM600 system installation manual and module user guide.Ensure that the VM600 monitor rack is correctly installed and powered.Check if the 200-560-000-113 VM600 IOC4T card is intact and undamaged.Carefully insert the card into the designated VM600 rack slot and ensure that the connector is fully engaged.According to the system design and wiring diagram,correctly connect the signal cable from the on-site sensor to the input terminal of the VM600 IOC4T card,and ensure that the wiring is firm and reliable.

Maintenance suggestion:To ensure the long-term stable operation of the 200-560-000-113 VM600 IOC4T input/output protection card,it is recommended to perform regular maintenance.Regularly check whether the connections stuck in the rack are stable,whether the signal cable connections are reliable,and whether they are loose or damaged.Keep the surface of the card clean to avoid dust accumulation affecting heat dissipation and signal transmission.Regularly use VM600 configuration software to check the configuration and operational status of the card.It is recommended to conduct regular system checks and sensor calibration according to VIBRO-METER’s maintenance manual to ensure the accuracy and reliability of monitoring data.Any maintenance operation should be carried out by trained professionals and follow relevant safety regulations.
