Description

T8403 ICS TRIPLEX is a highly reliable Triple Modular Redundancy(TMR)24Vdc digital input module,which is an important component of the ICS TRIPLEX trusted control system.As a key I/O component of the ICS TRIPLEX fault-tolerant control solution,the T8403 module is designed specifically for industrial applications that require the highest level of safety and availability.The ICS TRIPLEX system is renowned for its outstanding TMR architecture,which effectively shields single point of failure through triple hardware and voting logic,ensuring the continuous stable operation and highest safety of the control system.The T8403 ICS TRIPLEX digital input module is capable of receiving 24Vdc digital sensor and switch signals from the field,and reliably transmitting these signals to the ICS TRIPLEX controller for processing.Its TMR design means that each input channel is processed in parallel by three completely independent circuits,and any single hardware failure is eliminated through an internal hardware voting mechanism,thereby ensuring the integrity and reliability of the input signal.In industrial environments with extremely stringent security requirements,the T8403 ICS TRIPLEX digital input module is an ideal choice for building high reliability control systems.

T8403 ICS TRIPLEX

technical specifications

Product model:T8403

manufacturer:ICS TRIPLEX(Rockwell Automation)

Product Type:TMR 24Vdc Digital Input Module(Trusted TMR 24Vdc Digital Input Module)

Number of input channels:32(divided into 4 8-channel groups)

Input voltage range:24Vdc(19.2Vdc to 30Vdc)

Input current:Typical 7 mA 24Vdc

Input type:Sinking

Isolation voltage:500 Vac(channel to system logic)

Online Hot Swap:Supports

Fault diagnosis:Built in fault detection and reporting capabilities

Power supply voltage:provided by the ICS TRIPLEX system backplane

Working temperature:-40°C to+70°C

Storage temperature:-40°C to+85°C

Humidity range:5%to 95%non condensing

Installation method:Insert into the designated slot of the ICS TRIPLEX system rack

Main features and advantages

The core advantage of T8403 ICS TRIPLEX digital input module lies in its excellent reliability and safety.Adopting a true Triple Modular Redundancy(TMR)architecture,each input channel is processed in parallel by three independent hardware circuits,and the signals of the three channels are compared and arbitrated in real-time through hardware voting logic,thereby completely eliminating the impact of single point faults on input signal reliability.This TMR design ensures that even in the event of a failure in one or two subsystems,the module can still provide accurate and reliable input data.The T8403 ICS TRIPLEX module supports hot swap online replacement,which means that faulty modules can be safely replaced during system operation without causing system downtime,greatly improving system availability and maintainability.The module has a complete built-in fault detection and reporting function,which can promptly report internal hardware faults and facilitate user maintenance and diagnosis.Each input channel is electrically isolated,effectively protecting the control system from interference from on-site signals.T8403 ICS TRIPLEX is designed to receive standard 24Vdc digital input signals and is widely compatible with various industrial sensors and switches.As part of the ICS TRIPLEX trusted control system,T8403 can seamlessly integrate with other TMR modules of ICS TRIPLEX to build a highly secure and reliable overall control solution.

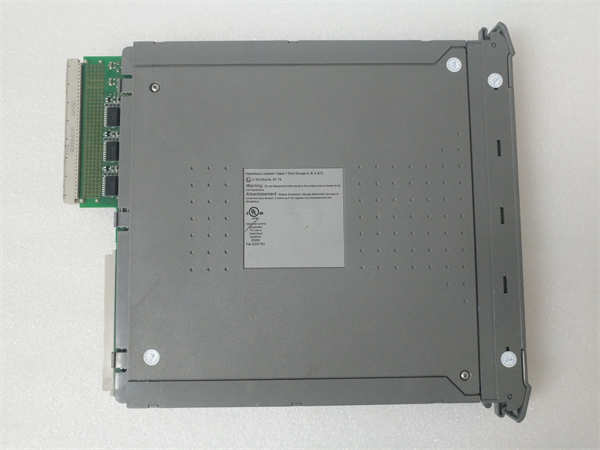

T8403 ICS TRIPLEX

application area

The T8403 ICS TRIPLEX TMR 24Vdc digital input module is designed specifically for industrial applications that require extremely high safety.In the safety instrumented system(SIS)of the oil and gas industry,T8403 can be used to monitor various safety related switch and sensor signals,such as emergency stop buttons,limit switches,pressure switches,and temperature switches,providing reliable input data for the safety interlock and protection functions of the factory.In the chemical industry,T8403 ICS TRIPLEX can be applied to process safety systems(PSS)to monitor key process parameters and the status of safety equipment,ensuring the safety and stability of the production process.In the nuclear power industry,the ICS TRIPLEX system and its TMR module,including T8403,are widely used in safety critical control systems such as reactor protection systems and safety interlock systems to ensure the safe operation of nuclear power plants.In addition,T8403 is also suitable for other industrial fields that require high reliability and availability,such as offshore platforms,large industrial boiler control,and important infrastructure control systems.

Related products

The products related to T8403 ICS TRIPLEX TMR 24Vdc digital input module include:

T8431 ICS TRIPLEX:TMR 24Vdc digital output module,used to control on-site 24Vdc actuators.

T8461 ICS TRIPLEX:TMR analog input module,used to receive signals from analog sensors.

T8468 ICS TRIPLEX:TMR analog output module,used to output analog control signals.

T8151 ICS TRIPLEX:The TMR control processor module is the core processing unit of the ICS TRIPLEX control system.

T810B ICS TRIPLEX:TMR communication interface module,used for communication with other control systems or upper computers.

ICS TRIPLEX system rack:used for installing and connecting various TMR modules and power modules of the ICS TRIPLEX system.

ICS TRIPLEX programming and configuration software:used for configuring and programming ICS TRIPLEX control systems.

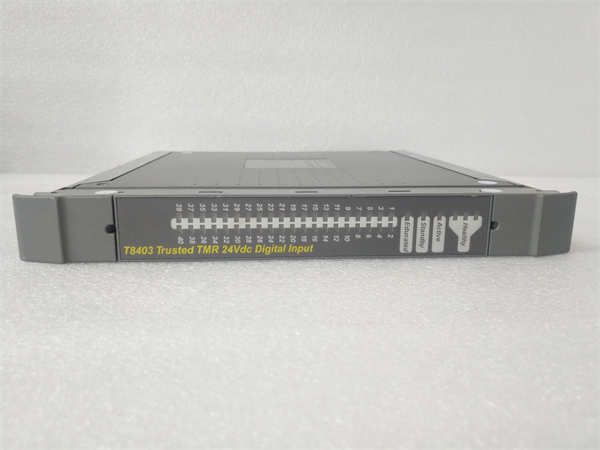

T8403 ICS TRIPLEX

Preparation before installation:Before installing the T8403 ICS TRIPLEX TMR 24Vdc digital input module,please refer to the installation manual of the ICS TRIPLEX system and the technical documentation of the relevant module.Ensure that the ICS TRIPLEX system rack is correctly installed and powered.Check if the packaging of T8403 module is intact and confirm that the module is not physically damaged.According to the system wiring diagram,prepare the cables connecting the 24Vdc digital sensor and switch on site,and ensure that the length and shielding of the cables meet the requirements.Before inserting the module into the rack,please ensure that the power supply to the rack is disconnected.Align the T8403 module with the designated slot on the rack and gently push it in until fully connected.According to the wiring diagram,correctly connect the on-site input signal cable to the terminal block of T8403 module.

Maintenance suggestion:To ensure the long-term reliable operation of the T8403 ICS TRIPLEX TMR 24Vdc digital input module,it is recommended to follow the maintenance procedures of the ICS TRIPLEX system.Regularly check if the module is securely connected in the rack.Keep the surface of the module clean to avoid dust accumulation.Regularly check whether the cables connecting the on-site input signals are damaged or aged,and whether the connections are reliable.Utilize the diagnostic function of the ICS TRIPLEX system to regularly check the operational status and fault reports of the T8403 module.Due to T8403’s support for online replacement,when a module reports a fault,it can be safely replaced while the system is running,but the replacement process still needs to follow the operating procedures of ICS TRIPLEX.It is recommended to follow the maintenance guidelines of ICS TRIPLEX for optimal system performance and reliability.
