Description

The TRICONEX TCM 4355X communication control module is a crucial component of the TRICONEX fault-tolerant safety system(SIS).As a key communication interface of the TRICONEX TMR(Triple Modular Redundancy)architecture,the TRICONEX TCM 4355X is designed specifically for achieving high reliability data exchange between security systems and the external world.The TRICONEX TCM 4355X provides a wide range of communication interfaces,including redundant Ethernet ports and isolated serial ports,supporting multiple industrial communication protocols such as Modbus TCP/IP,HART-IP,etc.This enables the TRICONEX safety system to seamlessly integrate and exchange data with the upper monitoring system(HMI/SCADA),historical databases,and various on-site devices,ensuring timely and accurate transmission of critical process data,thereby enhancing the intelligence level and operational efficiency of the entire automation system.The TRICONEX TCM 4355X plays an irreplaceable role in ensuring the safe and stable operation of high-risk industrial processes.

The TRICONEX TCM 4355X communication control module ensures reliable connection between the security system and the external world through its redundant network interfaces and extensive protocol support.The integrated isolated serial interface further enhances the system’s anti-interference ability and improves the reliability of communication.The TRICONEX TCM 4355X also supports direct communication of HART devices,making it easy to integrate and manage HART field instruments.As an important component of the TRICONEX safety system,the TRICONEX TCM 4355X works in conjunction with other TRICONEX modules,such as the main processor module and I/O module,to build a safe,reliable,and easy to manage industrial automation system,providing users with a solid guarantee for safe production in high-risk environments.

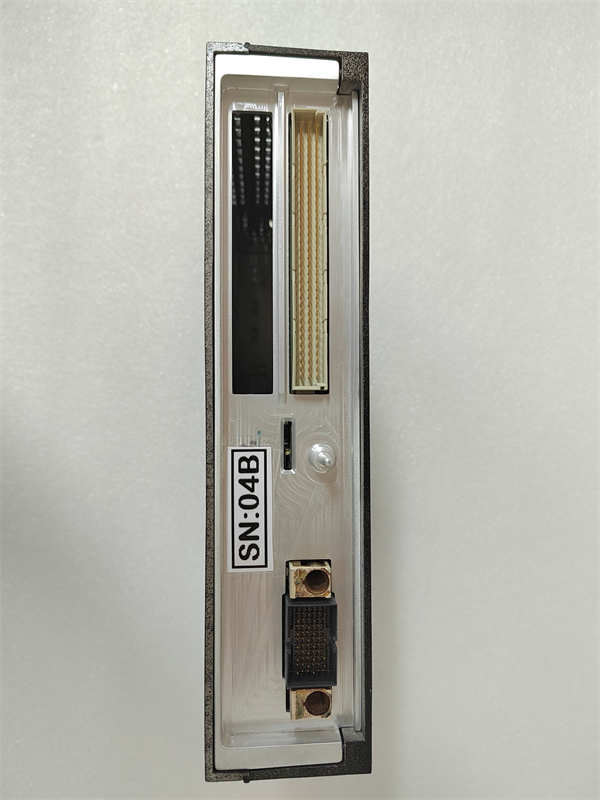

TCM 4355X TRICONEX

technical specifications

Product model:TCM 4355X

Manufacturer:TRICONEX(under Schneider Electric)

Product Type:Tricon Communication Module TCM

Network interface:2 x 100Base TX/1000Base-T Ethernet(copper cable)or 2 x 100Base FX/1000Base-X(fiber optic,via SFP)

Serial interface:2 x isolated RS-232/RS-485(DB-9)

Diagnostic interface:1 x isolated RS-232(9-pin)

Supported protocols:TriStation,Modbus Client/Server,Modbus TCP/IP,TSAA(supports IP Multicast),Peer to Peer,Triconex Time Synchronization,External HART DTM,HART-IP,SNTP,Jet Direct(network printing)

Data rate:Serial port up to 115.2 Kbps/port,total data rate 230.4 Kbps

Isolation voltage:500 VDC for serial and diagnostic ports

Power consumption:<19 W

Installation method:Triconex system rack slot

Main features and advantages

Flexible communication interface:The TRICONEX TCM 4355X provides multiple communication interfaces,including redundant Ethernet and isolated serial ports,making it easy to integrate with various upper monitoring systems,historical databases,and third-party devices,achieving high interconnectivity of the system.

Widespread protocol support:The TRICONEX TCM 4355X supports multiple industrial communication protocols,such as Modbus TCP/IP,HART-IP,etc.,ensuring interoperability between the system and other devices,making it convenient for users to build flexible automation solutions.

Redundant network connection:The TRICONEX TCM 4355X provides redundant network interfaces,improving the reliability of communication links.Even if the main network fails,the backup network can ensure smooth communication,minimizing the risk of data transmission interruption.

Isolated communication interface:The serial and diagnostic interfaces of the TRICONEX TCM 4355X are designed with electrical isolation,enhancing the system’s anti-interference ability,improving communication reliability,and ensuring the stability and accuracy of data transmission.

Support for HART Pass through:The TRICONEX TCM 4355X supports direct communication of HART devices,making it easy to integrate and manage HART field instruments,simplifying the management and maintenance of field devices.

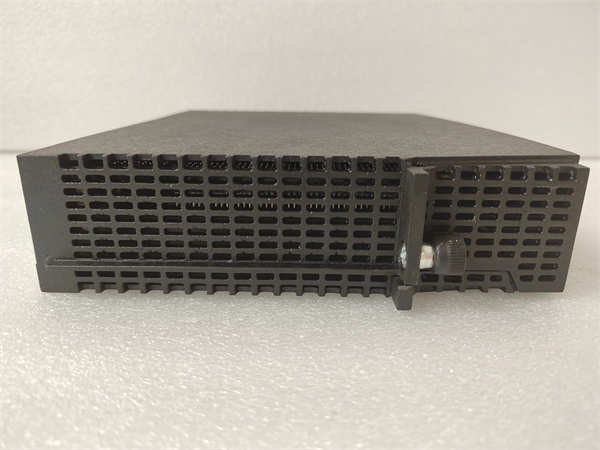

TCM 4355X TRICONEX

application area

The TRICONEX TCM 4355X communication control module is widely used in industrial fields with extremely high requirements for safety and communication reliability due to its high reliability and flexible communication capabilities

Oil and gas:Communication between safety critical systems such as emergency shutdown system(ESD),fire and gas detection system(F&G),high integrity pressure protection system(HIPPS),and upper monitoring system.

Chemical industry:Integration of reactor safety control system,process interlock protection system,and DCS system.

Electricity:Data exchange between nuclear power plant safety systems,boiler protection systems,operator stations,and historical databases.

Transportation:Communication between the safety control of the rail transit signal system and the central monitoring system.

Other high-risk industrial sectors,such as pharmaceuticals and metallurgy,require reliable communication between security systems and external systems.

Related products

TRICONEX MP3009X:The main processor module of TRICONEX,used in conjunction with TRICONEX TCM 4355X,executes safety control logic.

TRICONEX system rack:used for installing TRICONEX TCM 4355X and other TRICONEX modules.

TRICONEX I/O modules,such as digital input module 3501E/T,digital output module 3625A,analog input module 3700A,and analog output module 3805E/H,upload data to the upper system through communication modules.

TRICONEX power module:provides stable and reliable power supply for the TRICONEX system,ensuring the normal operation of the communication module.

TRICONEX TriStation programming software:used for configuring and diagnosing the TRICONEX safety system,including communication parameters for the TRICONEX TCM 4355X.

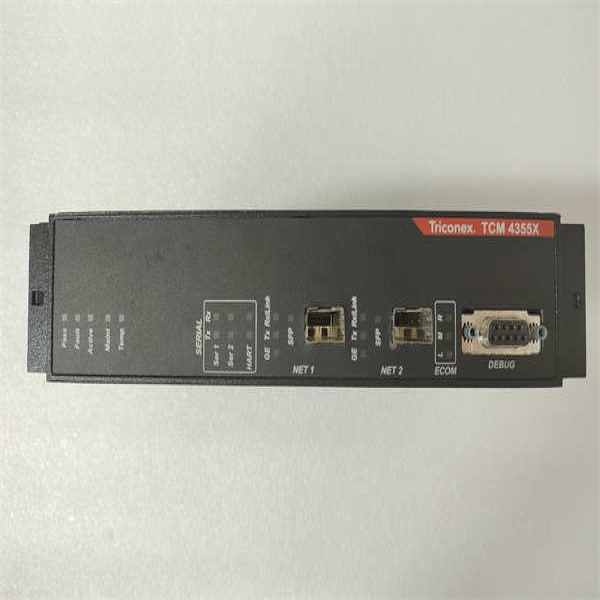

TCM 4355X TRICONEX

Preparation before installation:Before installing the TRICONEX TCM 4355X communication control module,please carefully read the relevant TRICONEX system documentation and module manual to understand the specific installation steps,wiring requirements,and safety precautions.Ensure that the installation rack is properly grounded and check if the power supply meets the requirements.Insert the TRICONEX TCM 4355X into the dedicated rack slot of the TRICONEX system and connect the Ethernet,serial communication cable,and power cable according to the manual requirements.Be sure to carefully check the network parameters and protocol configuration to ensure correct communication with external systems.

Maintenance suggestion:To ensure the long-term stable operation of the TRICONEX TCM 4355X communication control module,it is recommended to regularly check whether the module connections are secure and whether the cables are damaged.Keep the surface of the module clean to avoid dust accumulation affecting heat dissipation and electrical connections.Regularly check the communication status and network connection of the system to ensure they are functioning properly.It is recommended to follow the maintenance guidelines provided by TRICONEX and have trained professionals perform maintenance and troubleshooting.Due to the application of the TRICONEX system in safety critical areas,any maintenance operations should strictly comply with relevant safety regulations.
