Description

The Bently Nevada 3500/92 136180-01 Communication Gateway Module is a critical component of the Bently Nevada 3500 series monitoring system,providing a powerful and flexible interface for data exchange between the 3500 system and other industrial automation and information management systems.As a leader in industrial condition monitoring and protection,Bently Nevada’s products are renowned for their reliability and compatibility.The 3500/92 136180-01 communication gateway module can transmit key mechanical status data collected by the 3500 system,such as vibration,temperature,speed,and position parameters,to the upper computer system,PLC,DCS,or other data analysis platforms through various industrial standard communication protocols.Through 3500/92,users can achieve centralized monitoring,trend analysis,fault diagnosis,and predictive maintenance of equipment status,thereby improving equipment availability,reducing operating costs,and optimizing production efficiency.This module plays a crucial role in building comprehensive industrial automation and condition monitoring solutions,serving as a key hub for data integration and information sharing.

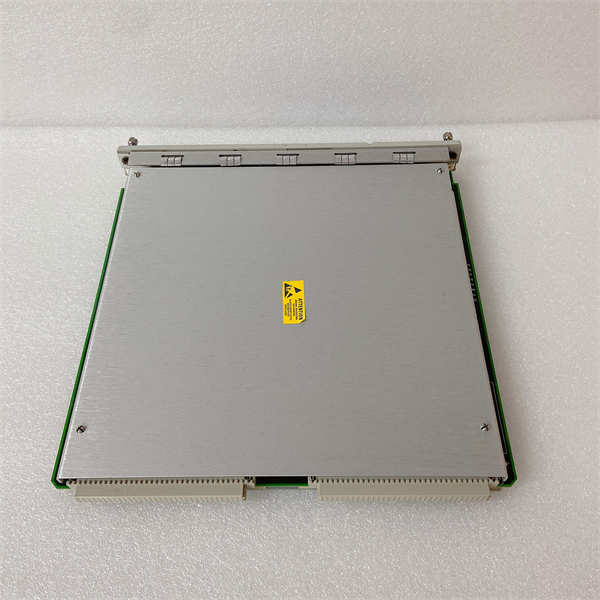

3500/92 136180-01 BENTLY

technical specifications

Product model:3500/92 136180-01

manufacturer:Bently Nevada

Product Type:Communication Gateway Module

Support agreement:Modbus TCP/IP,Modbus RTU,Ethernet/IP,OPC DA

Ethernet interface:1 10/100Base-T Ethernet port

Serial interface:2 RS-232/RS-485 configurable serial ports

Data transmission rate:up to 115.2 kbps(serial)

Power input:24 VDC(typical)

Power consumption:maximum 5 W

Working temperature:-20°C to+65°C

Storage temperature:-40°C to+85°C

Relative humidity:95%non condensing

Size:Standard 3500 series module size

Weight:Approximately 0.3 kg

Main features and advantages

The Bently Nevada 3500/92 communication gateway module provides powerful functionality and significant advantages for data integration in the 3500 system

Multi protocol support:The 3500/92 supports multiple industrial standard communication protocols,including Modbus TCP/IP,Modbus RTU,Ethernet/IP,and OPC DA,and can seamlessly integrate with various upper computer systems and control systems.

Flexible interface options:This module provides one Ethernet port and two configurable RS-232/RS-485 serial ports to meet the needs of different communication media and topologies.

Efficient data transmission:The 3500/92 can efficiently transmit real-time and historical data collected by the 3500 system to external systems,ensuring the timeliness and integrity of the data.

Easy to configure and manage:With Bently Nevada’s System 1 software platform,users can easily configure communication parameters and data mapping for 3500/92,simplifying the system integration process.

Safe and reliable communication:3500/92 supports standard network security measures to ensure the security of data transmission.Its robust industrial grade design ensures reliable operation in harsh environments.

Enhanced data access capability:With the 3500/92,users can easily access various monitoring data,alarm information,and event records in the 3500 system,providing comprehensive information support for equipment status analysis and decision-making.

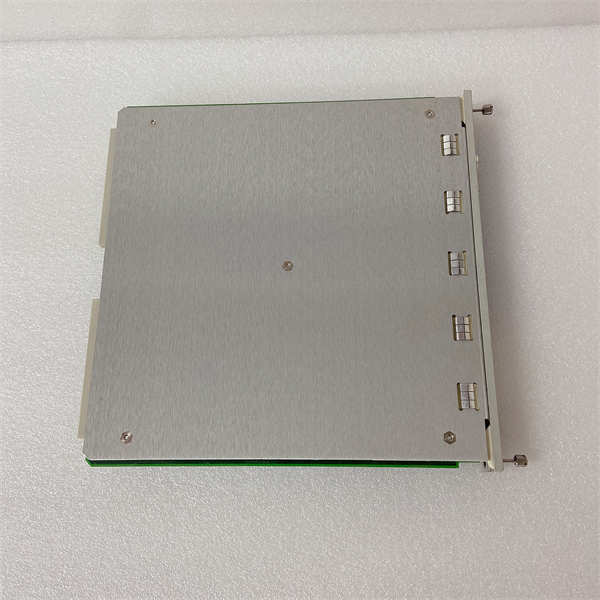

3500/92 136180-01 BENTLY

application area

The Bently Nevada 3500/92 communication gateway module is widely used in scenarios where data from the 3500 monitoring system needs to be integrated into other industrial automation and information management systems.Its typical application areas include:

DCS/PLC system integration:Transmit status data of critical machinery to distributed control systems(DCS)or programmable logic controllers(PLC)to achieve comprehensive factory monitoring and control.

SCADA system integration:Integrate device status data into the Supervisory Control and Data Acquisition(SCADA)system for remote monitoring and management.

Asset management system:Transfer equipment health data to the asset management system for equipment maintenance planning,fault prediction,and asset optimization.

Historical data storage and analysis system:Store monitoring data in a historical database for trend analysis,performance evaluation,and fault diagnosis.

Third party data visualization platform:A data visualization and analysis tool that provides data to third parties through protocols such as OPC DA.

Through 3500/92,users can break through information silos and achieve the sharing and utilization of device status data,thereby improving overall operational efficiency and decision-making level.

Related products

The products related to the Bently Nevada 3500/92 communication gateway module include:

3500/22M:TDI(Transient Data Interface)module,used to transmit raw waveform data from the 3500 system to external systems for advanced analysis.

3500/32M:Relay module,whose status can be remotely monitored through the 3500/92 module.

System 1 software platform:used to configure communication parameters and data mapping of 3500/92 modules,and provide data visualization and analysis functions.

Various 3500 series monitoring modules(such as 3500/40M,3500/42M,3500/44M,3500/60M,etc.):The device status data collected by these modules is transmitted to external systems through 3500/92.

Modbus TCP/IP,Modbus RTU,Ethernet/IP,and OPC DA client software:used for receiving and processing data transmitted via 3500/92.

3500/92 136180-01 BENTLY

Installation and maintenance

Preparation before installation:Before installing the Bently Nevada 3500/92 communication gateway module,please carefully read the relevant installation manual and safety guidelines.Ensure that the installation environment meets the technical specifications of the module,such as temperature,humidity,and power supply.Check if the 3500 rack is correctly installed and grounded.Prepare the necessary network cables or serial cables.Configure the corresponding network parameters or serial communication parameters according to the communication protocol and interface type of the external system that needs to be integrated.Before wiring,be sure to disconnect the power supply of the system.Carefully check the wiring diagram of the 3500/92 module and the interface definition of the external system to ensure correct connections.

Maintenance suggestion:To ensure the long-term stable operation of the Bently Nevada 3500/92 communication gateway module,regular maintenance is recommended.Regularly check whether the network connection or serial connection of the module is stable and reliable.Keep the surrounding environment of the module clean and avoid the accumulation of dust and debris.Regularly use Bently Nevada’s System 1 software to check the communication status and configuration of 3500/92 for normal operation.Monitor the performance of the network or serial link to ensure the efficiency and reliability of data transmission.If any communication abnormalities or faults are found in the 3500/92 module,the network configuration,cable connections,and external system status should be checked in a timely manner.If necessary,contact professional maintenance personnel for inspection.Following the maintenance guidelines and recommendations provided by Bently Nevada can maximize the lifespan of 3500/92 and ensure stable and reliable data communication.

Product Guarantee

Bently Nevada provides comprehensive quality assurance for its 3500/92 136180-01 communication gateway module.This product undergoes strict quality control and testing to ensure its performance and reliability meet the highest industrial standards.
