Description

The B&R 5AP1130.156C-000 Automation Device Panel is a high-performance human-machine interface(HMI)product in the B&R Automation Panel series.As an important component of B&R’s automation solution,this B&R 5AP1130.156C-000 provides an intuitive and reliable operating and monitoring platform suitable for various industrial automation applications.The B&R 5AP1130.156C-000 automation device panel adopts a 15.6-inch TFT color touch screen,supporting multi touch technology(Projected Capacitive Touch PCT),providing precise and sensitive operating experience.Its Full HD(FHD)resolution(1920 x 1080 pixels)and 16.7 million color display capability ensure clear and vivid image display,providing excellent visualization effects for operators.This B&R 5AP1130.156C-000 is designed for control cabinet installation,with a front panel protection level of up to IP65,effectively resisting dust and splashes,ensuring reliable operation in harsh industrial environments.As one of the core components of the B&R automation platform,the B&R 5AP1130.156C-000 automation device panel not only improves operational efficiency,but also enhances the overall reliability and user experience of the system.

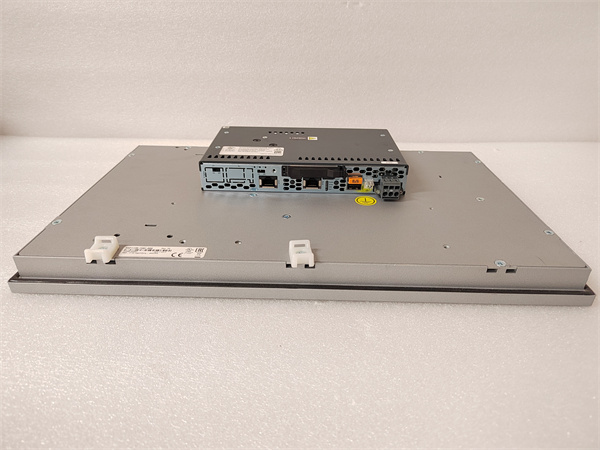

5AP1130.156C-000 B&R

technical specifications

Product model:5AP1130.156C-000

manufacturer:B&R

Product Type:Automation Device Panel(HMI)

Display size:15.6 inches

Display type:TFT color LCD

Resolution:1920 x 1080 pixels(Full HD)

Touch technology:Projected Capacitive Touch(PCT)，Multi-touch

Front panel protection level:IP65(indoor use Type 4X)

Rear panel protection level:IP20(only when installing connection modules or system units)

Working temperature:0 to 55°C

Storage temperature:-20 to+70°C

Weight:3700 grams

Installation method:Control cabinet installation

Main features and advantages

Excellent visual experience:The B&R 5AP1130.156C-000 automation device panel adopts a 15.6-inch full HD TFT color display screen,providing a resolution of up to 1920 x 1080 pixels and 16.7 million colors,ensuring clear and vivid presentation of process data,alarm information,and operation interface in industrial applications,improving the visualization efficiency and information understanding ability of operators.

High precision multi touch:The integrated Projected Capacitive Touch(PCT)technology enables the B&R 5AP1130.156C-000 to have high sensitivity and precise touch response,supporting multi-point gesture operations such as zooming,sliding,etc.,simplifying the operation process,and improving the convenience and efficiency of user interaction.

Durable industrial design:The front panel of B&R 5AP1130.156C-000 has a protection level of IP65,which can effectively resist the intrusion of dust and splashing water in industrial environments,ensuring stable and reliable operation under harsh conditions.The aluminum coated front panel and 3mm fixed washer further enhance its durability.

Flexible installation method:The B&R 5AP1130.156C-000 automation device panel is designed for convenient control cabinet installation,saving installation space and easy integration into existing automation systems.

Wide compatibility:As part of the B&R automation platform,the B&R 5AP1130.156C-000 can seamlessly integrate with various control systems and software from B&R,such as the PPC900,PPC2100,PPC3x00,and PPC2200 series,as well as the Automation Studio software platform,providing users with a unified engineering configuration and operational experience.

Long life LED backlight:The B&R 5AP1130.156C-000 adopts LED backlight technology,which has a longer service life and higher energy efficiency,reduces maintenance costs,and ensures stable display of the panel for a long time.

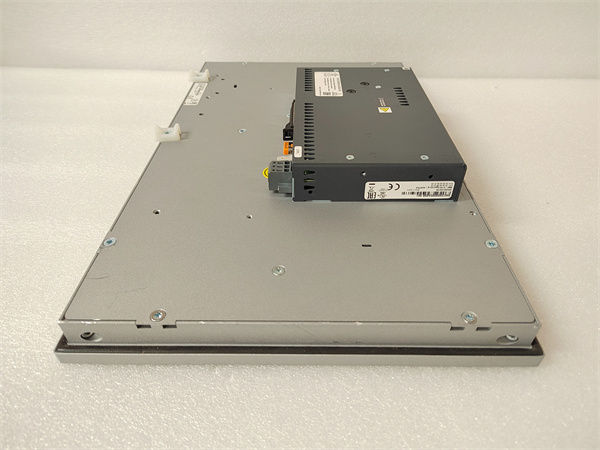

5AP1130.156C-000 B&R

application area

The B&R 5AP1130.156C-000 automation device panel is widely used in various industrial automation fields due to its high performance,high reliability,and flexible operating characteristics

Mechanical manufacturing:As the control and operation interface for equipment such as machine tools,packaging machinery,printing machinery,etc.,it realizes parameter setting,process monitoring,and fault diagnosis.

Factory automation:applied to the operation terminals of automation systems such as production lines and assembly lines,used for equipment status monitoring,production data collection,and operation instruction issuance.

Process industry:used in industries such as chemical,pharmaceutical,food and beverage to monitor and operate various process flows,such as parameter adjustment,alarm management,and trend display.

Energy industry:applied in control systems such as power plants,substations,and new energy equipment for equipment monitoring,data collection,and operation control.

Building automation:used in the management system of intelligent buildings to achieve monitoring and control of HVAC,lighting,security and other systems.

Related products

Other models of the 5AP1130 series:The B&R Automation Panel 1130 series includes panels of different sizes and configurations,such as 5AP1130.121E-000(12.1 inches),5AP1130.185C-000(18.5 inches),etc.Users can choose the appropriate size according to different application needs.

The B&R Power Panel series,such as the Power Panel T-Series and C-Series,integrates control and operation functions,providing more choices for compact automation solutions.

The B&R Panel PC series,such as the PPC900,PPC2100,PPC3x00,and PPC2200 series,combines the high performance of industrial PCs with the convenience of operating panels,making them suitable for more complex automation tasks.

B&R Automation Studio：A comprehensive engineering configuration software for B&R automation systems,including interface design and application development for B&R 5AP1130.156C-000.

B&R Smart Display Link(SDL/SDL3/SDL4)connection module:used to connect B&R 5AP1130.156C-000 and B&R controller to achieve data and video signal transmission.

5AP1130.156C-000 B&R

Preparation before installation:Before installing the B&R 5AP1130.156C-000 automation panel,please be sure to refer to the relevant B&R product manual and installation guide.Ensure that the opening size of the control cabinet matches the installation size of B&R 5AP1130.156C-000.Check if the installation environment meets its working temperature and humidity requirements.Prepare necessary installation tools and connecting cables,such as power cords and communication cables(such as Ethernet or SDL cables).Ensure that the control cabinet is reliably grounded.

Maintenance suggestion:The daily maintenance of the B&R 5AP1130.156C-000 automation device panel is relatively simple.It is recommended to regularly clean the surface of the panel to avoid dust and stains affecting the display effect and touch sensitivity.When cleaning,please use a soft dry cloth or specialized cleaning agent.Avoid direct spraying of liquids onto the panel or infiltration into the interior of the equipment.Regularly check if the connection between the panel and the control cabinet is secure.If any abnormal situation is found,such as abnormal display or insensitive touch,please contact B&R’s technical support personnel for maintenance in a timely manner.

Product Guarantee

As a well-known supplier of industrial automation solutions,B&R provides comprehensive product quality assurance for its 5AP1130.156C-000 automation device panel.This product undergoes strict quality control and testing during the design and manufacturing process to ensure its reliability and long-term stable operation in industrial environments.
