Description

The ENTERASYS A4H124-24TX P0973JM Ethernet switch is a high-performance,high reliability 24 port fast Ethernet management switch belonging to the A4 series of Enterasys Networks(now acquired by Extreme Networks).This ENTERASYS A4H124-24TX P0973JM is designed to meet the demands of today’s bandwidth intensive and latency sensitive applications,providing scalable line speed performance in industrial and enterprise network environments.As a powerful L2/L3 managed switch,ENTERASYS A4H124-24TX P0973JM provides rich layer 2 switching capabilities including VLAN,QoS,and IGMP listening,as well as redundant protocols(such as RSTP)and port security features(such as MAC filtering and 802.1X authentication),thereby enhancing network reliability and security.Of particular note,the ENTERASYS A4H124-24TX P0973JM is also commonly used in industrial automation environments such as Foxboro I/A Series distributed control systems(DCS)to build stable and reliable control networks.With its robust industrial grade design and comprehensive management capabilities,the ENTERASYS A4H124-24TX P0973JM Ethernet switch is an ideal choice for building high-performance industrial and enterprise networks.

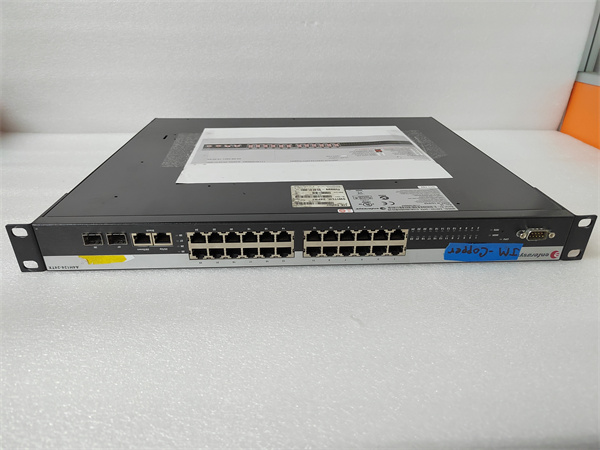

A4H124-24TX P0973JM ENTERASYS

technical specifications

Product model:A4H124-24TX P0973JM

Manufacturer:ENTERASYS(now Extreme Networks)

Product Type:24 Port Fast Ethernet Management Switch

Ethernet port:24 x 10/100BASE-TX(RJ45)

Gigabit Ethernet uplink port:2 x 10/100/1000BASE-T(RJ45),configurable for uplink

Gigabit Ethernet uplink ports:2 x 1000BASE-X(SFP)

Switching capacity:17.6 Gbps

MAC address table:up to 16000

Power input:100-240VAC

Installation method:Rack mounted installation

Main features and advantages

High performance line speed switching:The ENTERASYS A4H124-24TX P0973JM Ethernet switch provides 24 10/100Mbps fast Ethernet ports,as well as 2 Gigabit Ethernet uplink ports and 2 SFP Gigabit ports.With sufficient bandwidth and flexible connection options,it meets the access and high-speed data transmission needs of various network devices.Its switching capacity of up to 17.6 Gbps ensures non blocking forwarding at full line speed,maintaining network stability and performance even in high load environments.

Comprehensive management functions:As a management switch,ENTERASYS A4H124-24TX P0973JM supports rich layer 2 management features including VLAN(Virtual Local Area Network),QoS(Quality of Service),IGMP listening,etc.,which can effectively isolate network traffic,optimize bandwidth allocation,and improve the performance of multicast applications.Through management interfaces such as SNMP(Simple Network Management Protocol),network administrators can centrally configure,monitor,and troubleshoot switches.

Enhanced network reliability:ENTERASYS A4H124-24TX P0973JM supports redundant protocols,such as Fast Spanning Tree Protocol(RSTP),which can quickly restore connections when the network topology changes,improving the network’s fault tolerance and availability.The optional redundant power input(specific models may vary,please refer to the manual)further enhances the reliability of the equipment,ensuring that it can still operate normally in the event of a main power failure.

Powerful security features:ENTERASYS A4H124-24TX P0973JM provides multi-level security mechanisms,including MAC address filtering and IEEE 802.1X port authentication,which can effectively prevent unauthorized devices from accessing the network and protect the security of network resources.

Industrial grade design:ENTERASYS A4H124-24TX P0973JM usually adopts a sturdy and durable industrial grade design,which can adapt to a wide range of working temperatures and harsh industrial environments,and has strong electromagnetic interference resistance,making it very suitable for use in fields such as factory automation.

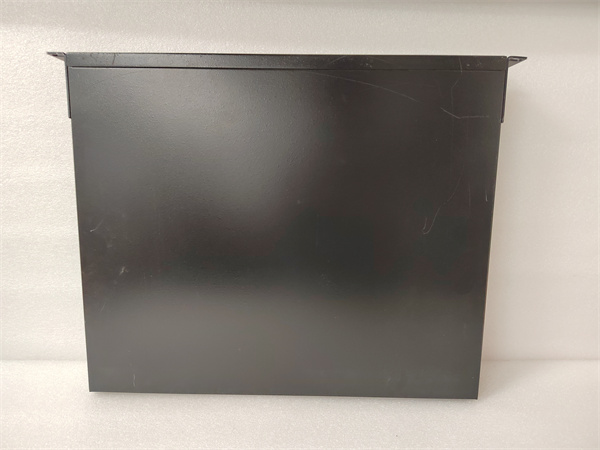

A4H124-24TX P0973JM ENTERASYS

application area

The ENTERASYS A4H124-24TX P0973JM Ethernet switch is widely used in the following fields due to its high performance,high reliability,and comprehensive management functions:

Industrial Automation Network:As the network infrastructure for distributed control systems such as Foxboro I/A Series DCS,it is used to connect PLCs HMI、Sensors and other automated equipment enable real-time data communication and control instruction transmission.

Enterprise Network:Provides reliable network access and data exchange for small and medium-sized enterprises,supporting various applications such as VoIP and video conferencing.

Building automation:used to connect and manage various devices in smart buildings,such as HVAC systems,lighting systems,security systems,etc.

Transportation:Monitoring systems and communication networks applied in industries such as rail transit and highway transportation.

Other industrial and commercial application scenarios that require high reliability and management functionality.

Related products

Other models of Extreme Networks A4 series:This series includes switches with different port numbers and configurations,such as models with more Gigabit ports or support for PoE(Power over Ethernet)to meet different network requirements.

Extreme Networks switches:Extreme Networks offers a wide range of Ethernet switch product lines,including core switches,aggregation switches,and access switches,allowing users to choose the appropriate model based on network size and requirements.

Extreme Networks Network Management System:Used for centralized management and monitoring of Extreme Networks switches,improving the efficiency and visibility of network management.

SFP optical module:Used in conjunction with the SFP port of ENTERASYS A4H124-24TX P0973JM to achieve long-distance high-speed data transmission based on fiber optics.

Preparation before installation:Before installing the ENTERASYS A4H124-24TX P0973JM Ethernet switch,please be sure to refer to the relevant product installation manual.Ensure that the installation environment meets the operating temperature and humidity requirements of the switch.Check if the packaging of the switch is intact and if the accessories are complete.Prepare the necessary installation tools,power cords,and network cables.According to the network plan,determine the installation location of the switch in the cabinet and ensure good ventilation in the cabinet.

Maintenance suggestion:The daily maintenance of the ENTERASYS A4H124-24TX P0973JM Ethernet switch mainly includes keeping the equipment clean and avoiding dust accumulation that affects heat dissipation.Regularly check whether the connection between the power cord and the network cable is secure.The operation status of the switch can be monitored through a network management system to promptly detect and handle potential faults.If a firmware upgrade or configuration change is required,please be sure to follow the relevant operating instructions.

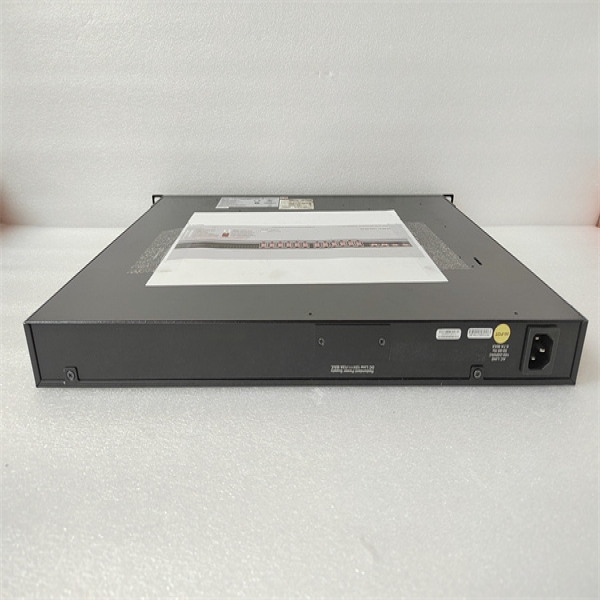

A4H124-24TX P0973JM ENTERASYS

Product Guarantee

Extreme Networks(formerly Enterasys Networks)provides standard industrial grade product quality assurance for its A4H124-24TX P0973JM Ethernet switch.This product undergoes strict quality control and testing during the design and manufacturing process to ensure its reliability and long-term stable operation in various industrial and corporate environments.
