Description

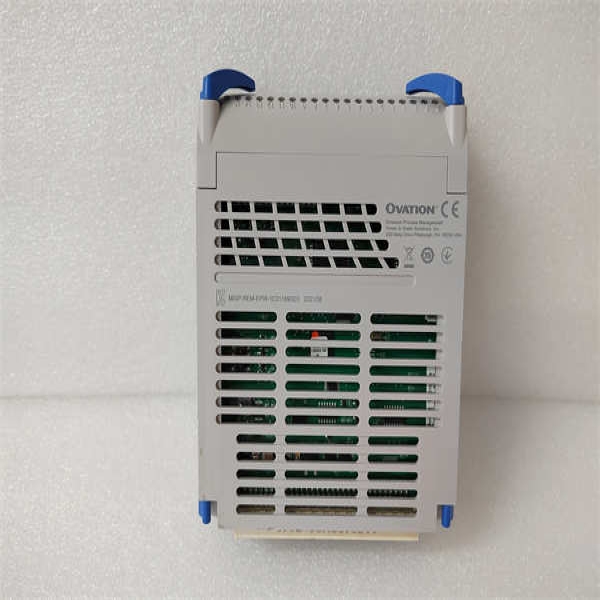

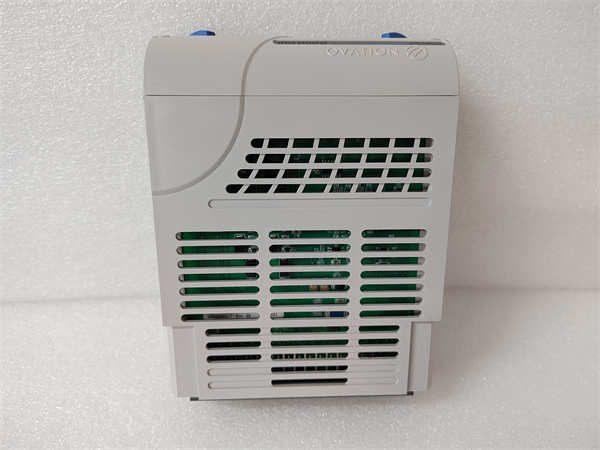

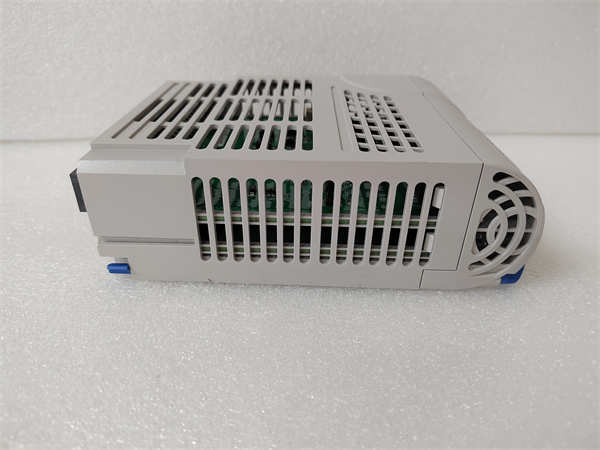

WESTINGHOUSE 1C31189G03 is identified as the Speed Detector Module of the Westinghouse Ovation system.As a dedicated module of Ovation DCS,WESTINGHOUSE 1C31189G03 is designed to accurately measure and monitor the rotational speed of industrial machinery,which is crucial for maintaining optimal equipment performance and ensuring stable operation of the production process.WESTINGHOUSE 1C31189G03 plays a crucial role in automation systems,providing critical speed feedback signals to controllers that can be used for various applications such as closed-loop control,safety interlocking,and equipment status monitoring.With its high precision and reliability,WESTINGHOUSE 1C31189G03 is an important component in ensuring efficient and safe operation of industrial equipment.

The WESTINGHOUSE 1C31189G03 speed detector module is typically capable of receiving signals from various speed sensors,such as proximity switches,encoders,or tachometers,and converting them into digital signals that can be processed by the controller.WESTINGHOUSE 1C31189G03 may have multiple input channels that can simultaneously monitor the speed of multiple rotating components.It integrates advanced signal processing circuits internally,which can effectively filter out noise and interference,and provide accurate and reliable speed measurement data.In addition,WESTINGHOUSE 1C31189G03 may also have alarm and protection functions.When abnormal speed is detected,a signal can be sent in a timely manner to trigger corresponding protective measures,thereby avoiding equipment damage and safety accidents.

1C31189G03 WESTINGHOUSE

technical specifications

Product model:1C31189G03

Manufacturer:WESTINGHOUSE(now Emerson)

Product type:Speed Detector Module

Input voltage range:200V-600V AC

Frequency response:20Hz-4kHz

Accuracy:+/-0.1%of reading

Working temperature:-40°C to+70°C

Relay output:2 x 12VDC 1A

Communication interface:Modbus RTU RS485

power waste:Max.15W

Dimensions(W x H x D):85mm x 105mm x 65mm

Weight:0.2kg

Main features and advantages

The WESTINGHOUSE 1C31189G03 speed detector module brings many significant features and advantages to Emerson Ovation DCS:

High precision speed measurement:WESTINGHOUSE 1C31189G03 can provide measurement accuracy of up to+/-0.1%readings,ensuring accurate monitoring of rotating machinery speed and providing a reliable data foundation for optimizing equipment operation and improving production efficiency.

Wide input voltage and frequency range:WESTINGHOUSE 1C31189G03 supports a wide range of input voltages and frequencies,enabling it to adapt to the speed signal characteristics of various industrial equipment and have strong versatility.

Wide operating temperature range:WESTINGHOUSE 1C31189G03 can operate reliably within a wide temperature range of-40°C to+70°C,enabling it to adapt to various harsh industrial environments and ensure the stability and reliability of the system.

Modbus RTU communication interface:WESTINGHOUSE 1C31189G03 integrates the standard Modbus RTU RS485 communication interface,which can be seamlessly integrated with existing control systems,achieving real-time data transmission and remote monitoring.

Relay output function:WESTINGHOUSE 1C31189G03 has two 12VDC 1A relay outputs,which can be used to achieve protection functions such as overspeed or low-speed alarm,improving the safety of the equipment.

Low power design:The maximum power consumption of WESTINGHOUSE 1C31189G03 is only 15W,which helps reduce energy consumption and operating costs.

1C31189G03 WESTINGHOUSE

application area

The WESTINGHOUSE 1C31189G03 speed detector module,with its high precision and reliability,is widely used in various industrial fields that require precise speed monitoring,especially in systems using Emerson Ovation DCS:

Power industry:Monitor the speed of rotating equipment such as steam turbines,water turbines,and wind turbines to ensure their safe and efficient operation.

Petrochemical industry:Monitor the speed of key equipment such as pumps,compressors,and mixers to ensure the stability and safety of the production process.

Metallurgical industry:Monitor the speed of equipment such as rolling mills,fans,pumps,etc.,optimize production processes and equipment maintenance.

Manufacturing industry:Monitor the rotational speed of various rotating machinery,such as motors,conveyors,centrifuges,etc.,to achieve precise motion control and status monitoring.

Related products

The products related to the WESTINGHOUSE 1C31189G03 speed detector module include:

Westinghouse/Emerson Ovation Controller(OC4000,OC1420,etc.):The core control unit of Ovation DCS,which receives and processes speed data from WESTINGHOUSE 1C31189G03.

Westinghouse/Emerson Analog Input Module(e.g.1C31194Gxx):Used to receive signals from analog speed sensors.

Westinghouse/Emerson digital input module(e.g.1C31188Gxx):used to receive pulse signals from digital speed sensors such as encoders or proximity switches.

Emerson AMS Device Manager：Used for configuring,monitoring,and diagnosing the WESTINGHOUSE 1C31189G03 module connected via Modbus RTU.

Various speed sensors(proximity switches,encoders,tachometers,etc.):provide speed signal input for WESTINGHOUSE 1C31189G03.

1C31189G03 WESTINGHOUSE

Installation and maintenance

Preparation before installation:Before installing the WESTINGHOUSE 1C31189G03 speed detector module,please refer to the relevant Emerson Ovation system and module installation manual.Check if the appearance of the WESTINGHOUSE 1C31189G03 module is intact,and confirm that the required installation tools and wiring terminals are ready.According to the system design and wiring diagram,determine the installation position of WESTINGHOUSE 1C31189G03 in the control cabinet,usually using a guide rail installation method.Carefully verify the output signal type of the speed sensor and the input requirements of WESTINGHOUSE 1C31189G03 to ensure compatibility.Connect the signal line,power line,and Modbus RTU communication line of the speed sensor correctly according to the wiring diagram.

Maintenance suggestion:In order to ensure the long-term stable operation of the WESTINGHOUSE 1C31189G03 speed detector module,it is recommended to perform regular maintenance.Regularly check the wiring of the module for looseness or corrosion to ensure the reliability of signal transmission and power connections.Keep the interior of the control cabinet clean to avoid the accumulation of dust and foreign objects,which may affect the heat dissipation of the module.Regularly check the working status and connection of the speed sensor to ensure the accuracy of its output signal.The communication status and parameters of the WESTINGHOUSE 1C31189G03 module can be checked using the configuration and diagnostic tools of the Emerson Ovation system.It is recommended to conduct regular system checks and maintenance according to Emerson’s maintenance manual to ensure the reliable operation of WESTINGHOUSE 1C31189G03 and the entire automation system.
