Description

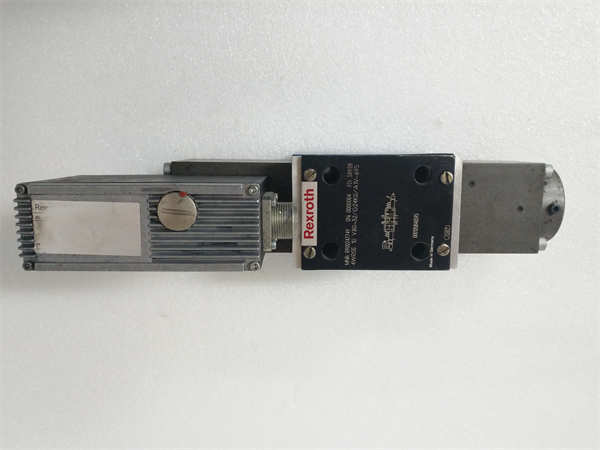

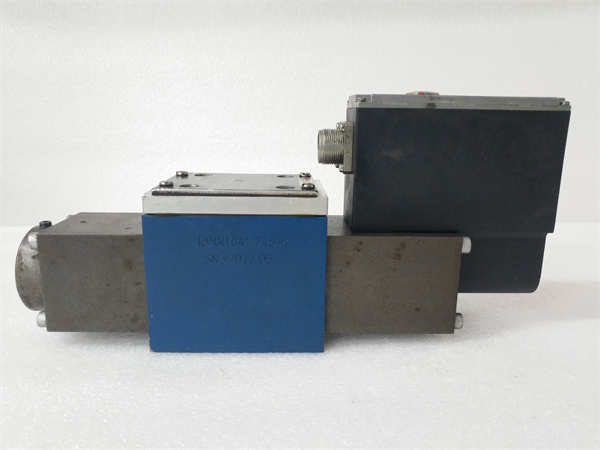

Bosch Rexroth 4WRSE10V80-32/G24K0/A1V-695/R900247749 is a high-performance proportional directional valve belonging to the Bosch Rexroth 4WRSE series.This series of valves is renowned for its precise flow control and dynamic response characteristics,and is widely used in industrial fields that require precise control of hydraulic actuator speed and position.4WRSE10V80-32/G24K0/A1V-695/R900247749 is a NG10 size direct acting proportional directional valve with integrated electronic amplifier and electrical position feedback.The”V”-shaped valve core design and proportional solenoid drive can adjust the displacement of the valve core proportionally based on the input electrical signal,thereby accurately controlling the flow and direction of hydraulic oil.The model of the coil is G24K0,indicating that its operating voltage is 24V DC.The Bosch Rexroth 4WRSE10V80-32/G24K0/A1V-695/R900247749 proportional directional valve plays a key role in automation systems,enabling smooth acceleration,deceleration,and precise positioning of actuating components such as hydraulic cylinders and motors,thereby significantly improving equipment performance and production efficiency.

4WRSE10V80-32 G24K0 A1V-695 R900247749 REXRTOH

technical specifications

Product model:4WRSE10V80-32/G24K0/A1V-695/R900247749

Manufacturer:Bosch Rexroth

Product type:Proportional directional valve with electrical position feedback

Specification and dimensions:NG10(ISO 4401-05-04-0-0)

Valve core function:V

Rated flow rate:80 L/min

Maximum working pressure:350 bar

Control mode:Electric proportional

Electrical connection:DIN EN 175301-803

Supply voltage:24 V DC

Integrated amplifier:Yes

Electrical position feedback:Yes

Installation method:Plate installation

Main features and advantages

The Bosch Rexroth 4WRSE10V80-32/G24K0/A1V-695/R900247749 proportional directional valve is renowned for its excellent control accuracy and dynamic performance.The integrated electronic amplifier simplifies the design and connection of external control circuits and optimizes the response characteristics of valves.The electrical position feedback function can accurately monitor the actual position of the valve core,achieve closed-loop flow control,and significantly improve the accuracy and stability of control.4WRSE10V80-32/G24K0/A1V-695/R900247749 can adjust the flow rate and direction of hydraulic oil proportionally based on the input electrical signal,achieving precise control of the speed and force of hydraulic actuators.This precise control capability makes the valve perform well in applications that require smooth and precise motion control,such as feed drives that require precise speed control and servo hydraulic systems that require precise positioning.The installation interface that complies with the ISO 4401 standard ensures its good compatibility and ease of integration.In addition,Bosch Rexroth 4WRSE10V80-32/G24K0/A1V-695/R900247749 The proportional directional valve also has good repeatability and reliability,ensuring the long-term stable operation of the system.

4WRSE10V80-32 G24K0 A1V-695 R900247749 REXRTOH

application area

Bosch Rexroth 4WRSE10V80-32/G24K0/A1V-695/R900247749 Proportional directional valves are widely used in various industrial fields that require precise flow and speed control,such as:

Injection molding machine:used for precise control of the speed and position of mold closing,injection,and ejection actions,improving product quality and production efficiency.

Machine tool:used to achieve precise control of tool feed rate,improve machining accuracy and surface quality.

Press:Used for precise control of pressing speed and pressure,optimizing forming processes.

Automation equipment:used to achieve precise linear or rotational motion control,improving the automation level and accuracy of production lines.

Test bench:used for precise loading and control of hydraulic actuator movement,conducting performance testing and evaluation.

Woodworking machinery:used for precise control of the speed and position of sawing,feeding,and other actions.

Packaging machinery:used for precise control of the speed and force of filling,sealing,and other actions.

Related products

4WRSE series:Other specifications of Bosch Rexroth 4WRSE series proportional directional valves have different rated flow rates and characteristics.

4WREE series:Bosch Rexroth with integrated electronic amplifier proportional directional valve,but without electrical position feedback.

VT-VTHF series amplifier:Bosch Rexroth proportional valve amplifier,used to control proportional valves without integrated amplifiers.

Hydraulic pump:provides power source for hydraulic system.

Hydraulic cylinder:an actuator that converts hydraulic energy into linear motion.

Hydraulic motor:an actuator that converts hydraulic energy into rotational motion.

Displacement sensor:used to provide feedback on the position of hydraulic cylinders or actuators,achieving closed-loop control.

Pressure sensor:used to monitor the pressure of hydraulic systems.

Flow meter:used to monitor the flow rate of hydraulic systems.

Preparation before installation:Before installing the Bosch Rexroth 4WRSE10V80-32/G24K0/A1V-695/R900247749 proportional directional valve,please carefully read the relevant Bosch Rexroth product manual and technical documentation to understand the detailed installation steps,wiring diagrams,and safety precautions.Ensure that the hydraulic system is powered off and depressurized.Check if the installation interface of the valve matches the connection of the hydraulic system.Due to the integrated electronic amplifier and electrical position feedback of the valve,it is necessary to carefully connect the power and control signal lines according to the wiring diagram.It is recommended that professionals with experience in hydraulic and electrical control system installation carry out installation and commissioning.

Maintenance suggestion:To ensure the long-term stable operation of Bosch Rexroth 4WRSE10V80-32/G24K0/A1V-695/R900247749 proportional directional valve,it is recommended to regularly check the valve body and solenoid coil for leaks or damage.Keep the valve body clean to prevent dirt from entering.Regularly check whether the electrical connections are secure,especially the power and control signal lines.Regularly check the quality of hydraulic oil to avoid oil contamination affecting valve performance.It is recommended to perform regular maintenance and check the electrical and hydraulic parameters of the valve according to Bosch Rexroth’s maintenance manual.

4WRSE10V80-32 G24K0 A1V-695 R900247749 REXRTOH

Product Guarantee

Bosch Rexroth provides standard quality assurance for its Bosch Rexroth 4WRSE10V80-32/G24K0/A1V-695/R900247749 proportional directional valve.
