Description

The ABB NTLS01 logic station terminal unit is a key component in ABB automation systems,particularly Bailey Net 90 and Infi 90 distributed control systems.As the core component of the logic station,ABB NTLS01 serves as the terminal connection point for the input/output signals of the logic controller,responsible for receiving digital signals from field instruments and sensors,and reliably transmitting the output signals of the logic controller to the actuator.The ABB NTLS01 logic station terminal unit plays a crucial role in automation systems,simplifying on-site wiring and providing reliable signal interfaces for the stable operation of logic controllers.ABB NTLS01,belonging to the Bailey Net 90 and Infi 90 platforms,is widely used in various industrial automation fields due to its robust and durable design and reliable signal processing capabilities,ensuring the accuracy and reliability of control systems.Through ABB NTLS01,users can build stable and efficient logic control systems to achieve precise control and monitoring of industrial processes.

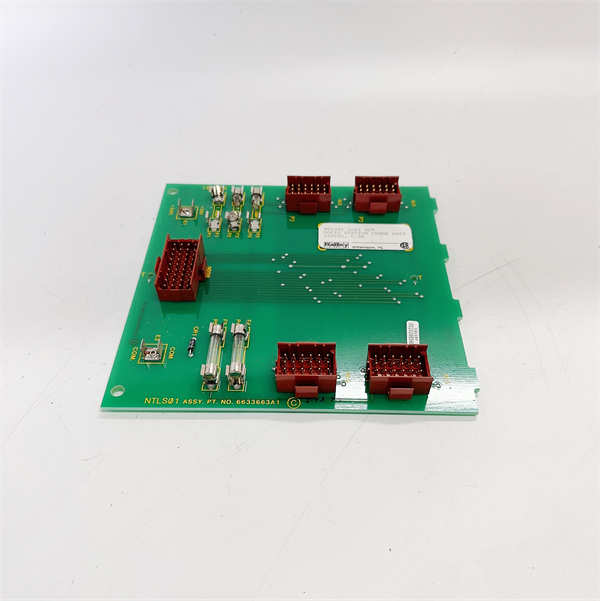

NTLS01 ABB

technical specifications

Product model:NTLS01

Manufacturer:ABB(formerly Bailey Controls)

Product Type:Logical Station Terminal Unit

Applicable systems:Bailey Net 90,Bailey Infi 90

Digital input:16 channels

Input voltage range:DC 24V

Communication interface:2 x RS-232-C,Control Station Serial Link

Power supply voltage:+24 VDC

Installation method:rack installation

Working temperature:-20°C to+60°C

Storage temperature:-40°C to+85°C

Dimensions(Depth x Height x Width):78.74 x 233.68 x 213.36 mm

Weight 0.36 kg

Protection level:IP30

Main features and advantages

The ABB NTLS01 logic station terminal unit is the key to building a stable and reliable Bailey Net 90 and Infi 90 logic control system.Its significant feature lies in providing a reliable digital input interface for the logic controller,which can efficiently receive switch signals and status information from field devices.The design of ABB NTLS01 fully considers the complexity of industrial environments and has strong anti-interference ability,ensuring the stability and accuracy of signal transmission.

Reliable signal terminal:ABB NTLS01 provides a reliable connection terminal for digital input signals of logic controllers,reducing the complexity of on-site wiring and improving the maintainability of the system.

Powerful communication capability:By integrating RS-232-C serial communication interface and Control Station Serial Link,ABB NTLS01 can easily exchange data with upper monitoring systems or other control devices,achieving high system integration.

Industrial grade design:ABB NTLS01 adopts a sturdy and durable industrial grade design,which can operate stably in a wide temperature range and adapt to various harsh industrial environments.

Easy to install and maintain:Adopting a modular design,installation is convenient and fast,and its reliable performance also reduces maintenance requirements and costs.

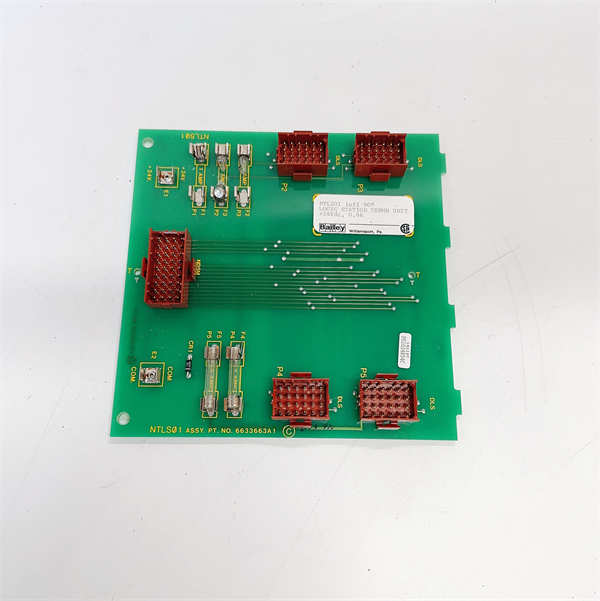

NTLS01 ABB

application area

The ABB NTLS01 logic station terminal unit is mainly used in various industrial fields based on Bailey Net 90 and Infi 90 distributed control systems,as an important component of the logic controller.

Power industry:In DCS systems of power plants and substations,ABB NTLS01 is used to receive digital signals from switches,relays,and other equipment,providing input basis for logic control.

Petrochemical industry:In process control systems such as refineries and chemical plants,ABB NTLS01 is used to collect the digital status of on-site valves,limit switches,and other equipment to achieve logical control and safety interlocking.

Metallurgical industry:In enterprises such as steel mills and non-ferrous metal smelters,ABB NTLS01 is used to monitor and manage the on/off status of various equipment,achieving automated control of production processes.

Water treatment industry:ABB NTLS01 is used to monitor and control the operating status of equipment such as water pumps and valves in automation systems such as water plants and sewage treatment plants.

In other industrial fields such as papermaking,cement,pharmaceuticals,etc.,any application that uses Bailey Net 90 or Infi 90 DCS for logic control may require the use of ABB NTLS01 as the terminal unit of the logic station.

Related products

The products related to ABB NTLS01 logic station terminal unit include:

ABB Bailey NIMCI01 network interface module:used to connect other modules in the Net 90 control network.

ABB Bailey LCM/LMM series control module:As the core logic control unit of Net 90 and Infi 90 systems,it is used in conjunction with NTLS01.

ABB Bailey I/O module(e.g.DIM series digital input module):Used to expand the digital input capability of the system,its signal is connected to NTLS01 through cables.

ABB Bailey MCS(Multi functional Control Station):Operators interact with the DCS system through MCS,and the status information of the logic controller can be transmitted to MCS through the network.

ABB Bailey OIS(Operator Information System):used for monitoring,alerting,and trend display of process data,capable of displaying the status of logic controllers based on NTLS01.

ABB NTDO01 digital output terminal unit:used in conjunction with NTLS01 to transmit the output signal of the logic controller to the on-site actuator.

Installation and maintenance

Preparation before installation:Before installing the ABB NTLS01 logic station terminal unit,please refer to the relevant system installation manual and wiring diagram.Ensure that the installation rack meets the dimensions and electrical requirements of the module,and has good grounding.Check if the ABB NTLS01 module body is intact and if all connectors are damaged.Prepare the correct connecting cables and necessary installation tools.Be sure to perform installation operations in the event of a power outage and ensure that the power supply voltage is consistent with the requirements of the module.Install ABB NTLS01 firmly onto the rack and carefully connect the on-site digital input signal line and the communication cable connected to the logic controller to ensure reliable connection.

Maintenance suggestion:To ensure the long-term stable operation of the ABB NTLS01 logic station terminal unit,it is recommended to perform regular maintenance.Regularly check if the wiring terminals of the module are securely fastened and if there are any signs of looseness or corrosion.Regularly clean the dust on the surface of the module to maintain good heat dissipation.Monitor the working environment temperature of the monitoring module to avoid excessive or insufficient temperature affecting the performance of the module.It is recommended that professional technicians regularly check the input signal connected to ABB NTLS01 to ensure the accuracy and reliability of the signal.Before performing any maintenance operation,be sure to disconnect the power supply of the system.

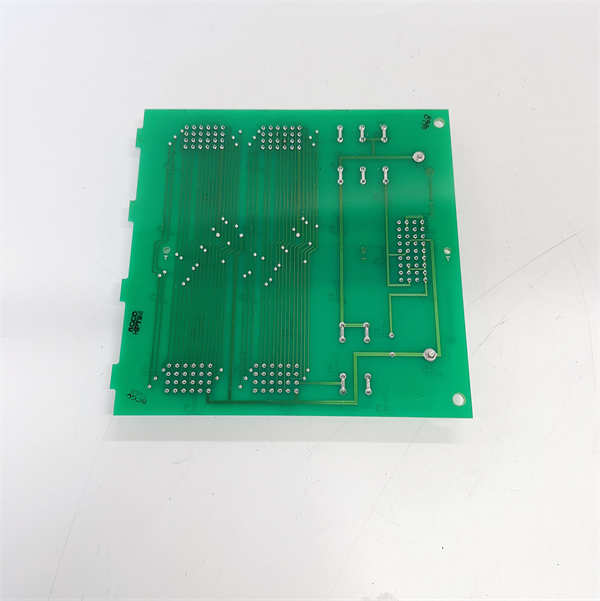

NTLS01 ABB

Product Guarantee

GE Grid Solutions(formerly ALSTOM)provides comprehensive quality assurance for ABB NTLS01 logic station terminal units.We promise that all ABB NTLS01 products leaving the factory undergo strict quality inspection and testing,and comply with relevant industrial standards.During the specified warranty period,we will provide free repair or replacement services for product failures caused by manufacturing defects or material issues.
