Description

SCHNEIDER ELECTRIC TSXCUSBMBP is a USB to Modbus Plus communication adapter(gateway)belonging to Schneider Electric’s Modicon series products.SCHNEIDER ELECTRIC TSXCUSBMBP aims to provide modern computers without traditional Modbus Plus interfaces with the ability to communicate with Modbus Plus networks.Through a simple USB connection,SCHNEIDER ELECTRIC TSXCUSBMBP enables engineers and technicians to program,monitor,and diagnose Modicon PLCs and other industrial devices that support the Modbus Plus protocol.As a compact and easy-to-use device,SCHNEIDER ELECTRIC TSXCUSBMBP plays an important bridging role in the field of industrial automation.It simplifies the connection between PCs and industrial networks,improves maintenance and debugging efficiency,and is an ideal solution for connecting new generation computers with existing Modbus Plus networks.

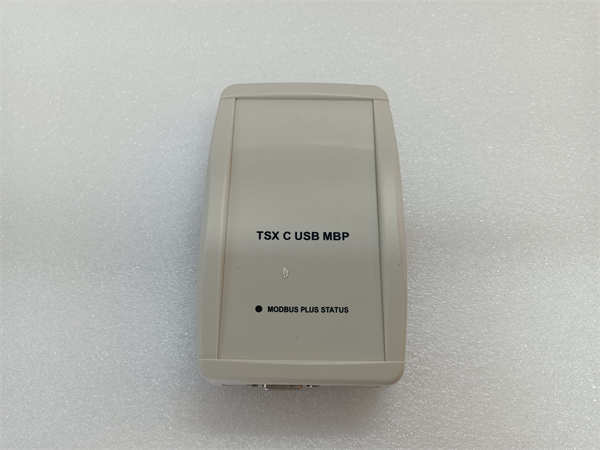

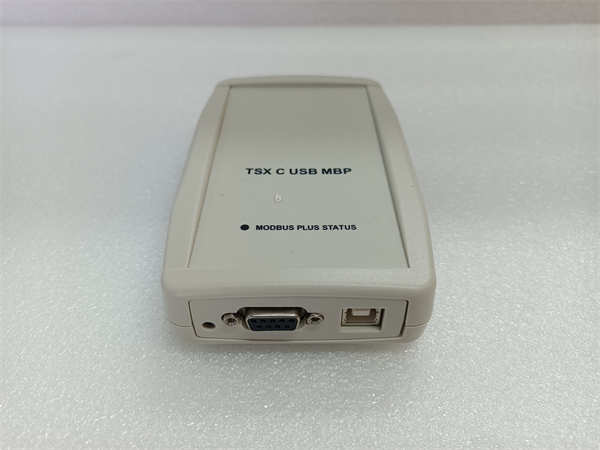

TSXCUSBMBP SCHNEIDER

technical specifications

Product model:TSXCUSBMBP

Manufacturer:SCHNEIDER ELECTRIC

Product Type:USB to Modbus Plus Communication Adapter(Gateway)

Bus type:Modbus Plus

PC interface:USB 1.1 or higher version

Transmission rate:up to 1 Mbps(Modbus Plus)

Power supply:Powered through USB interface

Working temperature:0°C to+60°C

Weight:Approximately 344 grams

Compatibility:Modicon Quantum,Harmony XBT(XBTGK,XBTGTW,XBTGT),etc

Main features and advantages

The SCHNEIDER ELECTRIC TSXCUSBMBP USB to Modbus Plus communication adapter has significant features and advantages.Its main advantage lies in the ability to easily connect computers to Modbus Plus networks through standard USB interfaces,solving the problem of modern computers lacking traditional serial or dedicated interfaces.The SCHNEIDER ELECTRIC TSXCUSBMBP is designed to be compact and lightweight,easy to carry and install,without the need for an additional power source.It is powered directly through the USB interface,simplifying on-site operations.

In addition,SCHNEIDER ELECTRIC TSXCUSBMBP supports Modbus Plus transmission rates of up to 1 Mbps,ensuring efficient data communication.The device is equipped with LED indicator lights to display power,communication status,and error diagnosis information,making it convenient for users to monitor the status and troubleshoot.To ensure smooth communication with computers,SCHNEIDER ELECTRIC TSXCUSBMBP provides corresponding drivers that support mainstream Windows operating systems.As part of Schneider Electric’s mature Modicon product line,SCHNEIDER ELECTRIC TSXCUSBMBP has excellent compatibility and reliability,making it an ideal choice for connecting PCs to Modbus Plus networks.

TSXCUSBMBP SCHNEIDER

application area

The SCHNEIDER ELECTRIC TSXCUSBMBP USB to Modbus Plus communication adapter is widely used in industrial automation fields that require communication between PCs and Modbus Plus networks.During PLC programming and debugging,engineers can use SCHNEIDER ELECTRIC TSXCUSBMBP to connect to Modicon PLC for program uploading,downloading,and online monitoring.In industrial monitoring systems,technicians can use SCHNEIDER ELECTRIC TSXCUSBMBP to collect and analyze device data in real-time on the Modbus Plus network for fault diagnosis and performance optimization.In addition,SCHNEIDER ELECTRIC TSXCUSBMBP is also commonly used for connecting HMI(Human Machine Interface),such as communicating with Harmony XBT series touch screens to enable operators to monitor and control industrial equipment.In summary,SCHNEIDER ELECTRIC TSXCUSBMBP provides a convenient and reliable solution for various application scenarios that require communication between PCs and Modbus Plus networks.

Related products

The products related to SCHNEIDER ELECTRIC TSXCUSBMBP include:

SCHNEIDER ELECTRIC TSX Micro PLC Series:This is a PLC series designed for communication using TSXCUSBMBP.

The SCHNEIDER ELECTRIC Modicon Quantum PLC series:TSXCUSBMBP is also commonly used for connecting and maintaining Modicon Quantum PLCs.

SCHNEIDER ELECTRIC Harmony XBT series HMI:TSXCUSBMBP can be used for communication,configuration,and data transfer between PC and Harmony XBT touch screen.

Modbus Plus network components:including network cards,cables,connectors,etc.,used to build Modbus Plus industrial networks.

SCHNEIDER ELECTRIC PLC programming software,such as Unity Pro,Concept,etc.,requires communication with the PLC through TSXCUSBMBP.

These related products work together with SCHNEIDER ELECTRIC TSXCUSBMBP to build a complete industrial automation control and monitoring system.

Preparation before installation:Before installing the SCHNEIDER ELECTRIC TSXCUSBMBP USB to Modbus Plus communication adapter,please ensure that your computer meets the requirements of the USB interface.Carefully read the product manual to understand the installation steps and precautions.Usually,it is necessary to first install the driver provided by SCHNEIDER ELECTRIC TSXCUSBMBP on the computer.Ensure that the Modbus Plus network is properly set up and powered.Prepare the USB connection cable and Modbus Plus communication cable.

Maintenance suggestion:SCHNEIDER ELECTRIC TSXCUSBMBP is a relatively durable device with simple daily maintenance.It is recommended to regularly check whether the USB connection cable and Modbus Plus communication cable are securely connected and not damaged.Keep the SCHNEIDER ELECTRIC TSXCUSBMBP itself clean to prevent dust and liquids from entering the interior of the equipment.When not in use,it is recommended to keep it properly to avoid impact or falling.If communication failure occurs,you can try restarting the computer and SCHNEIDER ELECTRIC TSXCUSBMBP,and check if the driver program is working properly.

TSXCUSBMBP SCHNEIDER

Product Guarantee

SCHNEIDER ELECTRIC provides standard quality assurance for its industrial automation products.SCHNEIDER ELECTRIC TSXCUSBMBP USB to Modbus Plus communication adapter provides free repair or replacement services for faults caused by manufacturing defects within the specified warranty period.
