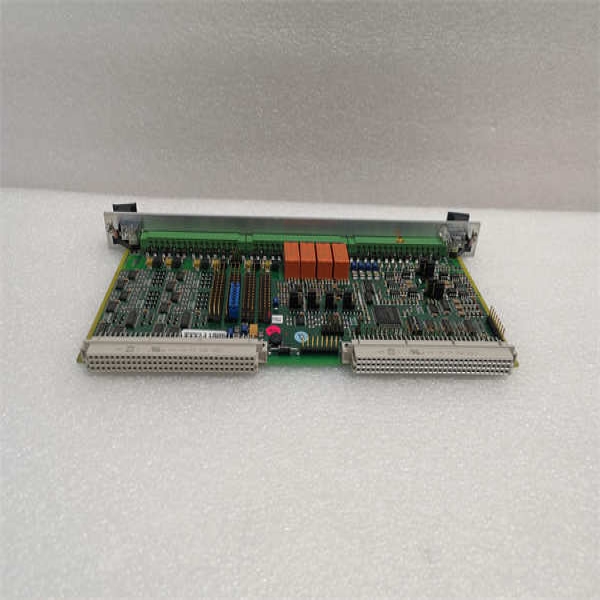

Vibro-meter 200-560-000-113 200-560-101-017 VM600 IOC4T Input/Output Card Detailed Interpretation

Product Overview

Vibro-meter 200-560-000-113 200-560-101-017 VM600 IOC4T is an input/output card designed specifically for the VM600 series vibration monitoring system.As an important component of the system,it is responsible for collecting vibration signals from various sensors and driving relay outputs based on preset thresholds and logic to achieve protection and control of the equipment.

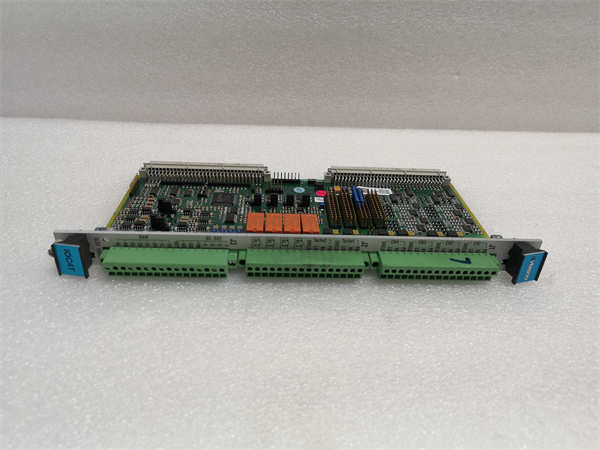

200-560-000-113 200-560-101-017 VM600 IOC4T Vibro meter

Product Features

Multi channel input:supports 4 dynamic signal input channels and 2 tachometer channels,and can monitor multiple measurement points simultaneously.

Flexible configuration:input channel types,gains,filters,and other parameters can be configured to meet different sensor and measurement needs.

Multiple outputs:Provides 4 relay outputs for alarm,interlock,and other control purposes.

High reliability:Adopting industrial grade design,suitable for harsh industrial environments.

Easy to integrate:seamlessly integrated with VM600 system,easy to install.

Product parameters and specifications

Model:200-560-000-113 200-560-101-017 VM600 IOC4T

Input channels:4 dynamic signal input channels,2 tachometer channels

Output channel:4-channel relay output

Communication interface:compatible with VM600 system

Power supply:Powered by VM600 system

Product series

VM600 IOC4T belongs to the VM600 series products of Vibro meter company.The VM600 series is a mechanical protection system with high channel density designed for complex installations.

Product function

Signal acquisition:Collect analog signals from vibration sensors and convert them into digital signals.

Signal processing:filtering,amplifying,and other processing of collected signals.

Alarm output:When the detected vibration signal exceeds the set threshold,the relay output is triggered and an alarm is issued.

Control output:Based on monitoring results,control the operating status of the equipment.

Product Usage

Vibration Monitoring:Suitable for vibration monitoring of various rotating machinery,such as motors,pumps,fans,compressors,etc.

Fault diagnosis:By analyzing vibration signals,diagnose the type of equipment fault.

Equipment protection:issue an alarm before equipment failure to prevent equipment damage.

Process control:Adjust the operating parameters of the equipment based on vibration signals.

application area

Electricity:power plants,substations

Petrochemical industry:Petrochemical equipment

Paper making:Paper making equipment

Steel:Steel equipment

Mining:Mining equipment

200-560-000-113 200-560-101-017 VM600 IOC4T Vibro meter

summary

The Vibro meter VM600 IOC4T is a powerful and highly reliable input/output card,and is one of the core components of the VM600 vibration monitoring system.It achieves real-time monitoring and protection of equipment by collecting vibration signals,processing them,and controlling their output,thereby improving the reliability and availability of the equipment.
