Description

The Vibro-meter 200-566-000-012 200-566-101-012 VM600 IOCN communication interface card is a key component in the Vibro-meter modular VM600 mechanical protection system(MPS).Models 200-566-000-012   200-566-101-012 both refer to this high-performance Vibro meter VM600 IOCN card,which may represent different hardware revisions or configurations that meet specific project requirements.As the communication partner of the central processing unit module(CPUM)in the VM600 system,the main function of the Vibro meter VM600 IOCN is to provide a communication interface between the CPUM and external networks,supporting multiple industry standard communication protocols such as Modbus RTU/TCP and PROFINET.The Vibro meter VM600 IOCN,with its rich Ethernet and serial interfaces,enables the VM600 system to be easily integrated into the factory’s automation and monitoring network,enabling real-time data transmission and remote access.In addition,the Vibro meter VM600 IOCN also has the function of centralized configuration management of protective cards(such as MPC4 and AMC8)in the VM600 rack,simplifying system maintenance and management work.The Vibro meter VM600 IOCN plays a crucial role in modern industrial automation systems,serving as the core hub for data integration and remote management of mechanical protection systems.

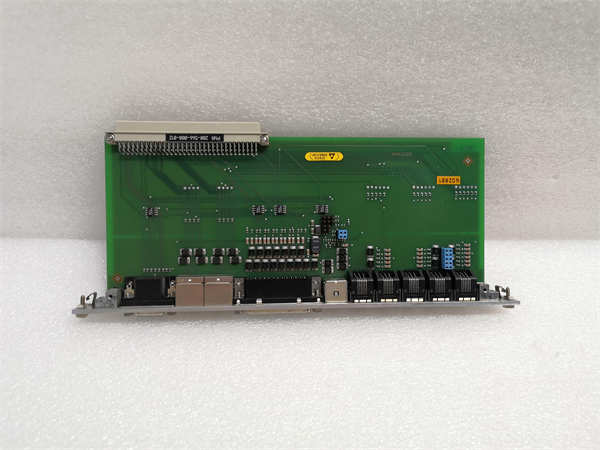

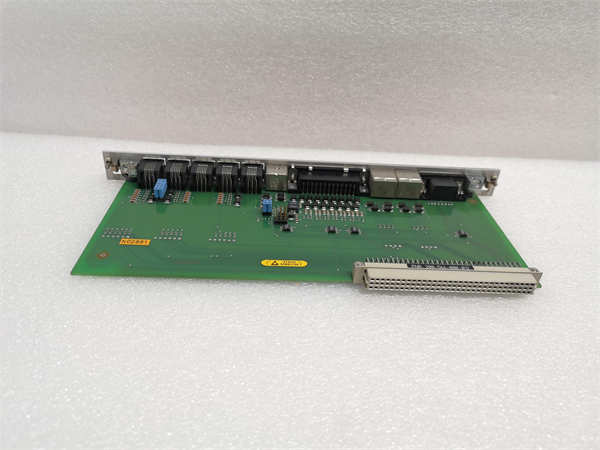

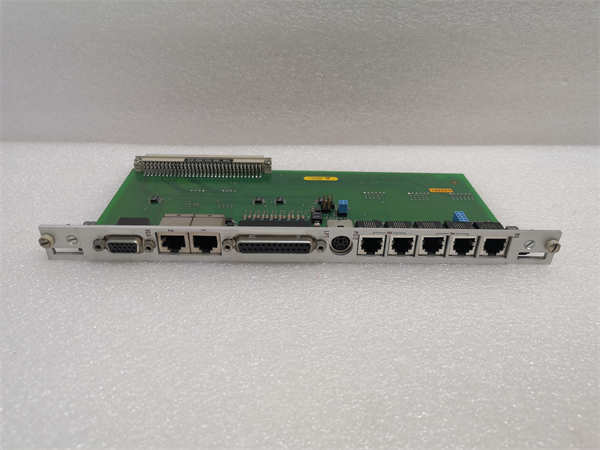

200-566-000-012 200-566-101-012 VM600 IOCN Vibro-meter

technical specifications

Product model:VM600 IOCN

Manufacturer:Vibro meter(Meggitt Sensing Systems/Parker Hannifin)

Product type:Communication interface card

Ethernet interface:2 x 100 Mbps

Serial interface:up to 3,configurable as RS-232/RS-422/RS-485

Supported protocols:Modbus RTU,Modbus TCP,PROFINET

Configuration Management:Supports centralized configuration of VM600 MPSx software through Ethernet or RS-232 connection

Front panel display:used to display monitoring outputs and alarm limits

Alarm reset button:front panel integrated alarm reset(AR)button

Working temperature:-20°C to+60°C

Storage temperature:-40°C to+85°C

Main features and advantages

The Vibro meter VM600 IOCN communication interface card has multiple significant features and advantages,making it an ideal choice for mechanical protection systems in the field of industrial automation.Its powerful communication capabilities support multiple mainstream industrial Ethernet and serial communication protocols,making it easy to integrate VM600 systems into various control and monitoring networks.The Vibro meter VM600 IOCN provides convenient centralized configuration management functions.By connecting to the VM600 MPSx software through Ethernet or serial interfaces,the protection cards in the VM600 rack can be uniformly set and managed,greatly improving the efficiency of system maintenance.Its intuitive front panel display can display key monitoring outputs and alarm limits in real time,making it convenient for operators to conduct local monitoring.The integrated alarm reset button provides convenience for on-site operation.The Vibro meter VM600 IOCN supports communication redundancy and improves communication reliability through multiple Ethernet and/or serial interfaces.In addition,it also supports event and measurement event logging for the VM600 system,facilitating fault diagnosis and historical data analysis.The Vibro meter VM600 IOCN is fully compatible with all VM600(ABE04x)system racks and supports hot swapping and auto configuration of protective cards,further enhancing system availability and maintainability.

200-566-000-012 200-566-101-012 VM600 IOCN Vibro-meter

application area

The Vibro meter VM600 IOCN communication interface card is an important component of the VM600 mechanical protection system,widely used in various industrial fields that require online monitoring and protection of critical rotating machinery,and needs to integrate monitoring data and alarm information into the factory automation network

Power generation industry:used to integrate protection data of key equipment such as steam turbines,gas turbines,water turbines,generators,etc.into DCS systems for remote monitoring and management.

Oil and gas industry:used in monitoring systems for important equipment such as compressors,pumps,fans,etc.,data is transmitted to the upper monitoring system through industrial Ethernet protocol.

Petrochemical industry:applied to the protection and status monitoring of various rotating machinery,such as reactor agitators,compressors,etc.,to achieve seamless connection with the factory control network,facilitating remote diagnosis and maintenance.

Metallurgical industry:used in vibration monitoring systems for blast furnace blowers,sintering fans,rolling mills and other equipment,providing communication interfaces with control systems such as PLC.

Other industrial fields:For industries that use VM600 mechanical protection systems and require data networking and remote management,such as papermaking,cement,pharmaceuticals,etc.,Vibro meter VM600 IOCN can be applied to achieve system integration.

Related products

The products related to the Vibro meter VM600 IOCN communication interface card include:

Vibro meter VM600 CPUM:a central processing unit module used in conjunction with VM600 IOCN as the core controller of the VM600 system.

Vibro-meter VM600 MPC4:a four channel mechanical protection card used for collecting and processing dynamic vibration signals.

Vibro-meter VM600 AMC8:an eight channel mechanical protection card used for collecting and processing dynamic vibration signals.

Vibro meter VM600 IOC4T:Input/output card used for outputting alarm relays and analog signals.

Vibro meter VM600 RLC16:16 channel relay card,used for expanding alarm relay output.

Vibro meter VM600 RACK:a system rack used for installing various cards of the VM600 series.

Vibro meter MPSx software:used for configuration,monitoring,and data analysis of VM600 systems.

Preparation before installation:Before installing the Vibro meter VM600 IOCN communication interface card,please carefully read the installation manual of the VM600 system and the user guide of the Vibro meter VM600 IOCN to ensure that the installation environment meets the requirements.Check if the card packaging is intact and confirm that the model is consistent with the ordered model.Prepare the required Ethernet cables and serial communication cables.Ensure that the VM600 system rack is correctly installed and powered.Carefully insert the Vibro meter VM600 IOCN card into the designated slot of the VM600 system rack and secure it in place.According to the network plan,connect the Ethernet cable to the corresponding interface of Vibro meter VM600 IOCN.If serial communication is required,also connect the corresponding serial cable.Ensure that all connections are firm and reliable.

Maintenance suggestion:In order to ensure the long-term stable operation of the Vibro meter VM600 IOCN communication interface card,it is recommended to regularly check whether the connectors and cables of the card are loose or damaged.Keep the card components and system rack clean to prevent dust accumulation from affecting heat dissipation and communication.Regularly check the status of the front panel LED indicator lights and observe for any abnormal indications.It is recommended to regularly use VM600 MPSx software to check the communication status and configuration of Vibro meter VM600 IOCN.All maintenance operations should be carried out under power-off conditions and operated by personnel with professional knowledge.Follow the maintenance manual of VM600 system and the user guide of Vibro meter VM600 IOCN to conduct regular inspections and maintenance to extend the service life of the equipment.

200-566-000-012 200-566-101-012 VM600 IOCN Vibro-meter

Product Guarantee

Vibro meter(Meggitt Sensing Systems/Parker Hannifin)provides comprehensive quality assurance for the Vibro meter VM600 IOCN communication interface cards it produces.
