Description

HIMA LM002 MAX 985020002 is a high-performance and highly reliable logic solving module,belonging to the HIMA HIMax series of safety control systems.As one of the core processing units of the HIMax system,the HIMA LM002 MAX is responsible for executing safety related control programs,monitoring system status,and conducting safety communication.The HIMA LM002 MAX 985020002 module is designed to meet the highest safety level requirements(such as SIL 3)for applications.Its redundant architecture and comprehensive self diagnostic capabilities ensure that the system can maintain a safe state in the event of hardware failure.The HIMA LM002 MAX is capable of handling complex safety logic and seamlessly integrating with other modules of the HIMax system,such as I/O modules and communication modules,to build a powerful and highly reliable safety control solution.This HIMA LM002 MAX 985020002 logic solving module is a critical component for protecting personnel,the environment,and equipment from danger,and is widely used in industrial fields that require the highest level of safety integrity.

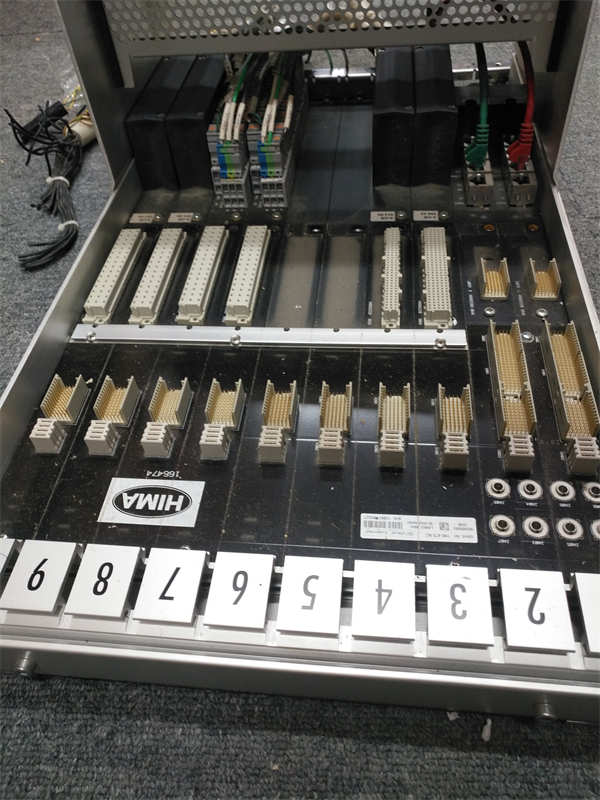

LM002 MAX 985020002 HIMA

technical specifications

Product model:LM002 MAX 985020002

Manufacturer:HIMA

Product type:Logic Solver Module

Compatible system:HIMA HIMax

Processor:Multi core processor

Safety level:SIL 3(according to IEC 61508)

Response time:Extremely short,suitable for safety critical applications

Communication interface:SafeEthernet,Modbus TCP,[Other protocols depend on configuration]

Diagnostic function:Comprehensive self diagnostic function,covering both hardware and software

Installation method:HIMax system base plate installation

Main features and advantages

Highest Safety Level Certification:HIMA LM002 MAX 985020002 has passed the SIL 3 safety level certification and complies with the IEC 61508 standard.It is suitable for industrial applications with extremely high safety requirements and can effectively reduce safety risks.

Redundant design:The HIMax system itself emphasizes redundant architecture,and the HIMA LM002 MAX is usually paired with redundant CPU modules to achieve seamless fault switching,ensuring that the system can still operate safely in the event of hardware failures and maximizing system availability.

High performance processing capability:HIMA LM002-MAX is equipped with a powerful multi-core processor that can quickly execute complex safety logic and control algorithms,ensuring that the system can make timely and safe responses under various operating conditions.

Secure Communication Protocol:Supports secure communication protocols such as SafeEthernet to ensure reliable and secure transmission of security related data within the system and between other security devices.

Comprehensive self diagnostic function:HIMA LM002 MAX 985020002 has complete hardware and software self diagnostic functions,which can monitor the operation status of modules and systems in real time,detect and report potential faults in a timely manner,and improve the maintainability and safety of the system.

Flexible programming environment:HIMA’s programming tools provide an intuitive and easy-to-use interface and a programming language that complies with the IEC 61131-3 standard,making it convenient for users to develop and maintain safety control programs.

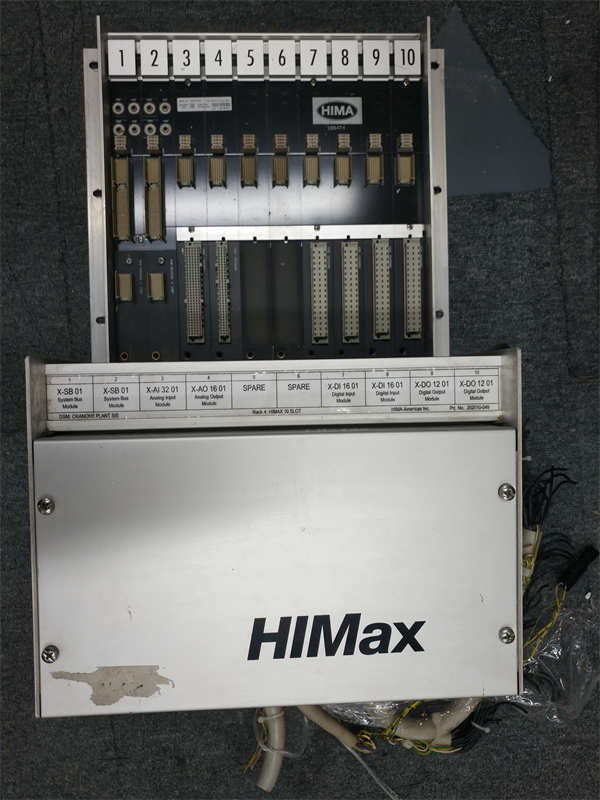

LM002 MAX 985020002 HIMA

application area

The HIMA LM002 MAX 985020002 logic solving module is widely used in industrial fields that require the highest level of safety integrity,such as:

Oil and gas:used for safety critical applications such as emergency shutdown systems(ESD),flame and gas detection systems(F&G).

Chemical industry:applied to reactor safety control,pressure release systems,and toxic substance leakage prevention.

Electricity:Used for safety control systems in nuclear power plants and emergency protection systems in power plants.

Rail transit:applied to the safety part of train control system and signal system.

Other high-risk industries:Any critical industrial process involving personnel,environment,and equipment safety requires the use of high reliability safety control systems such as HIMA LM002-MAX.

Related products

HIMA F8628X:The main controller CPU module of the HIMax series is usually paired with HIMA LM002-MAX to achieve redundant control.

HIMA F3xxx series I/O modules:Safety digital and analog input/output modules for HIMax systems,used to connect field sensors and actuators.

HIMA S8630:The safety power module of the HIMax system provides reliable power supply for the system.

HIMA SafeEthernet Switch:Used to build a secure communication network for HIMax systems.

HIMA SILworX is a safety programming and configuration tool for HIMA,used to develop and maintain safety control programs for HIMA LM002_maX.

Preparation before installation:Before installing the HIMA LM002 MAX 985020002 logic solving module,please refer to the installation manual and safety guide of the HIMA HIMax system.Ensure that the HIMax system motherboard is correctly installed and grounded,and that the power is disconnected.Check if the packaging of the HIMA LM002_maX module is intact and confirm that the model is consistent with the required specifications.Carefully insert the HIMA LM002 MAX module into the designated slot on the HIMax system motherboard and ensure that the connector is securely connected.Connect the power and communication cables correctly according to the system design and wiring diagram.

Maintenance suggestion:In order to ensure the long-term stable operation of the HIMA LM002 MAX 985020002 logic solving module,it is recommended to regularly check whether the module’s connection on the system motherboard is stable and whether the external cable connection is loose or damaged.Keep the surface of the module clean to avoid dust accumulation.Regularly check whether the power supply and environmental conditions of the HIMax system meet the requirements.Due to the application of the HIMA system in safety critical areas,any maintenance operations should be carried out by professionally trained personnel in accordance with the HIMA maintenance manual.

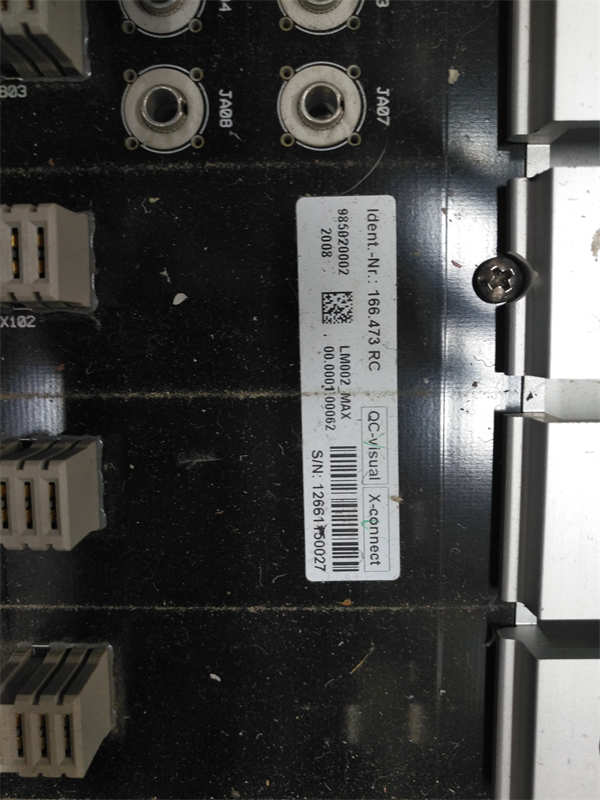

LM002 MAX 985020002 HIMA

Product Guarantee

HIMA provides high standard quality assurance for its safety control product HIMA LM002 MAX 985020002.All products undergo strict testing and inspection before leaving the factory to ensure that their performance meets the highest safety level and technical standards.
