Description

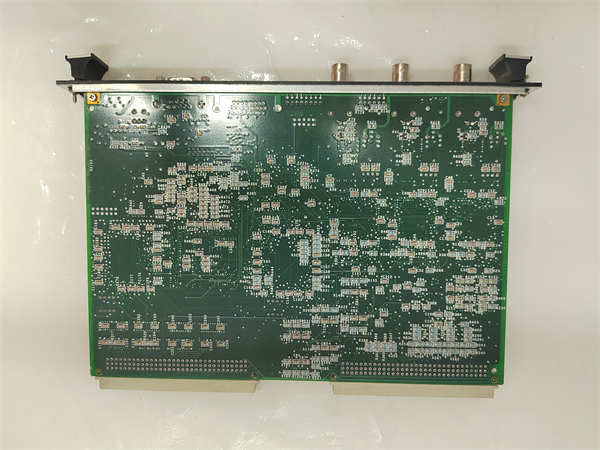

GE IS215VCMIH2CA and GE IS200VCMIH2CAA are both VME communication interface cards in the General Electric(GE)Mark VI Speedtronic gas turbine control system.These cards play a critical role in the control and interface modules,facilitating internal communication between their rack mounted I/O boards and communication with other IS215VCMIH2CA cards through IONet.This board uses SMD components and connectors,and adopts a multi-layer PCB design.It has a conformal coating for protecting the PCB.GE IS200VCMIH2CAA serves as the VME bus master controller,managing the data flow within the VME bus,ensuring that data packets are transmitted to and from the controller and I/O board at precise timing and sequence.

technical specifications

Product models:IS215VCMIH2CA,IS200VCMIH2CAA

Manufacturer:GE(General Electric)

Product Type:VME Communication Interface Card

Applicable system:GE Mark VI Speedtronic gas turbine control system

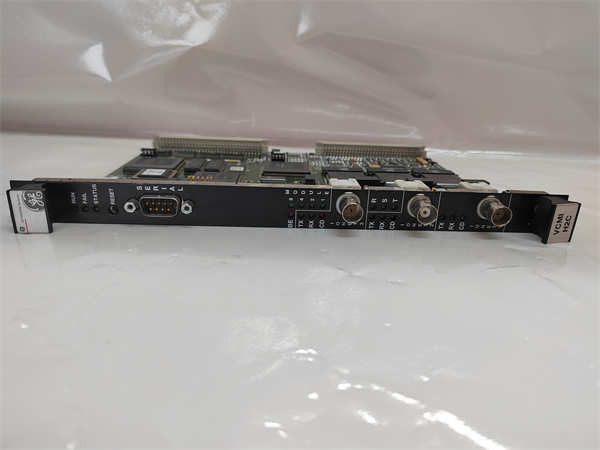

Front panel interface:1 x serial port,3 x IONet 10Base2 Ethernet connectors

VMEbus interface:Advanced VMEbus interface,dual port RAM

Processor:TMS320C32 32-bit

Memory:32 Kbytes dual port RAM

Power requirements:+5 V DC,6 A;28 V dc(18-32 VDC)

Working temperature:40 to 70°C

Size:168 x 150 x 55 mm

Main features and advantages

The GE IS215VCMIH2CA GE IS200VCMIH2CAA communication board is a component of the GE Mark VI Speedtronic series gas turbine control system,designed specifically for VME communication interfaces.

Communication Interface:These boards play a critical role in the control and interface modules,facilitating internal communication between their rack mounted I/O boards and communication with other IS215VCMIH2CA cards through IONet.

Dual Function Revision(IS215VCMIH2CA):IS215VCMIH2CA is a modified version of the IS215VCMIH2 parent board,which includes two important functional revisions rated as”C”and”A”respectively.

VME Bus Controller(IS200VCMIH2CAA):As the VME Bus Controller,IS200VCMIH2CAA manages the data flow within the VME bus,ensuring that data packets are transmitted to and from the controller and I/O board at precise timing and sequence.

Board Identification and Addressing(IS200VCMIH2CAA):The VME bus controller assigns a unique address to each board in the rack,creating a structured address mapping for targeted communication.

Multi Port Connection(IS215VCMIH2CA):The front panel of IS215VCMIH2CA contains four port connectors,including RS-232C serial port and three IONet 10Base2 Ethernet connectors.

High speed data transmission(IS200VCMIH2CAA):For applications that require high-speed data transmission with minimal latency,VCMI provides a second IONet port that can be used as a parallel IONet channel.

IS215VCMIH2CA IS200VCMIH2CAA GE

application area

The GE IS215VCMIH2CA and IS200VCMIH2CAA communication boards are mainly used for the GE Mark VI Speedtronic gas turbine control system.They are used for various industrial automation applications,including:

Gas Turbine Control

Industrial automation system

scada

Related products

GE Mark VI control module:Used in conjunction with IS215VCMIH2CA and IS200VCMIH2CAA to form a complete gas turbine control system.

GE IS200 series I/O modules:used to connect field sensors and actuators,and communicate with control systems through IS215VCMIH2CA or IS200VCMIH2CAA.

GE Speedtronic Control System Software:A software tool used for configuring,programming,and monitoring Mark VI control systems.

GE network switch:used to build communication networks for control systems,supporting network communication for modules such as IS215VCMIH2CA and IS200VCMIH2CAA.

GE power module:provides stable and reliable power supply for the Mark VI control system.

Preparation before installation:Before installing IS215VCMIH2CA or IS200VCMIH2CAA,please refer to the relevant GE Mark VI system manual and module manual to ensure that the installation environment meets the technical specifications of the module.Check if the appearance of the module is intact and confirm that there is no transportation damage.Ensure that the control system rack is powered off and correctly insert the IS215VCMIH2CA or IS200VCMIH2CAA module into the VMEbus slot of the rack according to the instructions in the system manual.Use cables of the correct specifications to connect on-site equipment and control networks,and ensure that the connections are firm and reliable.

Maintenance suggestion:In order to ensure the long-term stable and reliable operation of IS215VCMIH2CA and IS200VCMIH2CAA,regular maintenance is recommended.Regularly check whether the module connections in the rack are loose,whether there is dust or dirt accumulation,and clean them in a timely manner.Maintain good ventilation inside the control cabinet to avoid module overheating.Regularly check whether the external cable connections are reliable and whether there are signs of aging or damage.It is recommended to conduct regular system checks and diagnostics according to the maintenance manual of the GE Mark VI system.If any abnormality or malfunction is found in the module,it should be replaced in a timely manner and handled by professional personnel.Before performing any maintenance operation,it is necessary to disconnect the power supply of the control system to ensure personnel safety.

IS215VCMIH2CA IS200VCMIH2CAA GE

Product Guarantee
