Description

Vibro Meter SIM-275D-24 200-582-200-011 is a high-performance Rack Mount Power Supply module,typically used as part of or compatible with the RPS6U(Rack Power Supply 6U)of VM600 systems.It provides stable and reliable power supply for all modules installed in the VM600 rack,ensuring the normal operation of the system.The Vibro Meter 200-582-200-011 is a specific order number or configuration for the Vibro Meter SIM-275D-24 power module,which may differ in certain technical details or certifications,but its core function is still to power the VM600 system.These two power modules are crucial for building stable and reliable mechanical protection and condition monitoring systems,ensuring continuous monitoring and safe operation of critical industrial equipment.

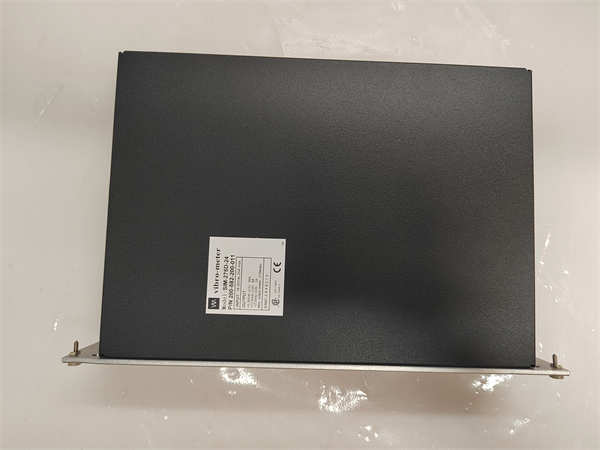

SIM-275D-24 200-582-200-011 Vibro-Meter

technical specifications

Product model:SIM-275D-24200-582-200-011

Manufacturer:Vibro Meter(Meggitt Sensing Systems)

Product Type:Rack Mount Power Supply Module

Applicable system:Vibro Meter VM600 series mechanical protection and condition monitoring system

Input voltage:18-32 V DC

Output voltage:+5.35 V DC(up to 35-50 A),+12.5 V DC(up to 6-8 A),-12.5 V DC(up to 2-4 A)(specific parameters depend on the version)

Maximum output power:300 W or 330 W(depending on version)

Installation method:19 inch standard 6U rack installation

Working temperature:-40°C to+70°C

Storage temperature:-40°C to+85°C

Protection functions:output overvoltage protection,short circuit protection,overload protection

Status indication:LED indicator light displays power status and fault conditions

Main features and advantages

The Vibro Meter SIM-275D-24 and Vibro Meter 200-582-200-011 power modules are key components of the Vibro Meter VM600 series,providing a solid foundation for the stable operation of the system.

High reliability power supply:These two power modules are designed specifically for harsh industrial environments,providing stable and reliable DC power to ensure the continuous operation of the VM600 system and all its monitoring modules,thereby ensuring the safety of critical equipment.

Wide input voltage range:The Vibro Meter SIM-275D-24 typically supports a wide input voltage range of 18-32 V DC,allowing it to adapt to different industrial power environments and improve installation flexibility.

Overload and Short Circuit Protection:Equipped with comprehensive overload and short circuit protection mechanisms,it can effectively prevent damage to the power module and the entire VM600 system caused by power failures,improving the safety and durability of the system.

Clear status indication:Equipped with clear LED status indicator lights,it can display the working status of the power module and any potential fault conditions in real time,facilitating users to quickly diagnose and maintain.

Easy rack installation:Adopting a standard 19 inch 6U rack installation design,the Vibro Meter SIM-275D-24 and Vibro Meter 200-582-200-011 can be easily integrated into existing industrial control systems.

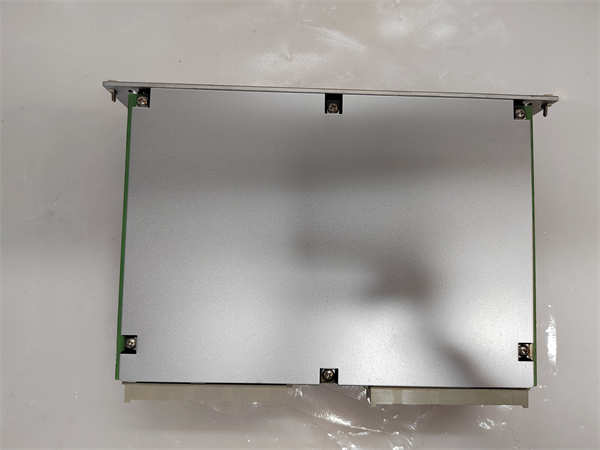

SIM-275D-24 200-582-200-011 Vibro-Meter

application area

The Vibro Meter SIM-275D-24 and Vibro Meter 200-582-200-011 power modules are the core power supply units of the Vibro Meter VM600 series mechanical protection and condition monitoring systems,widely used in the following industrial fields:

Power industry:used to monitor the vibration and status of key rotating machinery such as turbines and generators,ensuring the safe and stable operation of power plants.

Petrochemical industry:applied to vibration monitoring of equipment such as compressors,pumps,fans,etc.,to prevent equipment failures and improve production efficiency.

Metallurgical industry:used to monitor the operating status of large equipment such as blowers and rolling mills,ensuring the continuity and safety of the production process.

Other heavy industries,such as papermaking and cement,are used for vibration monitoring and protection of critical rotating equipment.

In any industrial field that requires real-time vibration monitoring and protection of large rotating machinery,the VM600 system and its accompanying Vibro Meter SIM-275D-24 and Vibro Meter 200-582-200-011 power modules play a crucial role.

Related products

Vibro Meter VM600 MPC4:a four channel mechanical protection card used to receive and process signals from vibration sensors.

Vibro Meter VM600 IOC4T:Input/output card used for signal input and output,as well as communication with external systems.

Vibro Meter VM600 XMV16:16 channel vibration monitoring module,used for high channel density vibration monitoring applications.

Vibro Meter VM600 CPUM:Central processing unit module used for system configuration,data processing,and communication management.

Vibro Meter VM600 ABE04x Rack:A standard 19 inch rack used for installing VM600 series modules.

Vibro Meter vibration sensor:such as piezoelectric accelerometer,eddy current sensor,etc.,used to collect vibration signals of equipment.

Preparation before installation:When installing the Vibro Meter SIM-275D-24 or using the VM600 system that includes the Vibro Meter 200-582-200-011,please refer to the relevant Vibro Meter VM600 system manual and power module manual to ensure that the installation environment meets the technical specifications.Check if the appearance of the power module is intact and confirm that there is no transportation damage.Ensure that the VM600 rack is powered off and correctly install the power module into the power slot of the rack according to the instructions in the system manual.Connect the external DC power supply with a power cord that meets the requirements,and ensure that the wiring is correct and reliable,paying attention to polarity.

Maintenance suggestion:In order to ensure the long-term stable and reliable operation of the Vibro Meter SIM-275D-24 and Vibro Meter 200-582-200-011 power modules,regular maintenance is recommended.Regularly check whether the connection of the power module in the rack is loose,whether there is dust or dirt accumulation,and clean it in a timely manner.Maintain good ventilation inside the control cabinet to avoid module overheating.Regularly check whether the external power cord connection is reliable and whether there are signs of aging or damage.It is recommended to conduct regular system checks and diagnostics according to the maintenance manual of the Vibro Meter VM600 system.If any abnormality or malfunction is found in the power module,it should be replaced in a timely manner and handled by professional personnel.Before performing any maintenance operations,it is essential to disconnect the power supply of the VM600 system to ensure personnel safety.

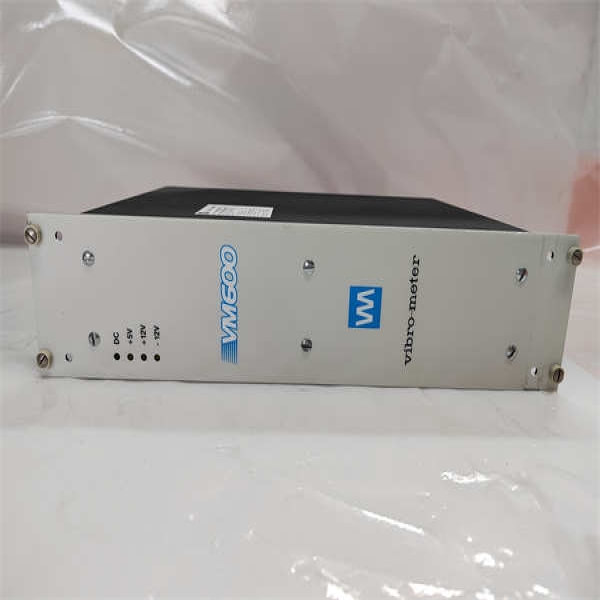

SIM-275D-24 200-582-200-011 Vibro-Meter

Product Guarantee

As a leading global supplier of mechanical condition monitoring solutions,Meggitt Sensing Systems(through its Vibro Meter product line)has strict standards for the quality and service of its products.The Vibro Meter SIM-275D-24 and Vibro Meter 200-582-200-011 power modules undergo comprehensive testing and quality control before leaving the factory to ensure their stable and reliable performance.We promise to provide users with comprehensive product quality assurance.During the warranty period,we will provide free repair or replacement services for any faults caused by product quality issues.
