Description

ICS TRIPLEX T815B is a high-performance Trusted Communication Interface(CI)module belonging to the ICS Triplex Trusted TMR(Triple Redundancy)system under Rockwell Automation.As an intelligent communication bridge for Trusted controllers,ICS TRIPLEX T815B aims to provide a wide range of communication services and significantly reduce the communication load of Triple Redundancy(TMR)processors,thereby optimizing the overall performance and reliability of the system.ICS TRIPLEX T815B is a user configurable module that supports multiple communication media and can support up to four communication interface modules in a Trusted system.It is equipped with dual Ethernet ports and four serial ports,supporting various communication protocols including Modbus RTU,Open Modbus TCP,Trusted Peer to Peer,and Trusted Enhanced Peer to Peer.ICS TRIPLEX T815B provides secure and reliable communication through high-performance communication links,and is a key component in building high availability and high security industrial control systems.

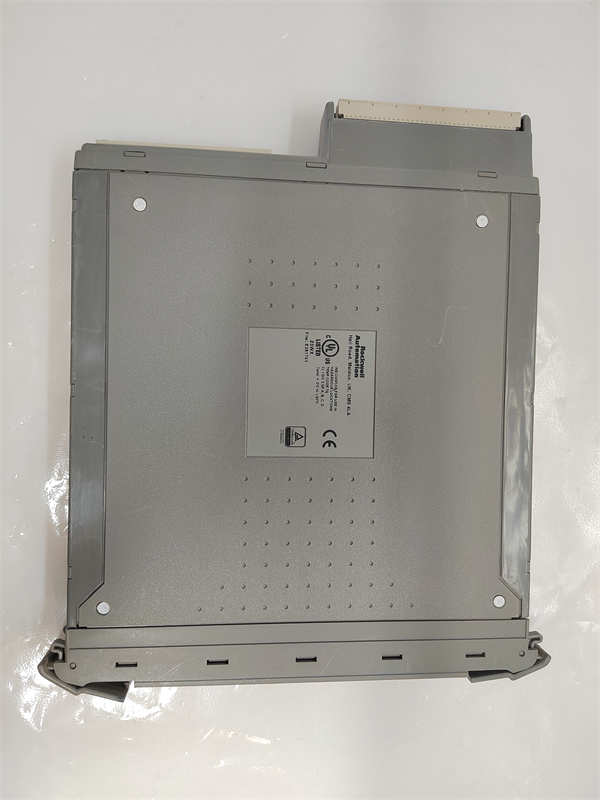

T8151B ICS TRIPLEX

technical specifications

Product model:T8151B

Manufacturer:ICS TRIPLEX(under Rockwell Automation)

Product Type:Trusted Communication Interface Module

Applicable system:ICS TRIPLEX Trusted TMR system

Ethernet interface:2 x 10/100BaseT

Serial interface:2 x RS-232/422/485,2 x RS-422/485,1 x RS-232(diagnostic)

Communication protocol:Modbus RTU,Open Modbus TCP,Trusted Peer to Peer,Trusted Enhanced Peer to Peer,ICS2000,CP2000

SOE buffer:4000 events

Backplane power supply:20 Vdc to 32 Vdc

Power consumption:10 W

Working temperature:0°C to+60°C

Storage temperature:-25°C to+70°C

Relative humidity:10%to 95%,non condensing

Main features and advantages

The ICS TRIPLEX T8151B Trusted Communication Interface Module provides powerful and reliable communication capabilities for Trusted control systems,with the following significant features and advantages:

Trusted operating system:ICS TRIPLEX T8151B runs on top of the Trusted operating system,ensuring the stability and security of communication processes.

Rich communication interfaces:equipped with dual Ethernet ports and four serial ports,ICS TRIPLEX T815B can flexibly connect various external systems and devices.

Wide protocol support:ICS TRIPLEX T8151B supports multiple commonly used industrial communication protocols,facilitating data exchange with different types of devices.

High performance communication link:Through a high-performance communication link,ICS TRIPLEX T8151B ensures fast and reliable transmission of data.

Reducing processor load:As an intelligent communication interface,ICS TRIPLEX T815B effectively shares the communication tasks of Trusted processors,improving the overall performance of the control system.

Optional Modbus Function:ICS TRIPLEX T8151B can optionally support Modbus Master function(with T812X processor interface adapter)and Modbus based Sequence of Events(SOE).

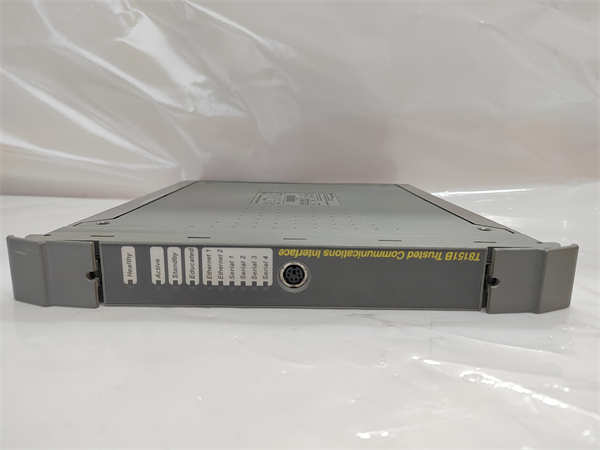

Front panel diagnostic interface:ICS TRIPLEX T8151B provides a front panel serial diagnostic port and fault and status indicator lights for easy system diagnosis and maintenance.

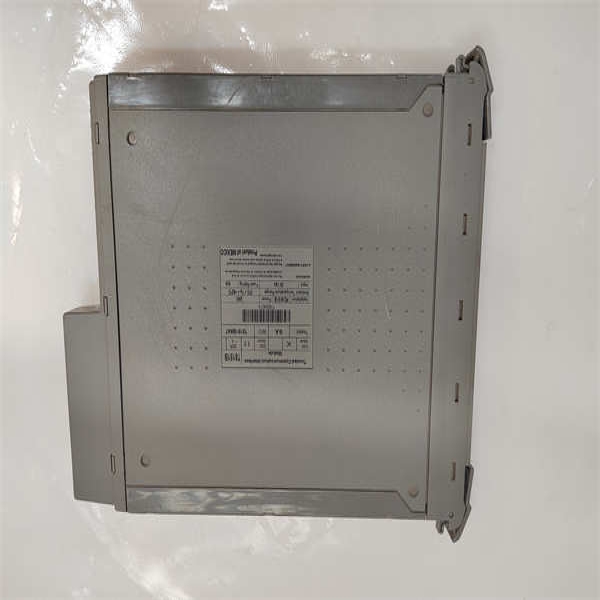

T8151B ICS TRIPLEX

application area

The ICS TRIPLEX T8151B Trusted Communication Interface Module,with its high reliability and flexible communication capabilities,is widely used in critical industrial fields that require high availability and security

Safety Instrumented System(SIS):Used for reliable communication with other safety systems or monitoring systems in safety critical applications such as Emergency Shutdown Systems(ESD),Fire and Gas Detection Systems(F&G).

Key process control:Used in key control circuits in industries such as oil and gas,chemical,and power to exchange data with upper monitoring systems,historical databases,or other control equipment.

Factory automation:used to connect different automation subsystems,achieve data integration and collaborative control.

Any industrial automation application that requires redundant communication and support for multiple communication protocols.

Related products

ICS TRIPLEX T8110B:Trusted TMR power module,providing reliable power supply for ICS TRIPLEX T815B and other Trusted system modules.

ICS TRIPLEX T812X:Trusted processor interface adapter,used in conjunction with ICS TRIPLEX T815B to achieve Modbus Master functionality.

ICS TRIPLEX T8311:Trusted TMR Expansion Interface Module,used to expand the I/O capacity of Trusted systems.

ICS TRIPLEX T8400 series I/O module:used to connect field sensors and actuators for control and data acquisition through a Trusted system.

ICS TRIPLEX AADvance Workbench:a software tool used for configuring,programming,and diagnosing Trusted control systems.

Preparation before installation:Before installing the ICS TRIPLEX T8151B Trusted communication interface module,please refer to the relevant ICS Triplex system manual and T8151B module manual to ensure that the installation environment meets the technical specifications of the module.Check if the appearance of the module is intact and confirm that there is no transportation damage.Ensure that the Trusted system rack is powered off and follow the instructions in the system manual to correctly insert the ICS TRIPLEX T815B module into the designated communication interface module slot.When connecting the required Ethernet and serial communication cables,be sure to use cables that meet the requirements and connect them correctly according to the wiring diagram.

Maintenance suggestion:To ensure the long-term stable and reliable operation of the ICS TRIPLEX T8151B Trusted communication interface module,regular maintenance is recommended.Regularly check whether the module is securely connected in the rack and whether there is any looseness.Keep the interior of the control cabinet clean to prevent dust and foreign objects from entering the module,affecting its heat dissipation and electrical connections.Regularly check whether the connection of communication cables is reliable and whether there are signs of aging or damage.It is recommended to conduct regular system function testing and diagnostic checks according to the maintenance manual of the Trusted system.If any abnormality or malfunction is found in the module,it should be replaced in a timely manner and handled by professionally trained personnel.Before performing any maintenance operation,it is necessary to disconnect the power supply of the control system to ensure personnel safety.

T8151B ICS TRIPLEX

Product Guarantee

Rockwell Automation(through its ICS Triplex product line)has strict standards for the quality and service of its products.The ICS TRIPLEX T8151B Trusted communication interface module undergoes comprehensive testing and quality control before leaving the factory to ensure its stable and reliable performance.We promise to provide users with comprehensive product quality assurance.During the warranty period,we will provide free repair or replacement services for any faults caused by product quality issues.
