Description

ICS TRIPLEX T8310 is a Trusted TMR extension processor module designed specifically for ICS Triplex Trusted TMR(Triple Redundancy)systems.As a core component in the Trusted expansion chassis,the ICS TRIPLEX T8310 serves as a”slave”interface between the expansion bus and the expansion chassis backplane,enabling the Trusted system to increase additional I/O capacity through the expansion chassis to meet the needs of large or complex industrial applications.The ICS TRIPLEX T8310 adopts a hardware implemented fault-tolerant(HIFT)architecture,ensuring true 3-2-0 fault-tolerant operation,even in the event of up to two component failures,the system can still maintain normal operation.This module supports hot standby and module spare parts configuration,facilitating automatic or manual fault repair strategies.The ICS TRIPLEX T8310 operates with a 50 MHz module clock and a 250 Mbps expansion bus data rate,providing high-performance and high reliability guarantees for the expansion system.

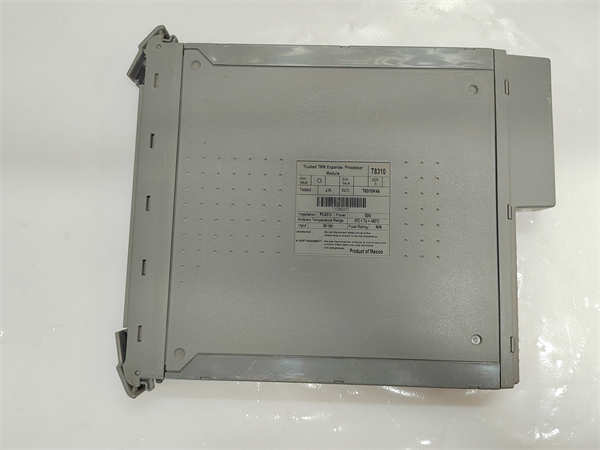

T8310 ICS TRIPLEX

technical specifications

Product model:T8310

Manufacturer:ICS TRIPLEX(under Rockwell Automation)

Product Type:Trusted TMR Extended Processor Module

Applicable system:ICS TRIPLEX Trusted TMR system

Processor:A processor based on TMR architecture

Module clock:50 MHz

Extended bus speed:250 Mbps

Power requirements:20 VDC to 32 VDC

Maximum power consumption:40 W

Heat dissipation:40 W

Compatible chassis:T8300 expansion chassis

Working temperature:-40°C to+85°C

Installation method:ICS TRIPLEX Trusted TMR system expansion chassis slot installation

Main features and advantages

The ICS TRIPLEX T8310 Trusted TMR Extended Processor Module is a key component for expanding the I/O capacity of Trusted systems,with the following significant features and advantages:

Triple Redundancy(TMR)Architecture:ICS TRIPLEX T8310 adopts a true TMR architecture,with all key components configured with three-way redundancy to achieve 3-2-0 fault-tolerant operation.Even in the event of two channel failures,the system can still operate reliably.

Hardware implemented fault tolerance(HIFT):Integrated with the HIFT architecture,it provides fast and reliable fault detection and processing capabilities,further enhancing the system’s availability.

Hot Standby and Module Spare Parts:Supports hot standby and module spare parts configurations,allowing for the replacement of faulty modules during system operation and minimizing downtime.

High performance expansion bus interface:ICS TRIPLEX T8310 provides an expansion bus data rate of up to 250 Mbps,ensuring high-speed data exchange between the expansion chassis and the main control chassis.

Comprehensive diagnostic function:Built in comprehensive diagnostic,monitoring,and testing mechanisms that can quickly identify and locate faults,simplifying the maintenance process.

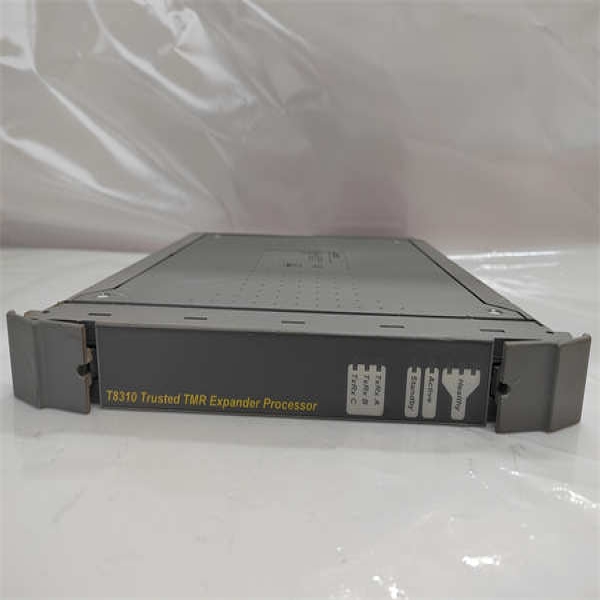

Front panel status indicator:Equipped with front panel LED indicator lights,it clearly displays the health and operating status of the module,making it convenient for users to monitor the status.

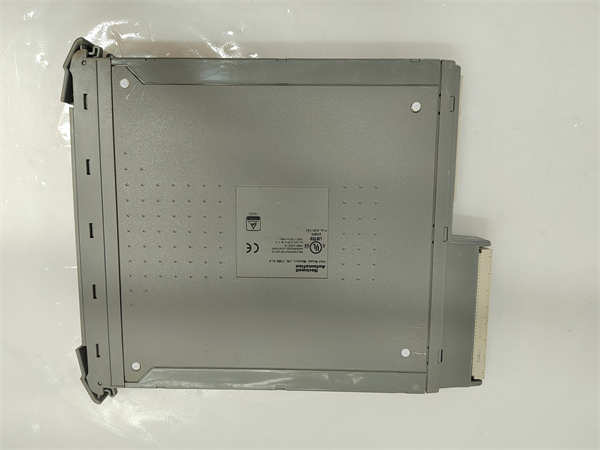

T8310 ICS TRIPLEX

application area

The ICS TRIPLEX T8310 Trusted TMR Extended Processor Module is mainly used in ICS Triplex Trusted TMR systems that require expansion of I/O capacity,and is suitable for the following key industrial fields:

Safety Instrumented System(SIS):In large or complex Emergency Shutdown Systems(ESD),Fire and Gas Detection Systems(F&G),it is necessary to expand the I/O points to connect more safety instruments and actuators.

Key process control:In complex control applications in industries such as oil and gas,chemical,and power,it is necessary to expand the I/O capacity to achieve monitoring and control of more process variables.

Factory automation:In large manufacturing plants,it is necessary to expand I/O points to integrate more automation equipment and sensors.

Any industrial automation application that requires high availability,high security,and large-scale I/O capacity.

Related products

ICS TRIPLEX T8300:Trusted TMR Expansion Chassis,used for installing ICS TRIPLEX T8310 expansion processor modules and various I/O modules.

ICS TRIPLEX T8311:Trusted TMR Expansion Interface Module,used to connect the expansion bus and achieve communication between the main control chassis and the expansion chassis.

ICS TRIPLEX T8110B:Trusted TMR power module,providing reliable power for ICS TRIPLEX T8310 and other modules in the expansion chassis.

ICS TRIPLEX T8400 series I/O module:used to connect field sensors and actuators,installed in the T8300 expansion chassis,and communicates with the main controller through T8310.

ICS TRIPLEX AADvance Workbench:a software tool used for configuring,programming,and diagnosing Trusted control systems,including extended systems.

Preparation before installation:Before installing the ICS TRIPLEX T8310 Trusted TMR Extended Processor module,please refer to the relevant ICS Triplex system manual and T8310 module manual to ensure that the installation environment meets the technical specifications of the module.Check if the appearance of the module is intact and confirm that there is no transportation damage.Ensure that the Trusted system and its expansion chassis are powered off,and follow the instructions in the system manual to correctly insert the ICS TRIPLEX T8310 module into the designated processor slot on the expansion chassis.Connect the expansion bus cable to ensure a secure and reliable connection.

Maintenance suggestion:To ensure the long-term stable and reliable operation of the ICS TRIPLEX T8310 Trusted TMR Extended Processor module,it is recommended to perform regular maintenance.Regularly check whether the connections of the module in the expansion chassis are loose,whether there is dust or dirt accumulation,and clean them in a timely manner.Maintain good ventilation inside the control cabinet and expansion chassis to avoid module overheating.Regularly check whether the connection of the expansion bus cable is reliable and whether there are signs of aging or damage.It is recommended to conduct regular system function testing and diagnostic checks according to the maintenance manual of the Trusted system.If any abnormality or malfunction is found in the module,it should be replaced in a timely manner and handled by professionally trained personnel.Before performing any maintenance operations,it is necessary to disconnect the power supply of the control system and its expansion chassis to ensure personnel safety.

T8310 ICS TRIPLEX

Product Guarantee

Rockwell Automation(through its ICS Triplex product line)has strict standards for the quality and service of its products.The ICS TRIPLEX T8310 Trusted TMR expansion processor module undergoes comprehensive testing and quality control before leaving the factory to ensure its stable and reliable performance.We promise to provide users with comprehensive product quality assurance.During the warranty period,we will provide free repair or replacement services for any faults caused by product quality issues.
