Description

HIMA F3237 984323702 is a high-performance 8-channel safety related input module designed specifically for HIMA HIMatrix safety systems and plays a crucial role in fields such as process industry,power generation,and transportation.As an industrial grade safety module certified to SIL 3(Safety Integrity Level 3),HIMA F3237 is capable of receiving signals from various safety related sensors,including proximity switches and resistive wiring sensors that comply with DIN 19234(NAMUR)standards.This module has excellent online diagnostic capabilities and automatically executes comprehensive self checking routines during operation,including on/off capability testing,crosstalk detection of input circuits,verification of input filter functions,and monitoring of short circuits and disconnections in sensor circuits.

The core value of F3237 lies in its ability to provide highly reliable signal input for safety critical applications,ensuring that the system can quickly take protective measures when anomalies are detected.Its single channel,current isolated input design effectively prevents the propagation of electrical faults,while high diagnostic coverage ensures the correct operation of the module itself.Through the onboard LED status indicator lights,operators can intuitively understand the working status of the module.HIMA 984323702,with its robust design and stable performance in harsh industrial environments,is an ideal choice for building high integrity Safety Instrumented Systems(SIS),which can significantly improve the operational safety and availability of factories.

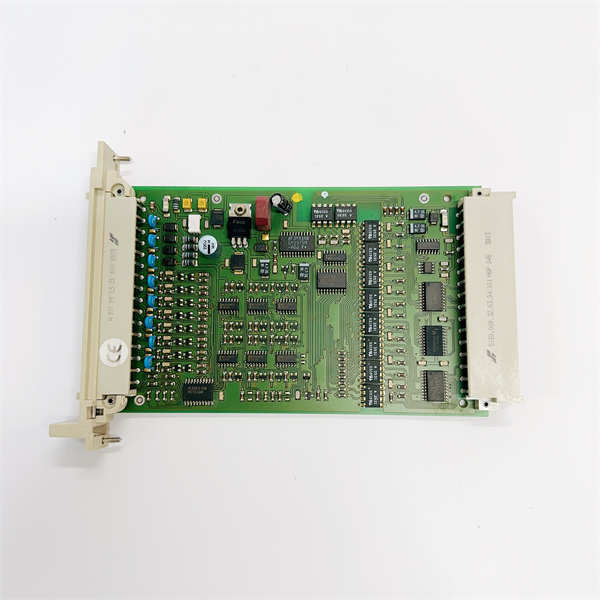

F3237 984323702 HIMA
technical specifications

Product model:F3237 984323702

Manufacturer:HIMA

Product type:8-channel safety related input module

Number of input channels:8

Input type:single channel,current isolation,safety related

Compatible sensors:proximity switches compliant with DIN 19234(NAMUR),resistance wired sensors

Input voltage range:24 VDC(US 8.2 V power supply)

0 signal current:0.35 mA≤IE≤1.2 mA

Signal current:2.1 mA≤IE≤6.0 mA

Wire breakage detection:≤0.28 mA

Short circuit detection:≥6.5 mA

Line impedance:≤50 Ohm(compliant with DIN 19234)

Line length:≤1000 m(∅=0.5 mm²)

Response time:approximately 10 ms

Diagnostic coverage rate:100%

Safety Integrity Level(SIL):SIL 3

Explosion proof rating:II 3G Ex nA IIC T4(ATEX certified)

Power consumption:5 VDC:90 mA;24 VDC:170 mA(operating data)

Working temperature range:0°C to+50°C(depending on the system and installation)

Storage temperature range:-40°C to+85°C

Main features and advantages

HIMA F3237 F3237 984323702,as a professional safety related input module,has multiple key features and significant advantages,making it perform well in industrial applications with extremely high safety requirements:

High Safety Integrity Level Certification:The F3237 module has undergone strict certification and complies with SIL 3(Safety Integrity Level 3)and PL e(Performance Level e)standards.This means that it is suitable for applications with the highest level of security,providing excellent risk reduction capabilities to ensure the safety of personnel,equipment,and the environment.

Comprehensive online self diagnostic function:The module automatically executes a comprehensive self check routine during operation,including real-time monitoring of the input circuit’s on-off capability,crosstalk,filter function,as well as short circuits and disconnections in sensor circuits.These deep diagnostic functions ensure the health status of HIMA F3237 itself and the reliability of input signals,significantly reducing the risk of hidden faults.

Excellent anti-interference ability and reliability:984323702 adopts a current isolation design,effectively isolating electrical interference between input channels and enhancing the module’s anti noise ability.At the same time,it can detect broken and short circuits in sensor circuits,promptly detect on-site wiring faults,ensure accurate and error free transmission of safety signals,and thus improve the overall reliability and availability of the system.

Wide sensor compatibility:This module supports connecting multiple safety related sensors,including proximity switches that comply with DIN 19234(NAMUR)standards and resistance wired sensors.This flexibility enables F3237 to be integrated into different security application scenarios,providing a unified and secure input interface for various industrial sensors.

Intuitive status indication and easy maintenance:The module is equipped with LED status indicator lights,which can clearly display the working status and diagnostic information of each channel,facilitating quick diagnosis and troubleshooting by on-site personnel.Its modular design and convenient installation method also make the installation,debugging,and daily maintenance of HIMA F3237 simpler and more efficient,reducing downtime.

F3237 984323702 HIMA
application area

The HIMA F3237(part number 984323702)safety related input module is widely used in industrial fields with the highest requirements for functional safety due to its high safety integrity level and excellent diagnostic capabilities.

In the oil,gas,and petrochemical industries,F3237 is a critical component in emergency shutdown systems(ESD),fire and gas systems(F&G),and boiler management systems(BMS).It receives signals from safety instruments such as pressure,temperature,liquid level,and flame detectors,and triggers safety actions when hazardous conditions are detected,ensuring the safety of the production process and asset integrity,and preventing explosions,fires,or toxic gas leaks.

In the field of power production and transmission,including nuclear power plants,thermal power plants,and hydropower stations,HIMA F3237 is used to monitor key safety functions such as turbine overspeed protection,generator set safety interlocking,and combustion system safety protection.It receives signals from various limit switches,pressure transmitters,and flame detectors to ensure that the safety system can reliably cut off or adjust equipment operation in abnormal situations,preventing major accidents from occurring.

In the fields of mechanical manufacturing and factory automation,especially in robot workstations,large presses,conveyor systems,and machines in hazardous areas,984323702 is used to achieve signal acquisition for safety equipment such as safety door monitoring,emergency stop button input,light curtains,and safety mats.It ensures the safety of operators and immediately stops machine operation when danger is detected,in compliance with strict mechanical safety standards.

In addition,F3237 is also suitable for rail transit(such as signal control and switch protection),chemical and pharmaceutical industries,and any other industrial automation systems that require compliance with international functional safety standards such as IEC 61508/IEC 61511,and have strict requirements for the reliability and diagnostic capabilities of input signals.

Related products

The HIMA F3237 984323702 safety related input module is an important component of safety systems such as HIMA HIMatrix and HIMax.The products associated with it mainly include other safety I/O modules,controller modules,and system infrastructure components.

HIMA F3236:It is also a digital input module,but may have different numbers of channels or specific functions,often working together with F3237 in the same security system.

HIMA F3330/F3331/F3332/F3333/F3334/F3335/F3349:These are HIMA’s safety digital output modules,used to receive control instructions from safety controllers,drive safety actuators(such as safety valves,safety relays,etc.),and form a complete safety circuit with F3237.

HIMA F62xx series analog input modules,such as F6208(8-channel analog input module)or F6220(8-channel thermocouple input module),are used to collect safety related analog signals and together with F3237,form a comprehensive safety monitoring solution.

HIMA F86xx series central module/CPU,such as F8650X or F8627X,are the core processors of HIMA safety systems,responsible for executing safety logic and diagnostic functions.All I/O modules(including F3237)are connected to the central module for data exchange and control.

HIMA power module:provides stable and reliable power supply for the entire HIMA safety system,such as F7300A.

HIMA communication module,such as F8621A or F8628X,is used to achieve safe communication between safety systems and other control systems(such as DCS,PLC)or upper computers.

HIMA HIMatrix series safety system:F3237 is a specific module under the HIMatrix platform,and HIMatrix is a complete distributed safety system that includes multiple controllers,I/O,and communication modules.

HIMA HIMax series safety system:Another high-performance safety system from HIMA that may be compatible or have input modules with similar functions.

HIMA ELOP II Factory software:an engineering software used for programming,configuring,and diagnosing HIMA safety systems,including F3237.

Installation and maintenance

Preparation before installation:Before installing the HIMA F3237(part number 984323702)safety related input module,please be sure to carefully read the HIMatrix system manual and all applicable functional safety standards(such as IEC 61508/61511)and electrical safety specifications provided by HIMA.Firstly,ensure that the power supply of all relevant equipment has been completely disconnected and strictly follow the lockout/tagout(LOTO)procedure to prevent any accidental power on.Due to the presence of static sensitive components inside the module,operators must wear anti-static wristbands and take other anti-static measures to prevent damage to the module caused by static discharge.Check if there is any transportation damage to the F3237 body and verify that the module model is consistent with the system requirements.The module is usually installed in the designated slot of the HIMA rack.Please ensure that the slot is clean and dust-free,and carefully insert the module to ensure it is securely in place.Connect the cable of the safety sensor to the terminal block of 984323702 according to the detailed wiring diagram in the HIMA manual,paying special attention to signal polarity,shielding grounding,and line impedance requirements,ensuring that all safety wiring complies with specifications to minimize electromagnetic interference and ensure signal integrity.

Maintenance suggestion:Regular preventive maintenance is crucial to ensure the long-term safe and reliable operation and system integrity of the HIMA F3237 module.The module and its wiring should be visually inspected regularly for any physical damage,loose connections,insulation damage,or signs of corrosion.Maintain cleanliness around modules and racks,remove dust and debris,ensure good ventilation to prevent performance degradation due to overheating.Monitor the status of the LED indicators on the front panel of HIMA F3237,which provide important visual feedback on module power,channel status,diagnostic information,and potential faults.Any abnormal indication should be immediately brought to attention and troubleshooting should be carried out according to the user manual provided by HIMA.Due to its powerful online self diagnostic function,F3237 usually does not require additional regular functional testing.However,it is recommended to regularly review the system’s diagnostic logs and alarm records through HIMA’s engineering software(such as ELOP II Factory)to assess the overall health status of the module and related safety circuits.At the same time,strictly follow the firmware update strategy recommended by the manufacturer to ensure that the module software is always in the latest state,in order to obtain performance improvements and security patches.

F3237 984323702 HIMA
Product Guarantee

We are well aware of the critical role of HIMA F3237 984323702 in your industrial safety system,and therefore we are committed to providing our customers with excellent product assurance.
