Description

HIMA F3330 984333002 is a high-performance 8-channel safety related digital output module designed specifically for safety systems such as HIMA HIMatrix and HIMax.This module plays a core role in industrial automation,process safety,and mechanical safety applications,responsible for converting the logical results generated by safety controllers into reliable control signals for safety actuators such as safety relays,safety valves,contactors,or indicator lights.The design of HIMA F3330 strictly follows international functional safety standards such as IEC 61508 and IEC 61511,and has obtained SIL 3(Safety Integrity Level 3)and PL e(Performance Level e)certifications,ensuring unparalleled reliability and safety in the most stringent safety critical applications.

This module has excellent online diagnostic capabilities and can automatically perform comprehensive self check routines during operation,including output signal readback,on/off capability testing,short circuit protection,and line resistance monitoring,ensuring the health status of the output channel itself and the accuracy of control signals.Each channel of 984333002 has short-circuit protection function,which can drive up to 500 mA resistive or inductive loads and support bulb connection.Through the onboard LED status indicator lights,operators can intuitively understand the working status and diagnostic information of the module.HIMA F3330,with its robust industrial grade design and high diagnostic coverage,is an ideal choice for building high integrity safety instrumented systems(SIS),significantly improving the operational safety and availability of industrial facilities.

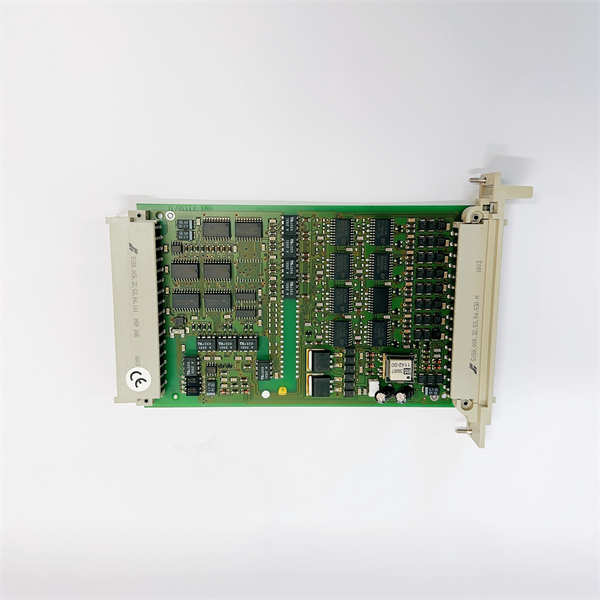

F3330 984333002 HIMA

technical specifications

Product model:F3330 984333002

Manufacturer:HIMA

Product type:8-channel safety related digital output module

Number of output channels:8

Output type:digital quantity,safety related,with short circuit protection

Output voltage:24 VDC

Single channel output current:maximum 500 mA(resistive or inductive load)

Light bulb connection:maximum 4 W

Integrated security shutdown:Yes

Output leakage current:maximum 350µA

Output reset voltage:maximum 1.5 V

Allowable line resistance(input+output):maximum 11 Ohm

Undervoltage trip point:≤16 VDC

Short circuit current operating point:0.75 A to 1.5 A

Test signal duration:maximum 200µs

Safety Integrity Level(SIL):SIL 3(compliant with IEC 61508,IEC 61511)

Performance Level(PL):PL e(compliant with EN ISO 13849-1)

Power consumption(typical):5 VDC:110 mA;24 VDC:180 mA(additional load)

Physical dimensions:4 TE width(approximately 85 mm(width)x 35 mm(height)x 125 mm(depth))

Weight:Approximately 0.3 kg

Working temperature range:-25°C to+70°C(depending on the system and installation)

Storage temperature range:-40°C to+85°C

Main features and advantages

HIMA F3330 984333002,as a high-performance secure digital output module,has multiple key features and significant advantages,making it outstanding in industrial applications with extremely high safety requirements:

Highest Safety Integrity Level Certification:F3330 has undergone strict certification and complies with international functional safety standards such as SIL 3 and PL e.This means that the module can be applied to the highest risk safety critical processes,providing the highest level of protection for personnel,equipment,and the environment,effectively reducing the likelihood of potential accidents.

Comprehensive online self diagnostic function:The module automatically performs comprehensive self checks and diagnostic routines during operation,including output signal readback,on/off capability testing,short circuit protection,and line resistance monitoring.These deep diagnoses ensure the health status of HIMA F3330 itself and the reliability of its output signals,enabling timely detection of potential faults and taking corresponding measures,significantly improving the reliability and diagnostic coverage of the system.

Powerful load driving capability and short circuit protection:Each output channel has a short circuit protection function,which can stably drive resistive or inductive loads up to 500 mA,and support bulb connections up to 4W.This capability enables 984333002 to directly control multiple types of safety actuators without the need for additional intermediate relays or interfaces,simplifying system design and improving efficiency.

High reliability and anti-interference ability:This module is designed to be sturdy,with excellent electromagnetic compatibility,and can operate stably in harsh industrial environments.Its internal voltage monitoring and short-circuit protection functions further enhance the system’s anti-interference ability and reliability,ensuring the accurate and error free transmission and execution of safety instructions.

Intuitive status indication and convenient maintenance:The LED indicator lights on the front panel of F3330 can clearly display the operating status,faults,and diagnostic information of each channel,making it easy for on-site personnel to quickly diagnose and troubleshoot.The modular design and convenient installation method also make the installation,debugging,and daily maintenance of HIMA F3330 simpler and more efficient,helping to shorten downtime.

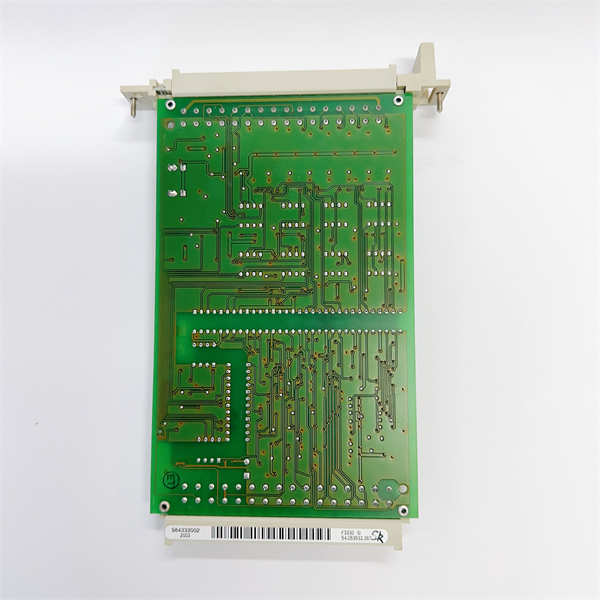

F3330 984333002 HIMA

application area

The HIMA F3330 984333002 safety related digital output module is widely used in various industrial fields with the highest requirements for functional safety due to its high safety integrity level,powerful diagnostic functions,and load driving capabilities.

In the oil,gas,and petrochemical industries,F3330 is a core executive layer component in emergency shutdown systems(ESD),fire and gas systems(F&G),as well as gas turbine and compressor control systems.It receives trip instructions from the safety controller and safely cuts off fuel supply,closes valves,or activates the fire protection system to prevent explosions,fires,or toxic gas leaks,ensuring the safety of production facilities and personnel.

In the field of power production and transmission,including nuclear power plants,thermal power plants,and wind farms,HIMA F3330 is used to drive turbine trip systems,generator safety interlock devices,and combustion system safety protection devices.It converts the commands of the safety controller into actions on circuit breakers,safety valves,or fuel cut-off valves to prevent overspeed,overvoltage,or other dangerous conditions and ensure the stable operation of the power grid.

In the fields of mechanical manufacturing and factory automation,especially in robot workstations,large presses,conveyor systems,and automated production lines that require safety door interlocking and emergency parking,984333002 is used to control actuators for safety door locks,emergency stop relays,safety gratings,and safety mats.It ensures that the machine can stop safely immediately when danger is detected,protecting operators from injury.

In addition,F3330 is also suitable for rail transit(such as safety relay drives in signal systems and switch controls),chemical and pharmaceutical industries,as well as any industrial automation and process control systems that require compliance with international functional safety standards such as IEC 61508/IEC 61511,and have strict requirements for the reliability and diagnostic capabilities of output signals.

Related products

The safety related digital output module of HIMA F3330(part number 984333002)is a key component in safety systems such as HIMA HIMatrix and HIMax.The products associated with it mainly include other safety I/O modules,safety controller modules,and system infrastructure components.

HIMA F3331/F3332/F3333/F3334/F3335/F3349:These are other digital output modules of HIMA,which may have different channel numbers,output current capabilities,or specific functions,and often work together with F3330 in the same safety system.

HIMA F32xx series digital input modules,such as F3237(8-channel safety related input module)or F3236(16 channel safety related input module),are responsible for collecting signals from on-site safety sensors and forming a complete safety circuit with F3330.

HIMA F62xx series analog input/output modules,such as F6208(8-channel analog input module)or F6217(analog input module),are used to collect safety related analog signals and together with F3330,form a comprehensive safety monitoring solution.

HIMA F86xx series central module/CPU,such as F8650X or F8627X,are the core processors of HIMA safety systems,responsible for executing safety logic and diagnostic functions.All I/O modules(including F3330)are connected to the central module for data exchange and control.

HIMA power module:provides stable and reliable power for the entire HIMA safety system,such as F7300A or F7126.

HIMA communication module,such as F8621A or F8628X,is used to achieve safe communication between safety systems and other control systems(such as DCS,PLC)or upper computers,while maintaining safety isolation.

HIMA HIMatrix series safety system:F3330 is a specific module under the HIMatrix platform,and HIMatrix is a complete distributed safety system that includes multiple controllers,I/O,and communication modules.

HIMA HIMax series safety system:Another high-performance safety system from HIMA that may be compatible or have output modules with similar functions.

HIMA ELOP II Factory software:an engineering software used for programming,configuring,and diagnosing HIMA safety systems,including F3330.

Installation and maintenance

Preparation before installation:Before installing the safety related digital output module of HIMA F3330(part number 984333002),please be sure to carefully read the HIMatrix system manual provided by HIMA,all applicable functional safety standards(such as IEC 61508/61511),and electrical safety specifications.Firstly,ensure that the power supply of all relevant equipment has been completely disconnected and strictly follow the lockout/tagout(LOTO)procedure to prevent any accidental power on.Due to the presence of static sensitive components inside the module,operators must wear anti-static wristbands and take other anti-static measures to prevent damage to the module caused by static discharge.Check if there is any transportation damage to the F3330 body and verify that the module model is consistent with the system requirements.The module is usually installed in the designated slot of the HIMA rack.Please ensure that the slot is clean and dust-free,and carefully insert the module to ensure it is securely in place.Connect the cable of the safety actuator to the terminal block of 984333002 according to the detailed wiring diagram in the HIMA manual,paying special attention to the output current,load type(resistance/inductance),shielding grounding,and line impedance requirements,ensuring that all safety wiring complies with specifications to minimize electromagnetic interference and ensure signal integrity.

Maintenance suggestion:Regular preventive maintenance is crucial to ensure the long-term safe and reliable operation and system integrity of the HIMA F3330 module.The module and its wiring should be visually inspected regularly for any physical damage,loose connections,insulation damage,or signs of corrosion.Maintain cleanliness around modules and racks,remove dust and debris,ensure good ventilation to prevent performance degradation due to overheating.Monitor the status of the LED indicator lights on the front panel of HIMA F3330,which provide important visual feedback on module power,channel status,diagnostic information,and potential faults.Any abnormal indication should be immediately brought to attention and troubleshooting should be carried out according to the user manual provided by HIMA.Due to its powerful online self diagnostic function,F3330 usually does not require additional regular functional testing.However,it is recommended to regularly review the system’s diagnostic logs and alarm records through HIMA’s engineering software(such as ELOP II Factory)to assess the overall health status of the module and related safety circuits.At the same time,strictly follow the firmware update strategy recommended by the manufacturer to ensure that the module software is always in the latest state,in order to obtain performance improvements and security patches.

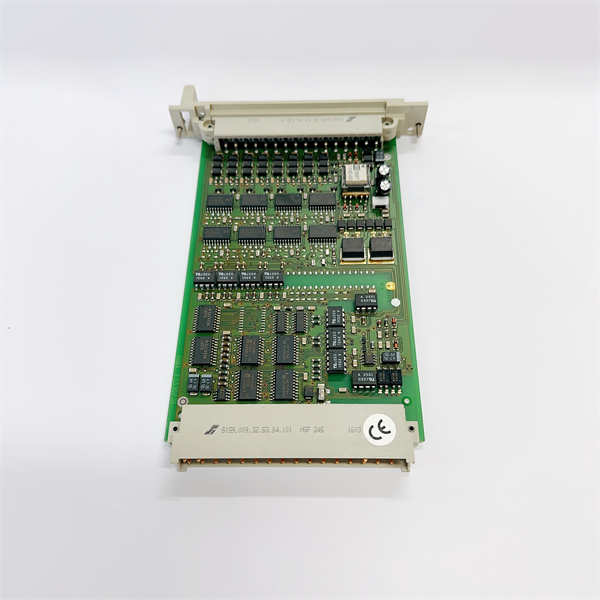

F3330 984333002 HIMA

Product Guarantee

We are well aware of the critical role of HIMA F3330 984333002 in your industrial safety system,and therefore we are committed to providing our customers with excellent product assurance.
