Description

HIMA F6217 984621702 is a high-performance 8-channel safety related analog input module designed specifically for HIMA HIMatrix and HIMax safety systems.This module plays a crucial role in industrial automation,process control,and safety instrumented systems(SIS),capable of accurately collecting signals from various analog sensors such as temperature,pressure,flow,and level transmitters.HIMA F6217 strictly adheres to international functional safety standards such as IEC 61508 and IEC 61511,and has obtained SIL 3(Safety Integrity Level 3)certification,ensuring excellent reliability and data integrity in the most stringent safety critical applications.

This module supports multiple input signal types,including 0/4…20 mA current input and 0…5/10 V voltage input,and has a 12 bit resolution to ensure high-precision measurement.The core value of F6217 lies in its powerful online self diagnostic capability and secure isolation features.It can monitor the effectiveness of input signals in real time,detect short circuits and disconnections in sensor circuits,and provide overvoltage,undervoltage,and short-circuit protection functions to minimize potential fault risks.Each channel is safely isolated,effectively preventing the propagation of electrical interference and further enhancing the reliability of the system.HIMA 984621702,with its robust industrial grade design and high diagnostic coverage,is an ideal choice for building high integrity SIS,helping to significantly improve the operational safety and availability of factories.

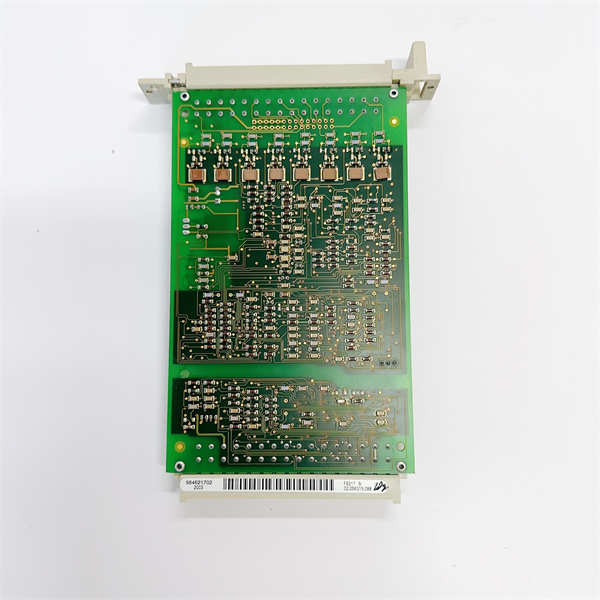

F6217 984621702 HIMA

technical specifications

Product model:F6217 984621702

Manufacturer:HIMA

Product type:8-channel safety related analog input module

Number of input channels:8

Input type:analog,safety related,with safety isolation

Compatible signals:0/4…20 mA(current input),0…5/10 V(voltage input)

Resolution:12 bits

Safe time:<450>

Input voltage range:0…5.5 V

Input current range:0…22 mA(via shunt resistor)

Input resistance:100 kΩ

Safety Integrity Level(SIL):SIL 3(compliant with IEC 61508)

Diagnostic functions:overvoltage protection,undervoltage protection,short circuit protection,line disconnection detection

Power consumption(typical):5 VDC:80 mA;24 VDC:50 mA

Physical dimensions:4 TE width(approximately 85 mm(width)x 35 mm(height)x 125 mm(depth))

Weight:Approximately 0.168 kg

Working temperature range:-40°C to+70°C

Storage temperature range:-40°C to+85°C

Humidity:5%to 95%(no condensation)

Main features and advantages

As a professional safety related analog input module,HIMA F6217 F6217 984621702 has multiple key features and significant advantages,making it excellent in industrial applications that require high precision and safety of analog signals

Highest Safety Integrity Level Certification:The F6217 module has undergone strict certification and meets SIL 3 safety integrity level.This means that it is suitable for applications with the highest level of safety,providing unparalleled reliability for monitoring critical process parameters,ensuring that the system can accurately respond and take protective measures under hazardous conditions,thereby minimizing the risk of accidents to the greatest extent possible.

High precision and multi type analog input:HIMA F6217 provides 8 channels,supports 0/4…20 mA current input and 0…5/10 V voltage input,and has 12 bit high resolution.This flexibility enables it to accurately collect analog signals from various temperature,pressure,flow,and liquid level sensors,meeting the measurement needs of different industrial applications.

Comprehensive online self diagnosis and protection function:The module automatically executes comprehensive self check and diagnostic routines during operation,including monitoring the validity of input signals,detecting short circuits and disconnections in sensor circuits.In addition,it also integrates overvoltage,undervoltage,and short-circuit protection functions,effectively preventing external faults from causing damage to modules or systems,ensuring the health status of 984621702 itself and the reliability of input signals.

Excellent anti-interference ability and safety isolation:Each input channel undergoes safety isolation,effectively preventing electrical interference and grounding circuit problems between different channels and with other parts of the system.This isolation design significantly enhances the anti-interference ability and reliability of the module in complex electromagnetic environments,ensuring the accuracy and safety of measurement data.

Fast response time and intuitive status indication:F6217 has a fast and safe response time of less than 450 ms,ensuring that the system can identify and handle abnormal situations in a timely manner.At the same time,the LED status indicator lights equipped with the module can clearly display the working status,faults,and diagnostic information of each channel,facilitating quick diagnosis and troubleshooting by on-site personnel,simplifying daily operation and maintenance.

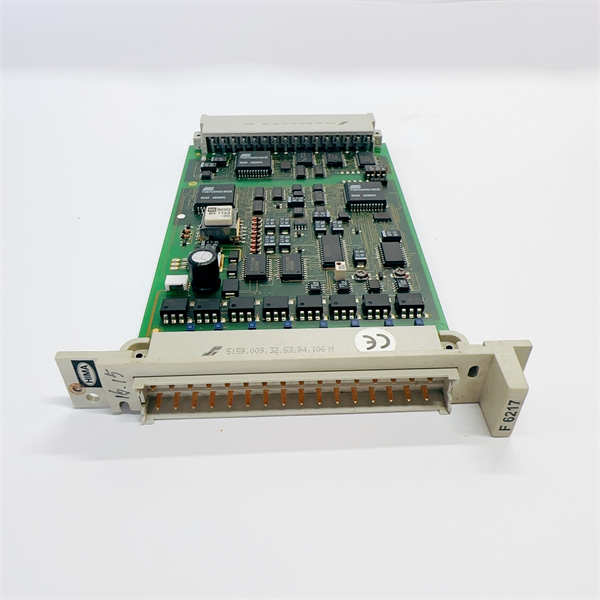

F6217 984621702 HIMA

application area

The HIMA F6217 984621702 safety related analog input module is widely used in various industrial fields with strict requirements for accurate safety monitoring of analog process variables,thanks to its high safety integrity level,high accuracy,and powerful diagnostic functions.

In the oil,gas,and petrochemical industries,F6217 is a core input component in emergency shutdown systems(ESD),fire and gas systems(F&G),and critical process control systems.It receives safety related analog signals from field instruments such as pressure,temperature,flow,and level transmitters,such as reactor temperature,pipeline pressure,or tank level.When abnormal situations exceeding the safety threshold are detected,HIMA F6217 can accurately transmit these signals to the safety controller,triggering emergency shutdown,cutting off material supply,or activating the fire extinguishing system,effectively preventing explosions,fires,or toxic substance leaks.

In the power production industry,including thermal power plants,nuclear power plants,and hydropower stations,this module is used to monitor key analog variables such as boiler water level,steam pressure,cooling water temperature,and gas turbine operating parameters.984621702 ensures precise and safe monitoring of these parameters.In case of any abnormalities,safety protection actions can be triggered in a timely manner,such as emergency shutdown of the boiler or safety interlock of the generator set,to ensure the safe and stable operation of the power station.

In the chemical and pharmaceutical industries,F6217 is used to monitor key process parameters such as temperature,pressure,pH value,and flow rate in various reactors,storage tanks,and pipelines to ensure the safety of the production process and product quality.It plays a role in the safety interlock system,preventing dangerous reactions from getting out of control or toxic substances from overflowing.

In addition,F6217 is also suitable for water/wastewater treatment(monitoring water quality parameters,liquid level,and flow rate),metallurgy(monitoring furnace temperature,gas flow rate),and any other industrial automation systems that require compliance with international functional safety standards such as IEC 61508/IEC 61511,and have strict requirements for the accuracy,reliability,and diagnostic capabilities of analog input signals.

Related products

The HIMA F6217 984621702 safety related analog input module is a key component of safety systems such as HIMA HIMatrix and HIMax.The products associated with it mainly include other safety I/O modules,safety controller modules,and system infrastructure components.

HIMA F6208:Also an 8-channel analog input module,it may have different input ranges or functions and often works in conjunction with F6217 in the same safety system.

HIMA F6220:The 8-channel thermocouple input module of HIMA is used to collect temperature signals and complement F6217 in temperature safety monitoring.

HIMA F32xx series digital input modules,such as F3237(8-channel safety related digital input module)or F3236(16 channel safety related digital input module),are responsible for collecting on-site switch signals and together with F6217,form a complete safety signal acquisition scheme.

HIMA F33xx series digital output modules,such as F3330(8-channel safety related digital output module)or F3334(16 channel safety related digital output module),are used to drive safety actuators and work together with F6217 to form a safety circuit.

HIMA F67xx series analog output module:such as F6706(2-channel analog output module),used to output safety related analog signals,such as safety speed control.

HIMA F86xx series central module/CPU,such as F8650X or F8627X,are the core processors of HIMA safety systems,responsible for executing safety logic and diagnostic functions.All I/O modules(including F6217)are connected to the central module for data exchange and control.

HIMA power module:provides stable and reliable power for the entire HIMA safety system,such as F7300A or F7126.

HIMA communication module,such as F8621A or F8628X,is used to achieve safe communication between safety systems and other control systems(such as DCS,PLC)or upper computers.

HIMA HIMatrix series safety system:F6217 is a specific module under the HIMatrix platform,and HIMatrix is a complete distributed safety system that includes multiple controllers,I/O,and communication modules.

HIMA SILworX software:an engineering software used for programming,configuring,diagnosing,and maintaining HIMA safety systems,including F6217.

Installation and maintenance

Preparation before installation:Before installing the HIMA F6217(part number 984621702)safety related analog input module,please read the HIMatrix system manual and all applicable functional safety standards(such as IEC 61508/61511)and electrical safety specifications provided by HIMA in detail.Firstly,ensure that the power supply of all relevant equipment has been completely disconnected and strictly follow the lockout/tagout(LOTO)procedure to prevent any accidental power on.Due to the presence of static sensitive components inside the module,operators must wear anti-static wristbands and take other anti-static measures to prevent damage to the module caused by static discharge.Check if there is any transportation damage to the F6217 body and verify that the module model is consistent with the system requirements.The module is usually installed in the designated slot of the HIMA rack.Please ensure that the slot is clean and dust-free,and carefully insert the module to ensure it is securely in place.Connect the cables of analog sensors(such as 4-20mA transmitters or voltage signal lines)to the terminal block of 984621702 according to the detailed wiring diagram in the HIMA manual,paying special attention to the signal type(current/voltage),signal range,shielding grounding,and line impedance requirements,ensuring that all safety wiring complies with specifications to minimize electromagnetic interference and ensure signal integrity.

Maintenance suggestion:Regular preventive maintenance is crucial to ensure the long-term safe and reliable operation and system integrity of the HIMA F6217 module.The module and its wiring should be visually inspected regularly for any physical damage,loose connections,insulation damage,or signs of corrosion.Maintain cleanliness around modules and racks,remove dust and debris,ensure good ventilation to prevent performance degradation due to overheating.Monitor the status of the LED indicators on the front panel of HIMA F6217,which provide important visual feedback on module power,channel status,diagnostic information,and potential faults.Any abnormal indication should be immediately brought to attention and troubleshooting should be carried out according to the user manual provided by HIMA.Due to its powerful online self diagnostic function,F6217 usually does not require additional regular functional testing.However,it is recommended to regularly review the system’s diagnostic logs and alarm records through HIMA’s engineering software(such as SILworX)to assess the overall health status of the module and related safety circuits.At the same time,strictly follow the firmware update strategy recommended by the manufacturer to ensure that the module software is always in the latest state,in order to obtain performance improvements and security patches.

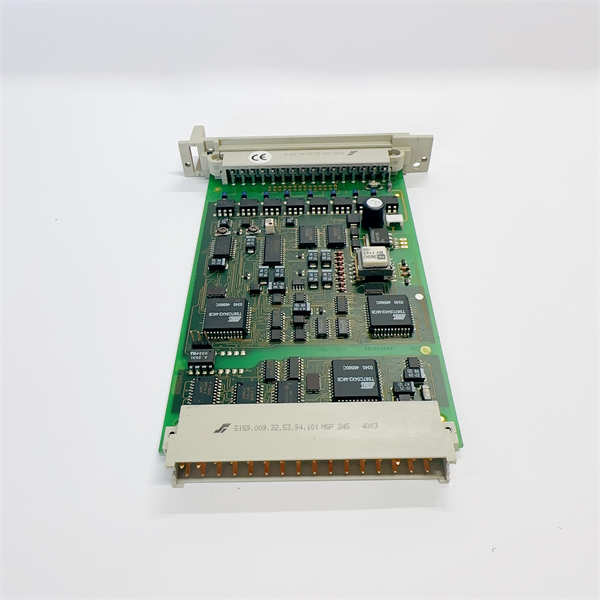

F6217 984621702 HIMA

Product Guarantee

We are well aware of the critical role of HIMA F6217 984621702 in your industrial safety system,and therefore we are committed to providing our customers with excellent product assurance.
