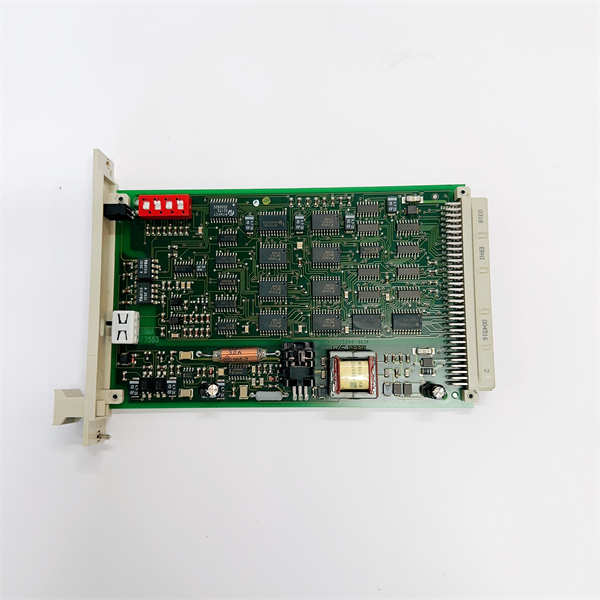

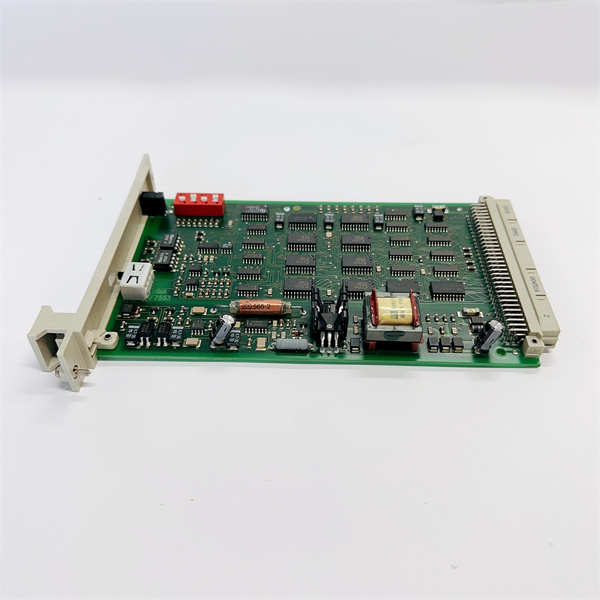

HIMA F7553 984755302 is an IO bus coupling module designed specifically for HIMA HIMatrix and PES H51q systems.In industrial automation and safety instrumented systems(SIS),this coupling module plays a crucial role in achieving data exchange and signal transmission between I/O sub racks and central modules(CPU),ensuring seamless communication and coordination between various parts of the system.HIMA F7553 not only transmits process data,but also integrates monitoring functions for the 5V power supply of the I/O sub rack,and transmits corresponding status signals to the central module,thereby enhancing the diagnostic capability and reliability of the entire system.

This module is equipped with safety related watchdog signals and undergoes automatic testing during operation to ensure the correctness and safety of its own functions.The design of 984755302 aims to meet the requirements of high availability and high diagnostic coverage to support safe applications that comply with standards such as SIL 3(Safety Integrity Level 3).Through the LED indicator lights on its front panel,the status of the watchdog signal and the access status of the I/O module can be intuitively displayed,greatly simplifying on-site fault diagnosis and maintenance work.The HIMA F7553 module is a key component in building a distributed security system architecture.It ensures data consistency and timely execution of control instructions between the security controller and on-site I/O devices through stable and reliable communication links,thereby comprehensively improving the operational safety and efficiency of industrial facilities.

F7553 984755302 HIMA

technical specifications

Product model:F7553 984755302

Manufacturer:HIMA

Product type:IO bus coupling module

Function:Monitor the 5V power supply of the I/O sub rack,transmit status signals to the central module,and provide IO bus connections

Compatible systems:HIMA HIMatrix,PES H51q

Safety Integrity Level(SIL):typically supports SIL 3 systems(module self diagnosis)

Supply voltage:5 VDC or 24 VDC

Power consumption:5 VDC:600 mA(typical);24 VDC:750 mA(typical)

Self diagnostic function:automatic testing,safety related watchdog signal monitoring

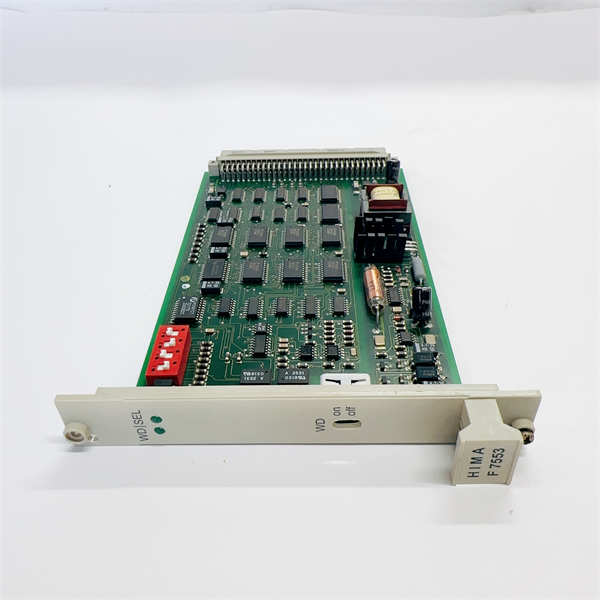

Indicator lights:WD(watchdog signal),SEL(I/O module access)LED indicator lights

Physical dimensions:4 TE width(approximately 85 mm(width)x 35 mm(height)x 125 mm(depth))

Weight:Approximately 0.14 kg to 0.2 kg

Working temperature range:0°C to+55°C

Storage temperature range:-40°C to+70°C

Humidity:5%to 95%(no condensation)

Installation method:Insert into the HIMA rack slot

Main features and advantages

As a key coupling module in the HIMA safety system,HIMA F7553 984755302 has multiple core features and significant advantages,making it indispensable in ensuring industrial process safety

Core communication and integration capabilities:The F7553 module serves as a bridge for data exchange between I/O sub racks and central modules,ensuring that the safety controller can reliably receive data from on-site I/O modules and send control instructions to them.This seamless integration capability is crucial for building distributed and responsive Safety Instrumented Systems(SIS).

Comprehensive system diagnosis and monitoring:HIMA F7553 is not just a simple communication interface,it also integrates real-time monitoring of the 5V power supply to the I/O sub rack.Once a power abnormality is detected,it can transmit the corresponding status signal to the central module,enabling the system to promptly detect potential hardware faults and enhance the overall system’s diagnostic coverage and reliability.

High security and reliability:The module is equipped with safety related watchdog signals and automatic testing mechanisms to ensure its normal operation and the integrity of the communication link.When 984755302 detects abnormal situations,it can trigger corresponding safety responses,helping the system meet the requirements of high safety integrity levels such as SIL 3,and ensuring the safety of personnel and equipment.

Flexible configuration and maintenance:F7553 provides configurable encoding switches for setting cabinet numbers or I/O bus numbers,facilitating system integration and expansion.The LED indicator lights on the front panel clearly display the access status of the watchdog and I/O module,greatly simplifying on-site fault diagnosis.In addition,under specific system configurations,this module supports replacement without causing system shutdown(through soft shutdown of watchdog signals),improving system availability.

Robust industrial grade design:The module adopts a sturdy and durable industrial grade design,which can operate stably and reliably in harsh industrial environments.Its compact size and standardized installation method also enable the HIMA F7553 to be easily integrated into the HIMA rack system and adapt to different installation requirements.

F7553 984755302 HIMA

application area

The HIMA F7553 984755302 IO bus coupling module plays a crucial supporting role in various industrial fields that have strict requirements for functional safety and high availability,and is an indispensable component of the HIMA safety system.

In the oil,gas,and petrochemical industries,F7553 is widely used in critical safety circuits such as emergency shutdown systems(ESD),fire and gas systems(F&G),and gas turbine and compressor control systems.It ensures reliable and error free data transmission between on-site I/O modules(such as safety input/output modules)and safety controllers,enabling timely triggering of safety parking or suppression measures in hazardous conditions to prevent accidents from occurring.

In the field of power production and transmission,including nuclear power plants,thermal power plants,and hydropower stations,this module is used to build turbine protection,generator safety interlocking,and combustion management systems.HIMA F7553 ensures that data from critical sensors can be safely and accurately transmitted to the central processing unit,so that when overspeed,overpressure,or combustion abnormalities are detected,the system can reliably perform safe shutdown or adjustment operations,ensuring the stable operation of the unit and the power grid.

In the chemical and pharmaceutical industries,984755302 is used to monitor and control critical process variables in reactors,storage tanks,and pipelines,and as part of safety interlock systems.It ensures communication security between the distributed I/O rack and the main controller,avoiding potential hazards in the process such as chemical leaks or uncontrolled reactions.

In addition,F7553 is also suitable for rail transit(such as signal systems and switch control),metallurgical industry,and any industrial application that requires the construction of distributed,high integrity safety instrumented systems(SIS).It provides a powerful communication backbone for the HIMA safety system,ensuring the safe and reliable operation of the entire system in complex and hazardous environments.

Related products

As an IO bus coupling module in the HIMA safety system,HIMA F7553 984755302’s related products mainly include HIMA safety controllers,various safety I/O modules,system power modules,and communication modules.

The HIMA F86xx series central module/CPU,such as F8650X or F8627X,are the core processors of the HIMA safety system,responsible for executing safety logic and diagnostic functions.F7553 exchanges data with these central modules through the IO bus.

HIMA F32xx series digital input modules,such as F3237 or F3236,collect on-site switch signals and transmit the data to the central module through F7553.

HIMA F33xx series digital output modules,such as F3330 or F3334,receive control instructions from the central module and drive field actuators through F7553.

HIMA F62xx series analog input module:such as F6217 or F6208,used to collect on-site analog signals and transmit data to the central module through F7553.

HIMA F67xx series analog output module,such as F6706,is used to output analog control signals and receive instructions from the central module through F7553.

HIMA F71xx series power modules,such as F7300A or F7126,provide stable power to HIMA racks and modules.F7553 also monitors the 5V power supply of the I/O sub rack.

HIMA HIMatrix series system rack:such as B 9302 series rack,F7553 is usually installed in this type of I/O sub rack.

HIMA communication module:such as F8621A or F8628X,used for communication between safety systems and other control systems or upper computers.

HIMA SILworX software:an engineering software used for programming,configuring,and diagnosing HIMA safety systems,including F7553.

Installation and maintenance

Preparation before installation:Before installing the HIMA F7553 984755302 IO bus coupling module,please be sure to carefully read the HIMatrix system manual and all applicable functional safety standards(such as IEC 61508/61511)and electrical safety specifications provided by HIMA.Firstly,ensure that the power supply of all relevant equipment has been completely disconnected and strictly follow the lockout/tagout(LOTO)procedure to prevent any accidental power on.Due to the presence of static sensitive components inside the module,operators must wear anti-static wristbands and take other anti-static measures to prevent damage to the module caused by static discharge.Check if there is any transportation damage to the F7553 body and verify that the module model is consistent with the system requirements.F7553 is usually installed in the designated slot of the HIMA I/O subrack(such as B 9302).Please ensure that the slot is clean and free of dust,and carefully insert the module to secure it in place.According to the system architecture,it may be necessary to connect I/O bus cables(such as BV 7032 data cables)to achieve communication with the central rack.Please strictly follow the coding switches(S1.1…S1.4)in the manual to configure the correct cabinet number or I/O bus number.This is a key step to ensure that the system correctly identifies the module.

Maintenance suggestion:Regular preventive maintenance is crucial to ensure the long-term safe and reliable operation and system integrity of the HIMA F7553 module.Modules and their connections should be visually inspected regularly for any physical damage,loose connections,or signs of corrosion.Maintain cleanliness around modules and racks,remove dust and debris,ensure good ventilation to prevent performance degradation due to overheating.Monitor the status of the LED indicators(WD and SEL)on the front panel of HIMA F7553,which provide important visual feedback on the module’s operational status and diagnostic information.Any abnormal indication should be immediately brought to attention and troubleshooting should be carried out according to the user manual provided by HIMA.F7553 has a powerful online self diagnostic function that automatically monitors 5V power supply and watchdog signals,so there is usually no need for additional regular functional testing.However,it is recommended to regularly review the diagnostic logs and alarm records of the system through HIMA’s engineering software(such as SILworX)to assess the overall health of the IO bus and related communication links.Please note that when replacing the F7553 module,it is necessary to operate the WD(watchdog)switch on the module to perform the replacement without causing an erroneous system shutdown,especially in the-MS and-HS systems,otherwise the entire system may enter an erroneous shutdown state.

F7553 984755302 HIMA

Product Guarantee

We are well aware of the critical role of HIMA F7553 984755302 in your industrial safety system,and therefore we are committed to providing our customers with excellent product assurance.
