Description

ABB SYN5202A is a high-performance synchronous motor control module or synchronous device,belonging to ABB’s SyncHROTAC5 product family.This module is designed specifically for applications that require precise synchronization and grid connection operations in power systems and industrial automation.It plays a crucial role in ensuring smooth,safe,and efficient parallel operation between generators and power grids,or between different power grids.

The core function of SYN5202A is its ability to automatically adjust the speed and voltage of the parallel generator or system to approach the voltage and frequency of the target grid,and ensure that the phase angle difference is zero at the moment of circuit breaker closing.This achieves rapid synchronization and grid connection of generators,effectively avoiding potential problems such as grid impact,system oscillation,and relay protection misoperation,thereby ensuring the safe and stable operation of the power grid and units.

technical specifications

Product model:SYN5202A

Manufacturer:ABB

Product Type:Synchronous Motor Control Module/Synchronous Equipment/Dual Channel Synchronous Unit

Rated frequency:50/60 Hz or 16 2/3 Hz

Power supply:24V DC(common),50-130 VAC,100-125 VAC/VDC,220-250 VDC

Communication interfaces:Profibus,Modbus,Ethernet,RS232

Input/Output:16 digital inputs,8 digital outputs

Speed regulation range:adjustable generator speed and voltage to match the system

Measurement accuracy:Using advanced algorithms and sensor technology to provide accurate and reliable measurement results

Security features:Dual channel independent design(SYN5202 series),prevents asynchronous closing,built-in watchdog

Environmental adaptability:-20°C to+70°C

Certification:CE,UL,RoHS

Features:Equipped with 7 sets of parameter settings to adapt to different parallel conditions;Support multiple parallel functional modules

Main features and advantages

The ABB SYN5202A series synchronous module,with its outstanding features and advantages in various aspects,provides an excellent solution for synchronous grid connection operations in power systems and industrial automation.

High precision and reliable synchronous grid connection:The core advantage of SYN5202A is its ability to achieve high-precision synchronous grid connection between generators and power grids or between different power grids.It adopts advanced algorithms and sensor technology to accurately measure voltage amplitude,frequency,and phase angle difference,and automatically adjust generator parameters to ensure the ideal grid connection condition of zero phase angle difference is met at the moment of circuit breaker closing.Especially SYN5202 and its variants usually have dual channel independent design,each channel using different hardware and software,which greatly improves the safety and reliability of the system,effectively prevents asynchronous closing,and thus avoids impact on the power grid and units.

Flexible configuration and versatility:SYN5202A provides excellent flexibility by storing up to seven sets of parameter settings,allowing it to adapt to different parallel conditions and voltage frequency matching characteristics.This means that the same device can achieve grid connection in multiple operating modes,whether manual or fully automatic,or switch between synchronous and asynchronous modes.It also supports multiple functional modules,including measurement,voltage/frequency matching,parallel condition monitoring,and parallel command generation,and can output commands through configurable signal relays to achieve highly customized control strategies.

Powerful communication and remote management capability:This module is usually equipped with a variety of communication interfaces,such as Profibus,Modbus and Ethernet,to support remote service(through TCP/IP and the Internet)and remote control(through fieldbus).In addition,ABB’s dedicated PC tool SynView greatly simplifies module debugging,setup,and maintenance,allowing users to easily configure parameters,monitor operating status,and perform diagnostics through a graphical interface.This comprehensive communication and management capability not only improves operational convenience,but also reduces operation and maintenance costs,ensuring the long-term efficient operation of the system.

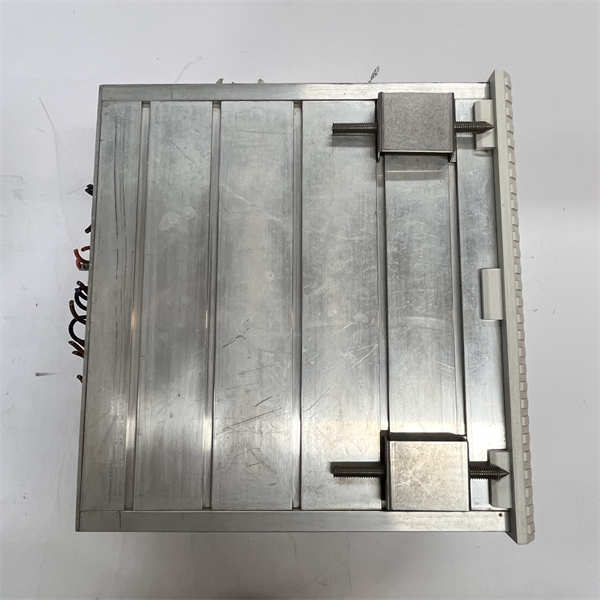

SYN5202A ABB

application area

The ABB SYN5202A synchronization module,as the core component of the ABB SYNC HROTACT5 product family,plays an irreplaceable role in key areas such as power production,transmission,and large-scale industrial equipment grid connection.

In power plants,SYN5202A is the core equipment for grid connected operation of generators.It ensures that the generator set(whether it is a steam turbine,gas turbine,water turbine,or diesel generator)can be safely and smoothly integrated into the existing power grid after starting or resuming operation.The module automatically adjusts the speed and voltage of the generator to accurately synchronize with the power grid,thereby avoiding damage to the generator and power grid caused by grid impact,ensuring stable power output and reliability of the power grid.

SYN5202A provides a critical grid connection solution in industrial production equipment,especially in situations where self owned generators or large loads need to be connected to the grid.For example,in large industrial parks,port facilities,or mining operations,there may be multiple distributed power sources,and SYN5202A ensures that these power sources can work together to smoothly integrate into the main grid or form independent microgrids,thereby improving energy efficiency and power supply reliability.

In addition,SYN5202A can be used for parallel connection between two synchronized power grids in distribution systems and substations,or for grid connection operation of”dead bus”or”dead line”in specific situations,that is,to establish a connection between a line without voltage or load and a live system.This is crucial for the flexibility,fault recovery,and load management of the power grid.

Related products

ABB SYNC HROTACT 5 series products:

SYN5100:Synchrocheck function.

SYN5200:Synchronous verification or automatic parallel unit(without matching device).

SYN5201:Single channel automatic synchronization unit.

SYN5302:A redundant system consisting of two SYN5202 dual channel devices.

ABB Excitation Systems:works closely with synchronous equipment to regulate the generator voltage and ensure it matches the grid voltage.

ABB Automatic Voltage Regulators(AVR)and Governors are used to control the voltage and speed of generators for precise adjustment of synchronous equipment.

ABB Circuit Breakers:Synchronous devices issue parallel commands to control the closing of circuit breakers and achieve grid connection.

ABB SynView PC Tool:a specialized PC software tool used for parameter configuration,monitoring,diagnosis,and maintenance of SYN5202A series equipment.

ABB SCADA/DCS system:SYN5202A is typically used as part of large power or industrial control systems,exchanging data and remotely controlling with upper level SCADA or DCS systems through communication interfaces.

ABB sensors:used to measure the voltage,frequency,and phase angle of generators and power grids.

Installation and maintenance

Preparation before installation:Before installing the ABB SYN5202A synchronization module,please strictly follow all electrical safety regulations and ABB installation guidelines to ensure that the power supply to the relevant power systems(including generators and grids)has been completely cut off,and appropriate”shutdown/hanging out”(LOTO)measures have been taken to prevent accidental power on.Read the product manual and system wiring diagram provided by ABB in detail to understand the physical installation requirements,interface definitions,and connection methods with the generator control cabinet,circuit breaker,voltage/current transformer,and upper control system(such as DCS/SCADA)of the module.Ensure that the installation environment meets the technical specifications of the module,including operating temperature,humidity,and electromagnetic compatibility(EMC)requirements.SYN5202A is usually plug-in or panel mounted,and should be installed in a control cabinet that meets the protection level and has sufficient ventilation and heat dissipation space.Connect all power lines,measurement signal lines,control command lines,and communication lines correctly,and ensure good grounding.

Maintenance suggestion:In order to ensure the long-term stable operation of ABB SYN5202A module and the safety and reliability of the power system,it is recommended to develop and implement a regular preventive maintenance plan.This includes regular visual inspections of the physical condition of the module,checking for dust accumulation on the heat dissipation holes or connectors,loose or corroded connectors,and normal status indicator lights(LEDs).It is crucial to keep the interior of modules and control cabinets clean,as dust and pollutants can affect heat dissipation and may cause electrical failures.Through the SynView PC Tool provided by ABB,regular system diagnosis and status monitoring of SYN5202A are conducted,checking its operating parameters,event recorders,and alarm logs to promptly identify and resolve potential performance issues or fault alarms.When carrying out any maintenance operations,especially those involving module replacement or adjustment of internal settings,it is necessary to strictly follow ABB’s official operating procedures,ensure that they are carried out in a power-off state,and use original spare parts or compatible spare parts certified by ABB.Regularly check and update the firmware or software versions of modules to obtain the latest features and security patches,ensuring optimal performance of SYN5202A and compatibility with other components of the entire power system.

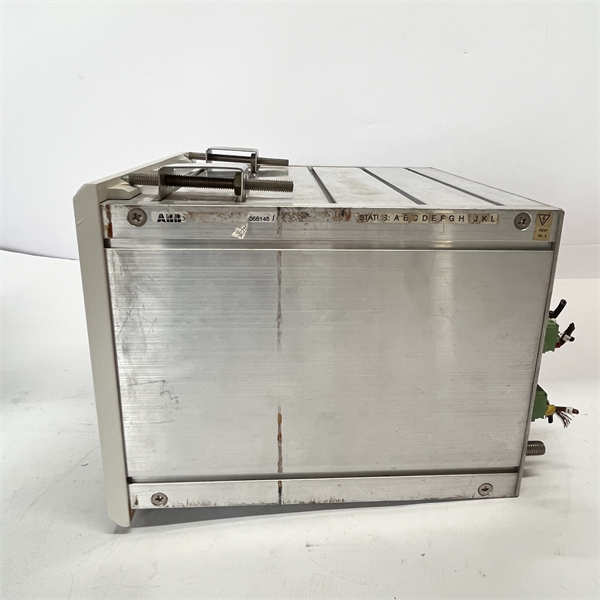

SYN5202A ABB

Product Guarantee

ABB provides a solid guarantee for the excellent quality and reliability of the SYN5202A synchronization module and its SyncHROTAC5 product family.
