Description

The TriconeX 9566-8XX series refers to the Fault Tolerant Circuit Board produced by Triconex,commonly known as its Tricon™Termination Panel for I/O Modules in Series Safety Controller Systems.Triconex is renowned for its leading position in the field of industrial safety systems,providing highly reliable solutions to protect personnel,assets,and the environment.

The 9566-8XX series module is a Triconex Tricon™The key component of the v9-v10 system,which combines signals from field devices such as sensors and actuators with Tricon™Connect the I/O modules in the controller.These termination panels are designed for digital input modules with 24VDC or 48VDC,typically providing 32 input points,and each input point is integrated with a current limiting resistor to ensure reliable operation and prevent overcurrent situations.

This series of products adheres to the core concept of Triconex-Triple Modular Redundancy(TMR)architecture.Although the 9566-8XX itself is not the main processor,it supports and integrates Tricon™The overall fault tolerance capability of the system ensures high integrity and continuous operation even in the event of component failures,providing unparalleled safety and availability in critical industrial processes.

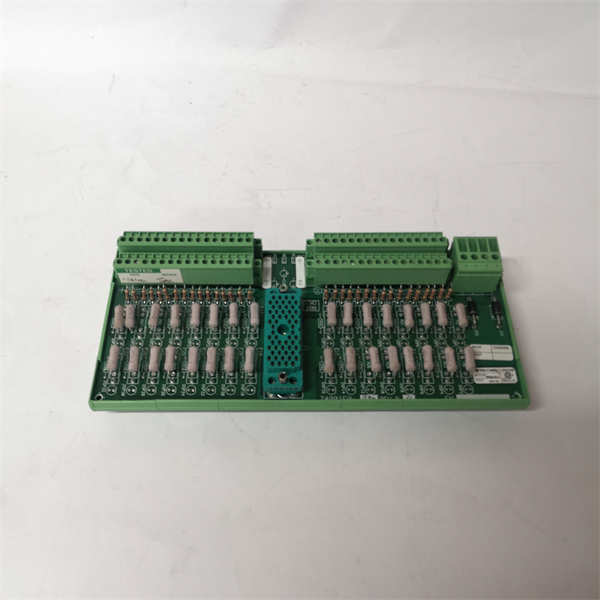

9566-8XX TRICONEX

technical specifications

Product model:9566-8XX

Manufacturer:TRICONEX(a brand under Schneider Electric)

Product type:Fault tolerant circuit board/I/O module termination panel

Series:Tricon™Series safety controller(compatible with Tricon v9-v10 system)

Function:Used for on-site wiring termination of digital input modules

Input points:32 input points(per panel)

Compatible module:24/48 VDC digital input module

Power terminal:shared power terminal(PWR+and PWR-)

Input point protection:Each input point is equipped with a built-in 180 ohm current limiting resistor

Supporting module types:Typically supports 64 point modules(requiring two 9566-8XX panels)

Diagnostic function:Built in test relay(photoelectric isolation),LED indicator light displaying fuse failure or other faults

Environmental protection:sturdy industrial grade design

Working voltage:24VDC/48VDC(depending on compatible digital input module)

Working temperature range:0°C to+60°C

Storage temperature range:-40°C to+85°C

Humidity:0%to 95%(non condensing)

Installation method:Usually installed in standard industrial cabinets,connected to I/O modules through cables

Certification:Compliant with industrial safety standards(such as IEC 61508 SIL 3,depending on the certification of the entire Tricon system)

Main features and advantages

The Triconex 9566-8XX series termination panel is an essential part of the Triconex safety system,with its main features and advantages focused on ensuring the highest safety and reliability of industrial processes

High reliability and fault tolerance:As a component of the Triconex system,the 9566-8XX supports Tricon™Triple Modular Redundancy(TMR)architecture of the system.Although it is a termination panel itself,its design ensures seamless connection with fault-tolerant I/O modules,thereby jointly achieving a system design without a single point of failure.This is crucial for maintaining process control in the event of a malfunction and avoiding unnecessary shutdowns.

Built in safety protection:Each input point is integrated with a current limiting resistor,effectively protecting field devices and input modules from overcurrent conditions,enhancing the safety and lifespan of the system.

Simplified on-site wiring:As a termination panel,it provides centralized wiring points,simplifying the connection between on-site equipment and Tricon™The complex wiring between controllers makes installation and maintenance more convenient.

Clear diagnostic indicators:The panel usually has diagnostic LED indicator lights and built-in test relays,which can quickly identify fuse melting or other faults,facilitating engineers to conduct on-site diagnosis and troubleshooting,and reducing downtime.

Industrial grade robust design:This module is designed to operate stably in harsh industrial environments,with good resistance to impact,vibration,and electromagnetic interference,ensuring long-term reliability in high-risk industries such as petroleum,natural gas,and chemical.

Compatibility and Scalability:The 9566-8XX series is compatible with the digital input modules of the Tricon v9-v10 system and supports multi panel configurations to accommodate higher point system requirements.

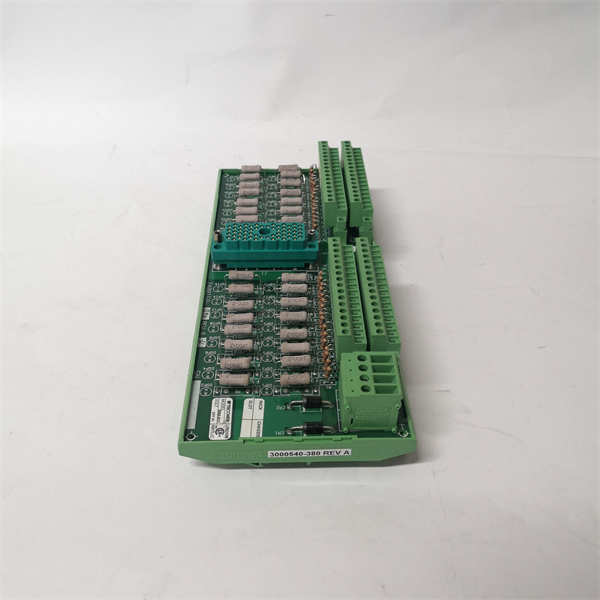

9566-8XX TRICONEX

application area

The TRICONEX 9566-8XX series termination panel is widely used in various critical industrial processes and safety related systems that have extremely high requirements for safety and availability.Its main application areas include:

Emergency Shutdown System(ESD):Used in industries such as oil and gas(refineries,petrochemical plants,offshore platforms,pipelines),chemical,and power(nuclear power,thermal power)to quickly and safely shut down abnormal process flows and prevent accidents from escalating.

Burner Management System(BMS):In industrial boilers and furnaces,it ensures safe start-up,operation,and shutdown of the combustion process to prevent explosion hazards.

Fire and Gas Detection System(FGS):Used for real-time monitoring of flammable gas leaks and fires,triggering alarms and automatic fire extinguishing/isolation measures to protect personnel and assets.

High Integrity Pressure Protection System(HIPPS):Provides independent and highly reliable overpressure protection in pipelines and pressure vessels to prevent equipment damage and medium leakage.

Turbine control and protection:In large gas and steam turbines,speed control,start/stop sequence,and emergency protection functions are implemented.

Nuclear power plant safety system:performs critical safety shutdown and safety injection functions in nuclear power plants to ensure reactor safety.

Other key process controls:Any safety function that requires SIL(Safety Integrity Level)certification to ensure continuous and safe production operations.

Related products

The products associated with the Triconex 9566-8XX series termination panel mainly include the Triconex Tricon™Series safety controllers,I/O modules,and related system components and software.

TRICONEX Tricon™Safety controller:9566-8XX serves as a termination panel,directly serving Tricon™The main processor and I/O module are the core of its entire safety control system.

TriconeX digital input module:9566-8XX termination panel is for Tricon™The 24/48 VDC digital input module of the system is designed,such as the 3700A digital input module.

TriconeX rack(Chassis):Tricon™The modules,including I/O modules and termination panels,are installed in specific racks.

Triconex communication module:used for Tricon™The system exchanges data with other control systems(DCS/SCADA)or maintenance workstations.

Triconex Triconex TSE(Trident Safety Executive)software:used for Tricon™Engineering software for system configuration,programming,diagnosis,and maintenance.

TriconeX Tricon Communications Module(TCM):Used to connect with the upper system and obtain diagnostic and event information.

On site sensors and equipment,such as various switches,buttons,limit switches,pressure/liquid level/temperature switches,etc.,whose signals are connected to the digital input module through 9566-8XX.

System power module:for Tricon™The controller and I/O module provide stable power supply.

Installation and maintenance

Preparation before installation:

Before installing the Tricon 9566-8XX termination panel,it is essential to ensure that the relevant Tricon is installed™The control system has been completely powered off and all necessary safety measures have been taken,such as tagging and locking(LOTO),to prevent electric shock or equipment damage.Please carefully read the installation manual and Tricon provided with the 9566-8XX module™System manual for detailed installation steps,wiring diagrams,environmental specifications,and torque requirements.

Physical installation:Install the termination panel in the appropriate position inside the control cabinet,ensuring it is securely fixed and leaving enough space for wiring and heat dissipation.

On site wiring:According to the detailed wiring diagram provided by Triconex,correctly connect the digital input signal line(24VDC/48VDC)on site to the 32 input points and shared power terminals(PWR+and PWR-)on the 9566-8XX panel.Ensure that all connecting wires are firm,reliable,comply with cable specifications,and properly grounded.

Connect to I/O module:Connect the 9566-8XX termination panel to Tricon via a dedicated cable™On the digital input module.

Grounding:Ensure the termination panel and the entire Tricon™The system is properly grounded according to Triconex’s specifications to ensure safety and anti-interference capability.

Maintenance suggestion:

The TRICONEX 9566-8XX series termination panel is known for its high reliability design and typically requires minimal on-site maintenance.However,in order to ensure its long-term stable operation and system security,it is recommended to regularly perform the following maintenance:

Visual inspection:Regularly inspect the appearance of the panel to ensure that there is no dust accumulation,loose connectors,physical damage,or aging wiring.Keep the interior of the control cabinet clean and dry to prevent moisture and corrosive substances from entering.

LED indicator monitoring:Pay attention to the LED indicator lights on the panel,which usually provide quick indications about fuse status or other faults,helping with preliminary diagnosis.

System diagnosis:Use Triconex’s TSE software or other system diagnostic tools to regularly check Tricon™The health status of the system and I/O modules,including the status of the digital input channels associated with 9566-8XX and any error logs.

Wiring inspection:Regularly inspect all on-site wiring terminals to ensure they are secure,reliable,and free from looseness or corrosion.

Environmental control:Ensure that the operating environment complies with Triconex’s specifications,avoiding excessive temperature,humidity,and dust.

Preventive replacement:Based on Triconex’s maintenance guidelines and equipment operating time,consider preventive replacement to maintain the highest level of system safety and reliability.

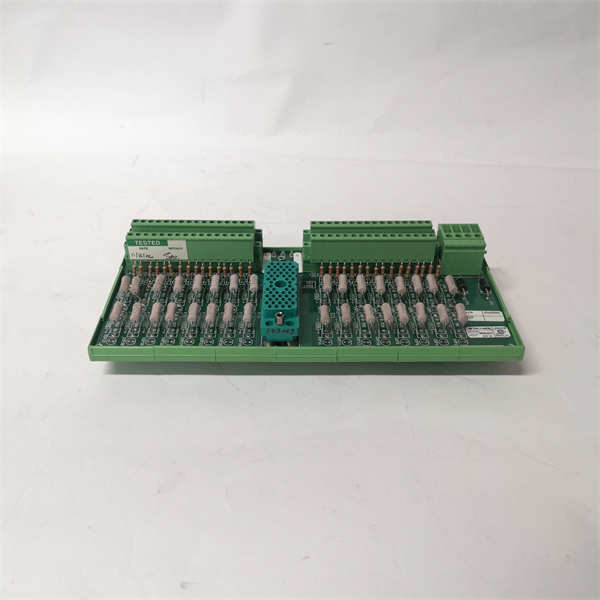

9566-8XX TRICONEX

Product Guarantee

TRICONEX(Schneider Electric)provides comprehensive quality assurance for its 9566-8XX series products,demonstrating a firm commitment to product performance and reliability.
