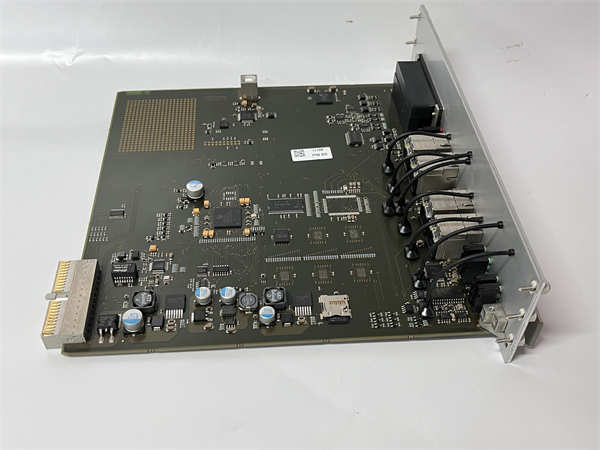

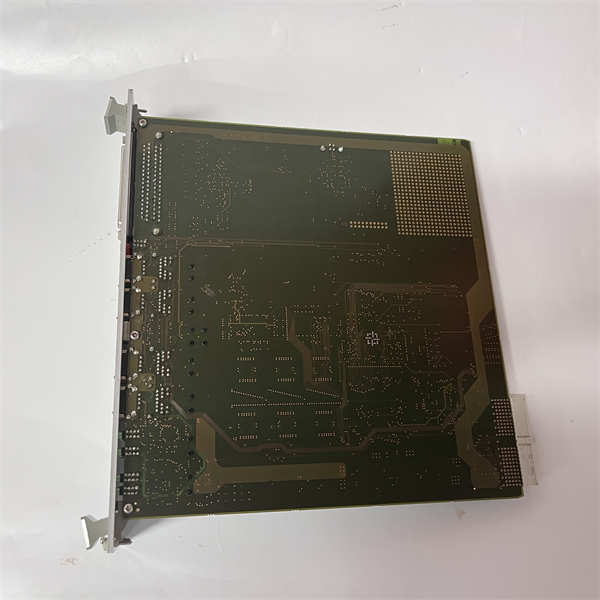

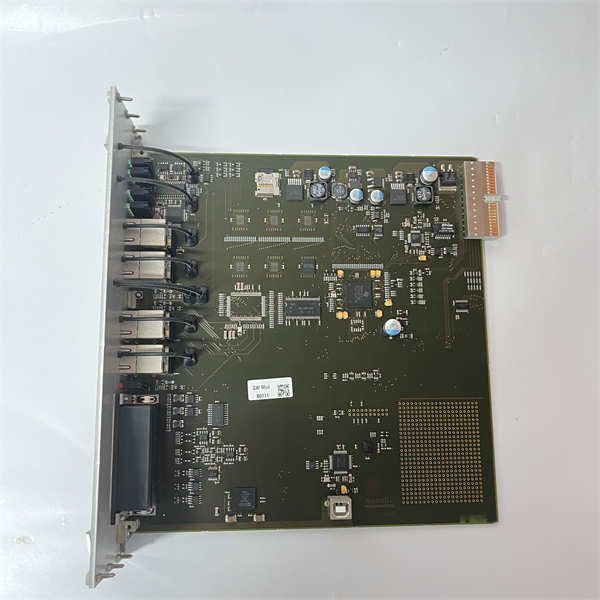

Autoliv Gtw.Mod.B0110 627697900B is a gateway module produced by Autoliv,a leading global supplier of automotive safety systems.Although Autoliv is mainly known for its car airbags and seat belts,this product model indicates that it is a critical electronic control unit(ECU)that plays a core role in data routing and communication protocol conversion in the complex electronic architecture of modern cars.Autoliv Gtw.Mod.B0110 627697900B aims to improve the efficiency and performance of automotive electronic systems by transmitting and converting data between different onboard networks such as CAN,LIN,FlexRay,or Ethernet,ensuring seamless communication between various sensors,actuators,and control units.

In vehicle safety systems,such as airbag systems,the role of gateway modules is particularly important.Autoliv Gtw.Mod.B0110 627697900B is capable of receiving data from multiple sources such as collision sensors and seat occupancy sensors,and efficiently forwarding it to the airbag control unit(ACU)or other related systems for processing.This ensures that all necessary safety functions can be activated promptly and accurately in the event of a collision.This module,with its advanced functionality and reliable structure,is designed to meet the real-time data processing and highly reliable communication requirements of critical automotive applications.The robust design of Autoliv Gtw.Mod.B0110 627697900B enables it to withstand harsh automotive environments,ensuring long-term reliability and durability.

Autoliv Gtw.Mod. B0110 627697900B

technical specifications

Product model:Gtw.Mod.B0110 627697900B

Manufacturer:Autoliv

Product type:Gateway Module

Main functions:data routing,communication protocol conversion,network isolation

Application areas:Automotive electronic systems,especially airbags and passive safety systems

Compatible bus type:CAN(Controller Area Network)

LIN:(Local Interconnect Network)

Possible support:FlexRay or Automotive Ethernet

Power input:12V DC(car power system)

Number of interfaces:Multiple bus interfaces(specific number depends on actual configuration)

Diagnostic function:Supports on-board diagnostic protocols(such as UDS on CAN)

Firmware Upgrade:Supports OTA(Over The Air)or offline firmware updates(presumably)

Working temperature:-40°C to+85°C(compliant with automotive grade standards)

Protection level:meets the protection requirements of automotive electronic products(such as IP level)

Certification standards:Compliant with automotive industry safety and EMC standards(such as ISO 26262,UNECE R10)

Shell material:sturdy engineering plastic or metal shell

Main features and advantages

The Autoliv Gtw.Mod.B0110 627697900B gateway module provides a series of key features and advantages in automotive electronic systems,making it an indispensable component for achieving advanced vehicle functions.

Efficient multi network communication management:Gtw.Mod.B0110 627697900B can manage and route data streams from different in vehicle networks(such as CAN,LIN,FlexRay,etc.).It acts as a’translator’between different communication protocols,ensuring seamless data exchange even between different bus speeds and data formats,which is crucial for integrating increasingly complex vehicle systems.

Enhanced system integration and flexibility:As a central data hub,this module simplifies the automotive electronic architecture.Through a unified interface and intelligent routing function,it makes it easier to integrate new features and sensors into existing systems,reducing development complexity and costs,and improving system scalability.

High reliability and safety:In the field of automotive safety,reliability is the primary consideration.Autoliv Gtw.Mod.B0110 627697900B has undergone rigorous testing to ensure stable operation under various harsh conditions such as temperature changes,vibrations,and electromagnetic interference.In critical applications such as airbags,their rapid response and data integrity are crucial for protecting the lives of passengers.

Built in diagnosis and fault management:Advanced gateway modules typically integrate powerful diagnostic functions that can monitor the health status of themselves and the connected networks.This helps to quickly identify and isolate system faults,simplify maintenance processes,and support remote diagnosis and OTA(Over The Air)updates of vehicles,thereby improving the overall maintainability of the vehicle.

Durable automotive grade design:Autoliv Gtw.Mod.B0110 627697900B uses automotive grade components and manufacturing processes to withstand extreme temperatures,humidity,vibrations,and impacts encountered during vehicle operation.This robustness ensures the reliable performance of the product throughout the entire vehicle lifecycle,meeting the stringent requirements of the automotive industry for component durability.

Autoliv Gtw.Mod. B0110 627697900B

application area

The Autoliv Gtw.Mod.B0110 627697900B gateway module,as a core component in automotive electronic architecture,is widely used in various modern vehicle systems that require complex communication and data routing.

In passive safety systems,such as airbag control units(ACUs)and seatbelt pre tensioning systems,Autoliv Gtw.Mod.B0110 627697900B is responsible for receiving data from collision sensors,accelerometers,seat occupancy sensors,and seatbelt buckle sensors,and quickly and accurately transmitting these critical information to the ACU to trigger corresponding protective measures.In the body electronics and comfort system,this module manages communication between different ECUs such as windows,door locks,lighting,wipers,and air conditioning systems to ensure timely response to user operations.

In the powertrain and chassis control system,although not the main control unit,the gateway module can help coordinate data exchange between the engine management system,transmission control unit,and braking system(such as ABS/ESP),supporting driving assistance functions.Autoliv Gtw.Mod.B0110 627697900B may also be integrated into information entertainment and remote information processing systems for routing data between in car multimedia units,navigation systems,and external connection modules.In the field of autonomous driving and advanced driver assistance systems(ADAS),gateway modules also play an important role in coordinating massive data from sensors such as radar,cameras,and LiDAR,and forwarding it to the central processing unit for fusion and decision-making.

Related products

The products associated with the Autoliv Gtw.Mod.B0110 627697900B gateway module are mainly other Autoliv or third-party automotive electronic control units and in vehicle network components.

Autoliv Airbag Control Unit(ACU):Gtw.Mod.B0110 627697900B serves as a gateway and is typically used in conjunction with Autoliv or other suppliers’ACUs to provide critical input data from various sensors.

Autoliv collision sensors/acceleration sensors:These sensors transmit collision information to the gateway module,which then forwards it to the airbag system.

Autoliv seat occupancy sensor/seatbelt buckle sensor:The data from these sensors may also be transmitted through the gateway module to determine the strategy for airbag deployment.

Body Control Module(BCM):Usually exchanges data with the gateway module to achieve collaborative electronic functions of the vehicle body.

Powertrain Control Module(PCM)/Engine Control Unit(ECU):The gateway module may play the role of data routing between these critical powertrain ECUs.

Vehicle mounted network bus components:including CAN transceivers,LIN transceivers,FlexRay controllers,and automotive grade Ethernet switching chips,which are the underlying hardware that make up the vehicle mounted network and work in conjunction with Gtw.Mod.B0110 627697900B.

On board diagnostic interface(OBD-II):Gateway modules typically support accessing diagnostic information through the OBD interface.

Automotive grade wiring harness and connectors:used to connect Gtw.Mod.B0110 627697900B to the vehicle’s power supply and various bus networks.

Installation and maintenance

Preparation before installation:Before installing the Autoliv Gtw.Mod.B0110 627697900B gateway module,make sure that the vehicle’s battery is disconnected and all necessary safety precautions have been taken to prevent electric shock or short circuit.Please carefully read the vehicle’s service manual and the installation instructions for the Gtw.Mod.B0110 627697900B module to understand the detailed installation location,wiring diagram,and torque requirements.Modules are usually installed in designated locations inside the vehicle,such as under the dashboard,in the center console,or under the seats,to ensure they are securely fixed and avoid vibration and impact.Strictly follow the wiring diagram to correctly connect the power line,grounding wire,and all onboard network buses(such as CAN-H,CAN-L,LIN,etc.)to the corresponding interfaces of the Autoliv Gtw.Mod.B0110 627697900B module.Ensure that all connectors are properly plugged in and out,and the locking mechanism is securely fastened to avoid looseness or poor contact.Before reconnecting the battery,be sure to carefully check all connections to ensure there are no wiring errors or short circuits.

Maintenance suggestion:Autoliv Gtw.Mod.B0110 627697900B,as an automotive grade electronic module,is usually designed as a maintenance free product that does not require daily intervention throughout the entire lifecycle of the vehicle.However,to ensure its long-term stable operation,it is recommended to visually inspect the physical status of the module during routine maintenance of the vehicle.Check for physical damage,corrosion,or loose connectors on the module casing.Ensure that there is no liquid immersion or dust accumulation around the module.If the vehicle experiences communication failures,network abnormalities,or warning lights related to gateway functions,it is necessary to diagnose Autoliv Gtw.Mod.B0110 627697900B using professional automotive diagnostic tools.This may include reading fault codes(DTCs),viewing data streams,and performing functional tests.In rare cases,firmware updates may be necessary through diagnostic tools or specific programs to address compatibility issues or improve performance.

Autoliv Gtw.Mod. B0110 627697900B

Product Guarantee

Autoliv provides comprehensive quality assurance for its Gtw.Mod.B0110 627697900B gateway module,demonstrating its steadfast commitment to product performance and reliability as a global leader in automotive safety systems.
