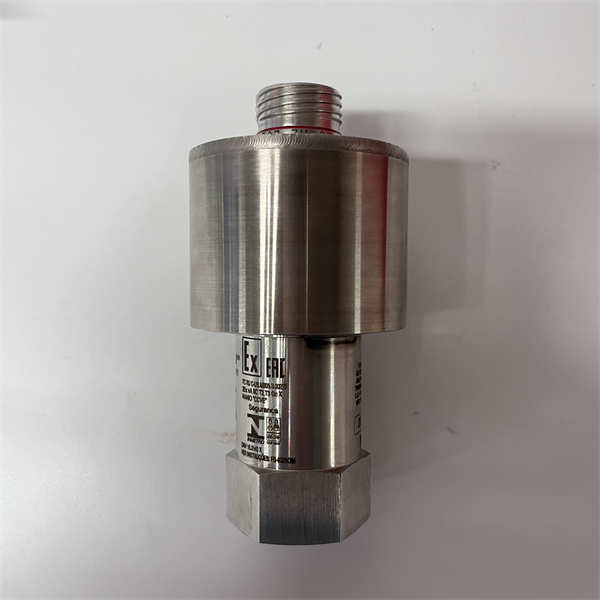

Description

GE RS-FS-9001 362A1052P404 is a flame detector/scanner developed by General Electric(GE)specifically designed for industrial gas turbines and combustion systems.This product represents GE’s advanced level in combustion monitoring technology,aiming to provide high-precision and fast response flame state monitoring to ensure the safe and efficient operation of gas turbines.As a key component of the gas turbine combustion management system(BMS),GE RS-FS-9001 362A1052P404 is capable of real-time detection of flame presence,flame intensity,and stability,and providing necessary data output.

Traditional flame detectors may encounter challenges in applications such as fuel atomization,steam or water injection,as these factors absorb ultraviolet radiation.To overcome this limitation,RS-FS-9001 362A1052P404 adopts silicon carbide(SiC)photodiode technology.This SiC photodiode is more sensitive to longer wavelengths of ultraviolet radiation generated by flames,which can better penetrate fuel mist or water vapor,significantly improving the sensitivity and reliability of flame detection.This detector has the characteristics of low voltage operation,4-20mA standard analog output,and fast response.It can quickly issue an alarm when the flame goes out,effectively preventing accidents and improving system availability.GE RS-FS-9001 362A1052P404 is a sturdy,durable,and easy to install industrial grade sensor that can adapt to harsh gas turbine operating environments.

technical specifications

Product model:RS-FS-9001 362A1052P404

Manufacturer:General Electric(GE)/Reuters Stokes

Product Type:Flame Detector/Flame Scanner

Detection technology:Silicon carbide(SiC)photodiode

Detection spectrum:ultraviolet(UV),sensitive to longer wavelength UV radiation

Output signal:4-20 mA analog output

Supply voltage:12-30 VDC(nominal 24 VDC)

Response time:<25>

Process pressure:up to 400 PSI(2.8 MPa)

Sensitivity:5 mA 1×10^10 photons/square inch/second 310 nm

Mechanical interface:3/4″NPT internal thread

Electrical connector:MIL-C-38999 Series III size 15(5-pin)

Shell material:AISI 304 stainless steel(sealed and filled with argon gas)

Window material:Sapphire

Working temperature:-30°C to+150°C(-20ºF to+300ºF);with cooling system up to+235°C(+455ºF)

Protection level:Class I,Div 2,Groups A,B,C,D T3;Class I,Zone 2 AEx nA IIC T3;Ex nA IIC Gc T3(ATEX/IECEx certified)

Main features and advantages

The GE RS-FS-9001 362A1052P404 flame detector,with its innovative technology and robust design,has demonstrated significant features and advantages in the field of industrial combustion monitoring

High sensitivity and excellent fuel adaptability:RS-FS-9001 362A1052P404 adopts advanced silicon carbide(SiC)photodiode technology,which has extremely high sensitivity to long wavelength ultraviolet rays generated by flames.This enables it to effectively penetrate interferences such as fuel mist,steam,or water jets,ensuring reliable flame detection in various industrial fuel applications(such as natural gas,kerosene,diesel,fuel and their mixtures)and low nitrogen oxide(Low NOx)burner applications.

Fast response and high safety:This detector has a fast response time(less than 25 milliseconds)and can quickly respond when the flame goes out.This rapid response capability is crucial for emergency shutdown and safety management of high-risk equipment such as gas turbines.It can trigger fuel cut-off in a timely manner,effectively prevent potential catastrophic events,and significantly improve operational safety.

Low maintenance and long-life design:GE RS-FS-9001 362A1052P404 adopts a sturdy welded structure and a sealed stainless steel shell filled with argon gas,effectively preventing component decomposition and external environmental erosion.Compared to traditional Geiger Miller tubes,its SiC photodiodes are more durable.Combined with optimized cooling characteristics(supporting water or air cooling),they reduce the thermal impact on sensitive electronic components,extend the service life of the equipment,and thus reduce maintenance requirements and related costs.

Wide dynamic range and flexible output:RS-FS-9001 362A1052P404 can detect flames from low to high intensity lighting range,providing a wide dynamic range.It outputs standard 4-20mA analog signals,which are easy to integrate with various combustion management systems,PLCs,or DCS,and support low voltage operation without the need for special wiring or explosion-proof conduits,simplifying installation and system integration.

Compliant with stringent industrial standards:This flame detector complies with international hazardous area certification standards such as ETL,ATEX,and IECEx(Class I Division 2,Zone 2),ensuring its safe operation in potentially explosive environments.This enables GE RS-FS-9001 362A1052P404 to meet the demanding working environment requirements of gas turbines and provide high reliability.

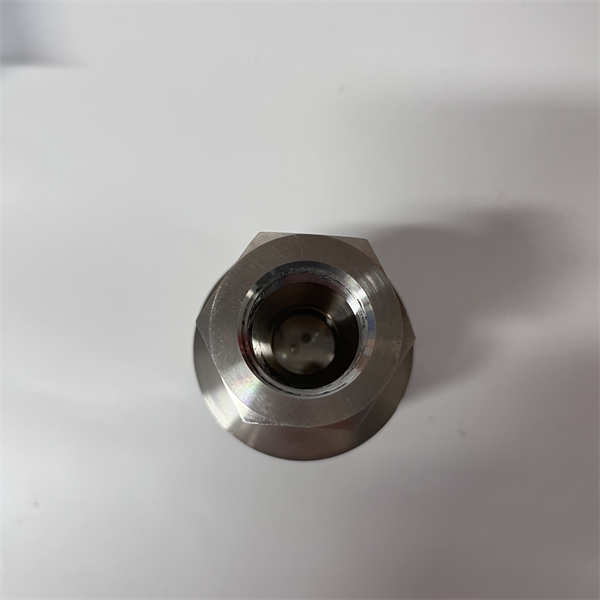

RS-FS-9001 362A1052P404 GE

application area

The GE RS-FS-9001 362A1052P404 flame detector is mainly used in the industrial field for precise and safe monitoring of combustion processes,especially in high temperature,high pressure,and various fuel combustion scenarios.

In the field of gas turbines and industrial boilers,RS-FS-9001 362A1052P404 is the core safety and control component.It is widely installed in the combustion chambers of various models of GE land-based and sea based gas turbines(including Frame series,LM series)for real-time monitoring of the presence,intensity,and stability of combustion flames.This is crucial for the start-up,shutdown protection during operation,and optimization of combustion efficiency of gas turbines.

In the refining and petrochemical industries,this detector can be used to monitor the flames of combustion equipment such as heating furnaces,cracking furnaces,and torches,ensuring the safety and continuity of the production process.In the power production industry,whether it is industrial boilers and power plants using natural gas,oil,or blended fuels,GE RS-FS-9001 362A1052P404 can provide reliable flame detection,support burner management system(BMS)and furnace safety interlock system(FSSS),and prevent unburned fuel accumulation from causing explosions.

In addition,RS-FS-9001 362A1052P404 is also suitable for other industrial applications that require precise flame monitoring,such as industrial kilns,drying ovens,and incinerators,ensuring stable control of the combustion process and the safety of operators.Its high temperature resistance,vibration resistance,and multi fuel adaptability make it an ideal flame monitoring solution in these harsh industrial environments.

Related products

The products associated with GE RS-FS-9001 362A1052P404 flame detector mainly include GE’s gas turbine control system,supporting cables and cooling systems,as well as other flame detector models as substitutes.

GE Mark V/Mark VI/Mark Vie and other gas turbine control systems:RS-FS-9001 362A1052P404 serves as a front-end sensor,providing flame status data directly to these control systems for combustion management and safety interlocking.

GE 362A1053Pxxx series flame detector cable:a dedicated two-wire signal cable used to connect RS-FS-9001 362A1052P404 to junction boxes or control systems,such as 362A1053P031(60 feet),362A1053P036(120 feet).

Water cooling coil/air cooling kit:cooling accessories such as GE part number 353B3490G001 or Reuter Stokes RS-E2-0259,used to expand the operating temperature range of GE RS-FS-9001 362A1052P404 in high temperature environments.

GE Flame Scanner Module:such as RS-FMS-1002-002,used in conjunction with RS-FS-9001 362A1052P404 to convert 4-20mA signals into other inputs required by GE control systems.

Gas turbine burner components:including fuel nozzles,burner liners,etc.,they are key parts for flame generation and closely related to the function of flame detectors.

Alternative models/upgraded products:such as Reuter Stokes RS-FS-9009-03(FTD 325),which is a”dry”flame detector that does not require cooling and can be used as an upgrade option for RS-FS-9001 362A1052P404 in certain applications.

Installation and maintenance

Preparation before installation:Before installing the GE RS-FS-9001 362A1052P404 flame detector,it is essential to ensure that the gas turbine or burner system has been completely shut down,powered off,and cooled to a safe temperature,while taking all necessary safety precautions such as tagging and locking to prevent accidental start-up.Please carefully read the operation and maintenance manual of RS-FS-9001 362A1052P404 to understand the detailed installation steps,mechanical dimensions,electrical wiring diagrams,and environmental requirements.Install the RS-FS-9001 362A1052P404 detector securely in the combustion chamber or designated observation port through its 3/4″NPT interface,ensuring that its optical window can directly”see”the flame and there are no obstacles blocking the line of sight.Ensure good mechanical connection sealing to prevent gas leakage from the combustion chamber.According to the wiring diagram provided by GE,correctly connect the two-wire power and signal cables to the detector and control system(or junction box).If the ambient temperature may exceed the maximum operating temperature of the detector(150°C),a water-cooled coil or air-cooled kit must be installed,and the supply of cooling medium(such as water temperature and flow rate)must be ensured.

Maintenance suggestion:GE RS-FS-9001 362A1052P404 flame detector is a highly reliable product,but regular inspection and maintenance are crucial to ensure its continuous and accurate operation.Regularly visually inspect and clean the optical window of the detector,removing any accumulated dust,oil,or combustion products to ensure unobstructed light paths and avoid false alarms or omissions.Check for physical damage,corrosion,or loose connectors on the detector casing.If a cooling system is used,regularly check the flow rate and temperature of the cooling medium,and ensure that there are no leaks or blockages in the cooling pipelines.Use a gas turbine control system or specialized diagnostic tool to monitor the 4-20mA output signal of RS-FS-9001 362A1052P404,observe the trend of flame intensity changes,and check for any abnormal fluctuations.It is recommended to conduct regular functional tests based on the manufacturer’s recommendations or operating hours to confirm whether the detector’s response time when the flame is extinguished meets specifications.Follow the maintenance cycle and procedures provided by GE to ensure optimal performance and lifespan of the detector.

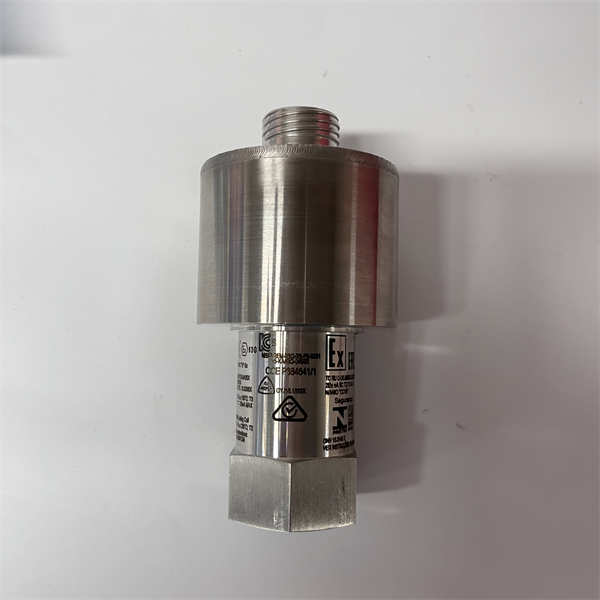

RS-FS-9001 362A1052P404 GE

Product Guarantee

General Electric(GE)provides comprehensive quality assurance for its RS-FS-9001 362A1052P404 flame detector,demonstrating GE’s commitment to product performance and safety as an industrial technology giant.
