Description

WOODWARD 5233-2089 is an Electro Hydraulic Servo Valve produced by Woodward Inc.,specifically designed for precise fuel metering and actuator control in gas turbines,steam turbines,and industrial diesel engines.As a key component of Woodward’s high-performance control solutions,WOODWARD 5233-2089 represents its profound expertise in mechanical hydraulic and electronic control integration.This servo valve can accurately convert weak electrical signals from electronic controllers into powerful hydraulic outputs,thereby achieving fast,high-precision,and repeatable positioning control of fuel valves,steam valves,or other hydraulic actuators.

5233-2089 is typically used as an interface component for Woodward digital control systems(such as NetCon,MicroNet,etc.),providing precise fuel flow regulation or valve position control for these systems to optimize the performance,efficiency,and emissions of turbines or engines.It ensures high dynamic response and excellent anti pollution capability through its two-stage or three-stage valve design.WOODWARD 5233-2089 is renowned for its outstanding reliability,high precision,and adaptability to harsh operating environments.It is an ideal choice for key equipment in fields such as power production,oil and gas,marine propulsion,and industrial processes,and is crucial for ensuring the safe,stable,and efficient operation of these high-value assets.

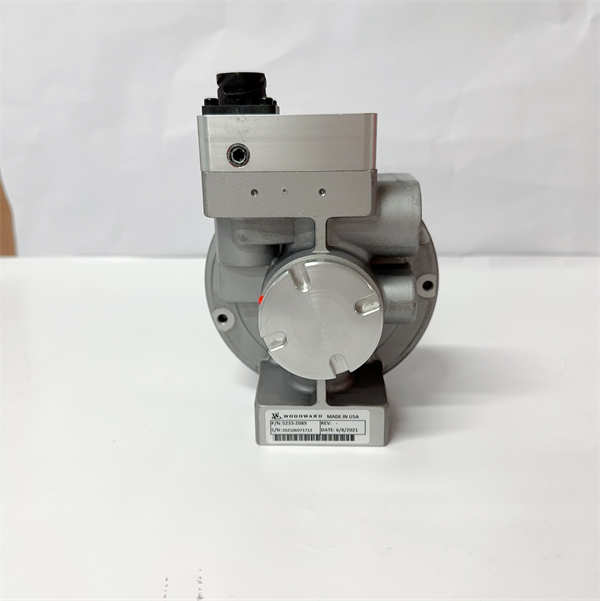

5233-2089 WOODWARD

technical specifications

Product Model:5233-2089

Manufacturer:WOODWARD Inc

Product type:Electro Hydraulic Servo Valve

Application:Fuel control for gas/steam turbines,actuator positioning,industrial engines

Valve type:two-stage or three-stage servo valve(depending on internal configuration)

Rated flow:to be checked(depending on valve port size and pressure difference)

Input signal:Differential current input(e.g.+/-10 mA or+/-20 mA)

Delay:<1>

Linearity:<5>

Zero bias:adjustable

Filtration requirement:10 microns or finer,absolute filtration

Interface method:Hydraulic interface(ISO standard or Woodward specific)

Electrical interface:MS type circular connector(or other industry standard connectors)

Working temperature:-20°C to+70°C(typical value)

Material:Aviation grade aluminum or other corrosion-resistant materials

Main features and advantages

WOODWARD 5233-2089 electro-hydraulic servo valve stands out for its outstanding performance and reliability in critical industrial applications,and its core features and advantages make it the preferred choice in the field of precision hydraulic control.

High precision and high dynamic response:WOODWARD 5233-2089 can convert small electrical signals into precise hydraulic flow or pressure outputs,achieving fast and linear control of hydraulic actuators.This high precision and high dynamic response capability is crucial for the precise adjustment of fuel valves in gas turbines and steam turbines,ensuring stable operation and fast response of equipment during transient load changes,thereby optimizing the performance and efficiency of gas turbines or steam turbines.

Excellent reliability and durability:Woodward products are known for their industrial grade durability,and 5233-2089 is no exception.This servo valve adopts high-quality materials and precision manufacturing processes,and can withstand harsh industrial environments,including vibration,temperature changes,and pollution.Its design reduces wear and failure,ensuring stability and longer service life during long-term operation,thereby reducing maintenance costs and unplanned downtime.

Excellent anti pollution ability:Servo valves require extremely high cleanliness of hydraulic oil.WOODWARD 5233-2089 is usually designed with anti pollution characteristics in mind,and through precise internal filtering and valve core/sleeve matching,the impact of particulate matter on valve performance is minimized to the greatest extent possible.This helps to improve the stability and lifespan of the system,ensuring reliable operation even in situations where the hydraulic system may face some contamination.

Seamless integration with Woodward digital control systems:5233-2089 is specifically designed to work in conjunction with Woodward’s digital control systems such as MicroNet and NetCon series.This integration ensures optimal control performance and diagnostic capabilities,enabling the entire control loop to respond quickly and provide detailed operational data,facilitating system debugging and troubleshooting.

Wide control range and precise flow control:WOODWARD 5233-2089 has a wide flow control range,which can accurately control hydraulic oil from very small to large flow rates.This is crucial for precise fuel metering of gas turbines to adapt to combustion requirements under different loads,as well as precise control of steam turbine valve positions to optimize power output and efficiency.

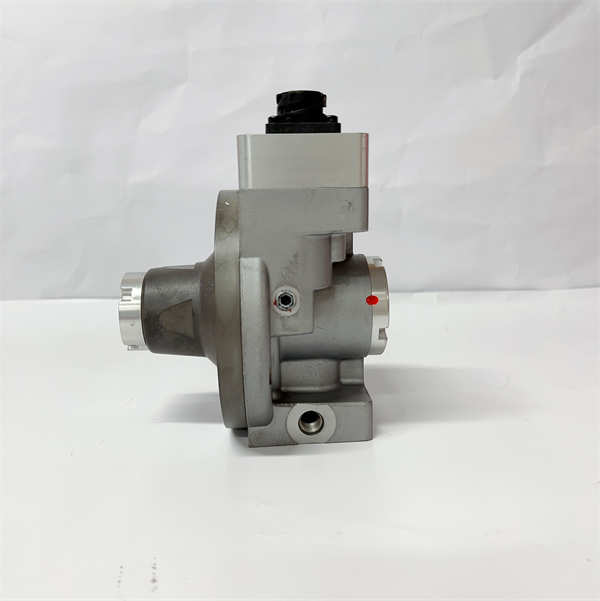

5233-2089 WOODWARD

application area

WOODWARD 5233-2089 electro-hydraulic servo valve plays a core role in industrial fields with extremely high requirements for hydraulic control accuracy and performance,thanks to its high precision,high response speed,and excellent reliability.

In the power production industry,5233-2089 is a key component in the fuel systems and speed control systems of gas turbines and steam turbines.It is used for precise control of the opening and closing of fuel metering valves,steam regulating valves,shutdown valves,and bypass valves,thereby achieving precise control of turbine speed,power output,and exhaust temperature.This is crucial for ensuring the stable operation of the power grid,the economic efficiency of the units,and the safety of emergency shutdowns.

In the oil and gas industry,this servo valve is applied in fuel control systems for large compressor driven turbines,as well as actuator control for oil pipeline pumping stations.WOODWARD 5233-2089 ensures the stable operation and efficient transportation of these high-value devices,while providing fast and reliable shutdown protection in emergency situations.

In addition,WOODWARD 5233-2089 is widely used for fuel injection control of large diesel engines in ship propulsion systems,as well as other industrial automation equipment that requires high-performance,high-precision hydraulic positioning and flow control,such as test benches,servo drives,and heavy machinery that require complex hydraulic execution.Its high dynamic performance and reliability in harsh environments make it an ideal choice for these critical applications.

Related products

The products associated with WOODWARD 5233-2089 electro-hydraulic servo valve mainly include Woodward’s digital control system,various hydraulic actuators,and matching hydraulic system components.

WOODWARD MicroNet/NetCon series digital control system:As the upper controller of 5233-2089,it sends electrical signal instructions to servo valves to form a complete closed-loop control system,such as WOODWARD MicroNet Plus.

WOODWARD Fuel Metering Valves:5233-2089 typically drive such valves to precisely control the fuel flow into gas turbines or engines,such as the WOODWARD ELT series actuators.

WOODWARD Hydraulic actuators:including various hydraulic cylinders,rotary actuators,or turbine speed control actuators,which receive hydraulic power and control signals through 5233-2089 servo valves.

WOODWARD offers various types of servo valves:Woodward provides multiple types of servo valves,such as 505 series servo valves,500 series servo valves,etc.,which may have similar functions to 5233-2089 but different flow rates or interfaces.

Hydraulic pump station and oil filtration system:Provide clean and stable hydraulic oil for 5233-2089 to ensure its normal operation and long service life.Hydraulic oil filter element is a key consumable.

Pressure sensors and displacement sensors:used to provide feedback on hydraulic system pressure or actuator position,form a control circuit,and work in conjunction with Woodward controllers and 5233-2089.

Woodward Solenoid Valves:Typically used for on-off control or safety shutdown functions in hydraulic systems as auxiliary control components.

Woodward programming software(such as GAP)™)：Used for programming and configuring Woodward digital controllers,which in turn control 5233-2089 servo valves.

Installation and maintenance

Preparation before installation:Before installing the WOODWARD 5233-2089 electro-hydraulic servo valve,it is essential to ensure that the relevant hydraulic system has been fully depressurized and all necessary safety precautions have been taken,such as disconnecting electrical connections and mechanical locks,to prevent accidental start-up or fluid ejection.Please carefully read Woodward’s 5233-2089 technical manual and installation guide to understand detailed installation steps,hydraulic interface specifications,electrical wiring diagrams,and environmental requirements.When installing the servo valve,ensure that its installation surface is clean,flat,and aligned with the interface of the hydraulic manifold.Use bolts of the correct type and torque to secure the servo valve in place,ensuring good sealing.Connect the electrical signal cable to the designated connector of the servo valve,ensuring correct polarity and following the wiring specifications of the Woodward controller.All hydraulic pipeline connections must be clean and free of contamination,and ensure good thread sealing to prevent leakage.Perform final electrical and hydraulic connection checks before powering on and applying pressure.

Maintenance suggestion:WOODWARD 5233-2089 electro-hydraulic servo valve is a precision hydraulic control component,and regular preventive maintenance is crucial to ensure its long-term high-performance operation.The core of maintenance is to maintain the cleanliness of hydraulic oil.Regularly check the pollution level of hydraulic oil and replace the hydraulic oil filter element according to the manufacturer’s recommended cycle(usually requiring absolute filtration of 10 microns or finer).The cleanliness of hydraulic oil is the key to extending the service life of servo valves.Regularly inspect the servo valve and its connections for signs of leakage,as well as electrical cables for wear or loose connections.Monitor the operating status,input current,output flow,or actuator position feedback of 5233-2089 through Woodward’s controllers or diagnostic tools to identify potential performance degradation or faults.Avoid improper disassembly or adjustment of servo valves,as their internal precision components are highly sensitive to contamination and improper operation.If WOODWARD 5233-2089 experiences malfunctions or significant performance degradation,it is recommended that it be diagnosed,repaired,or replaced by professionals trained by Woodward.

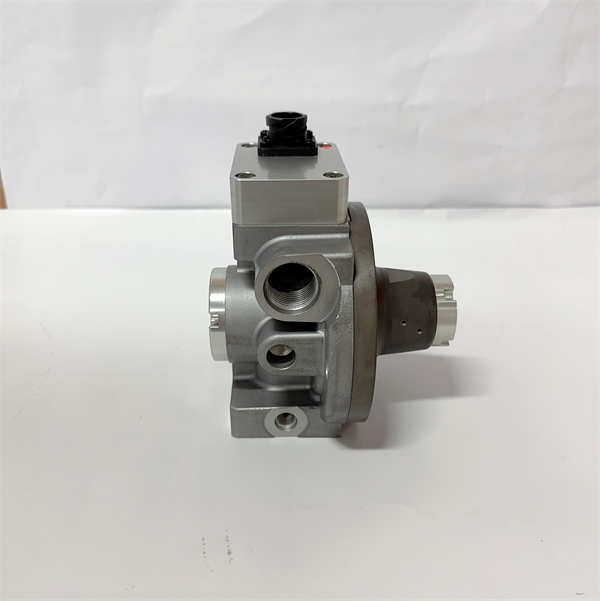

5233-2089 WOODWARD

Product Guarantee

Woodward Inc.provides comprehensive product assurance for its 5233-2089 electro-hydraulic servo valve,demonstrating its unwavering commitment to product excellence and customer satisfaction as a global leader in energy control solutions.
