Description

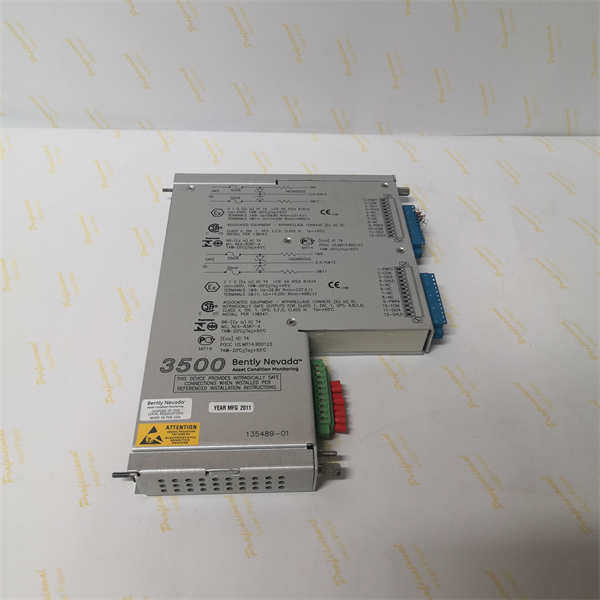

BENTLY 135489-01 is an I/O module that is part of the BENTLY Nevada 3500 series mechanical condition monitoring system.It is a 4-channel module with internal barriers and internal terminations,accepting inputs from the preamplifier and seismic sensors,and can be used to monitor the status parameters of large rotating machinery.

Product parameters:

Frequency range:10Hz to 10kHz.

Sensitivity:100mV/g.

Temperature range:-40°C to+125°C.

Number of channels:4.

Working voltage:usually 24V.

Output frequency:

The specific value is not specified,but it is mentioned to be related to vibration monitoring,and it is speculated to be related to the input signal frequency and monitoring function.

Product specifications:As a module of the 3500 system,it needs to be used in conjunction with the 3500 series framework and other modules,and the physical specifications such as size need to be adapted to the corresponding framework.Equipped with internal barriers and terminations,it provides electrical isolation and facilitates installation and connection,reducing external interference.

Series:3500/42 series.

features:

Provide 4-channel monitoring function,which can simultaneously monitor multiple signal sources.

Equipped with internal barriers,it enhances the isolation between the internal circuits of the module and external connections,improving system safety and reliability.

Internal termination design,without the need for additional external wiring,simplifies the installation process.

It is compatible with various sensors,including preamplifier sensors,acceleration sensors,and speed sensors,and can adapt to different monitoring needs.

Multiple monitoring functions,such as radial vibration,thrust position,eccentricity,differential expansion,acceleration,and velocity,can be achieved through programming with 3500 rack configuration software.

effect:

Real time collection of relevant status signals of rotating machinery,such as vibration,displacement,etc.,and preliminary processing and conversion,providing accurate data for subsequent analysis and decision-making.

Continuously compare the current machine vibration with the configured alarm set point,and activate the alarm when it exceeds the set value,promptly informing the operator of any equipment abnormalities and providing mechanical protection.

Provide basic machine vibration information to operators and maintenance personnel,helping them understand the operation status of equipment for preventive maintenance and troubleshooting.

Purpose:Mainly used for status monitoring of large rotating machinery in the industrial field.By monitoring and analyzing various parameters during the operation of the machinery,potential faults and hidden dangers can be detected in a timely manner,avoiding production interruptions and safety accidents caused by equipment failures,and achieving reliable operation and efficient maintenance of the equipment.

Application areas:

Widely used in industries such as petroleum,chemical,power,metallurgy,papermaking,and textiles,suitable for monitoring large rotating machinery such as steam turbines,water turbines,fans,compressors,turbine expanders,electric motors and generators,excitation machines,gearboxes,and water pumps.
